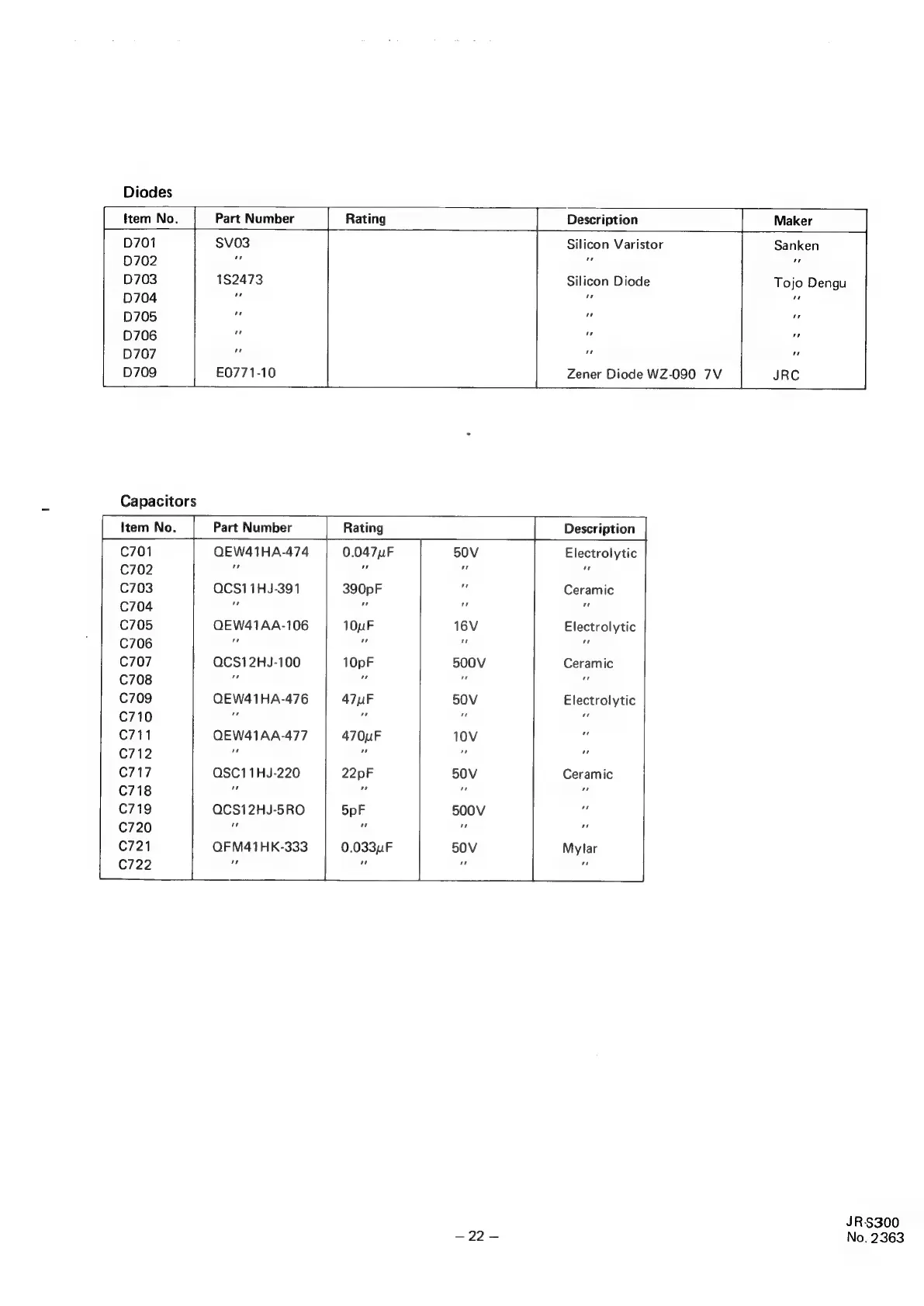

JVC JR-S300 Service Manual

Diodes
99°=
item No. Part Number Rating Description 5 oe Maker
D701 $V03 Silicon Varistor Sanken
D702
of
"
"
D703
182473
Silicon
Diode
Tojo
Dengu
D704
ad
”"
*
D705
id
"
ve
D706
we
”
i
D707
ne
"
ii
D709 E0771-10 | Zener Diode WZ-090 7V JRC
Capacitors
Item No. Part Number Rating | Description
C701 QEW41HA-474 0.047 uF 50V Electrolytic
C702 7 a " u
C703 QCS11HJ-391 390pF “is Ceramic
C704 - ‘o m ay
C705 QEW41AA-106 10uF 16V Electrolytic
C706 i. us " a
C707 QCS12HJ-100 10pF 500V Ceramic
C708 : " i ue
C709 QEW41HA-476 47 uF 50V Electrolytic
C710 ee a "
C711 QEW41AA-477 470uF 10V *
C712 re 7 i
C717 QSC11HJ-220 22pF 50V Ceramic
C718 7 Hv a ”
C719 QCS12HJ-5RO 5pF 500V o
C720 ad Hi
C721 OFM41HK-333 0.033uF 50V Mylar
C722 if | ef oe "
neers it
JRS300
No. 2363
