JVC JR-S300 Service Manual

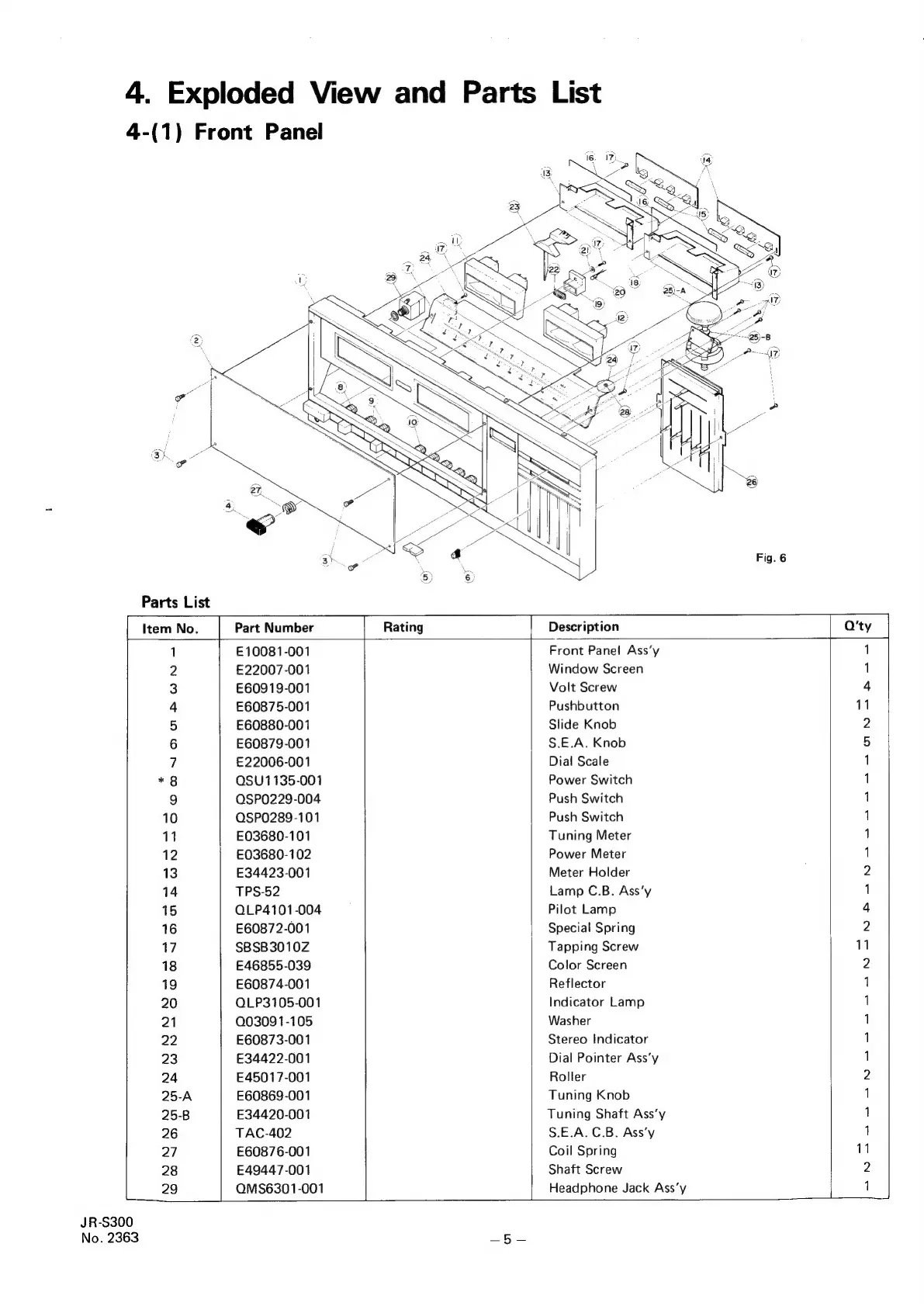

4. Exploded View and Parts List
4-(1) Front Panel
Parts List
Item No. Part Number
1 £10081-001
2 £22007-001
3 E60919-001
4 E£60875-001
5 E60880-001
6 E60879-001
7 £22006-001
* 8 QSU1135-001
9 QSP0229-004
10 QSP0289-101
11 E03680-101
12 E03680-102
13 E34423-001
14 TPS-52
15 QLP4101-004
16 £60872-001
17 SBSB3010Z2
18 E46855-039
19 E60874-001
20 OLP3105-001
21 Q03091-105
22 E60873-001
23 E34422-001
24 E45017-001
25-A E60869-001
25-B E34420-001
26 TAC-402
27 E60876-001
28 E49447-001
29 QMS6301-001
JR-S300
No. 2363
Description
Front Panel Ass‘y
Window Screen
Volt Screw
Pushbutton
Slide Knob
S.E.A. Knob
Dial Scale
Power Switch
Push Switch
Push Switch
Tuning Meter
Power Meter
Meter Holder
Lamp C.B. Ass’y
Pilot Lamp
Special Spring
Tapping Screw
Color Screen
Reflector
Indicator Lamp
Washer
Stereo Indicator
Dial Pointer Ass’y
Roller
Tuning Knob
Tuning Shaft Ass’y
S.E.A. C.B. Ass’y
Coil Spring
Shaft Screw
Headphone Jack Ass‘y
Q'ty
=
=
|] MO) — = = = AY SB mB HSH SH HN HK NY Fs HH HH SP HSH SB HaBO4NnNHesB KH aH
=
L
