JVC JR-S300 Service Manual

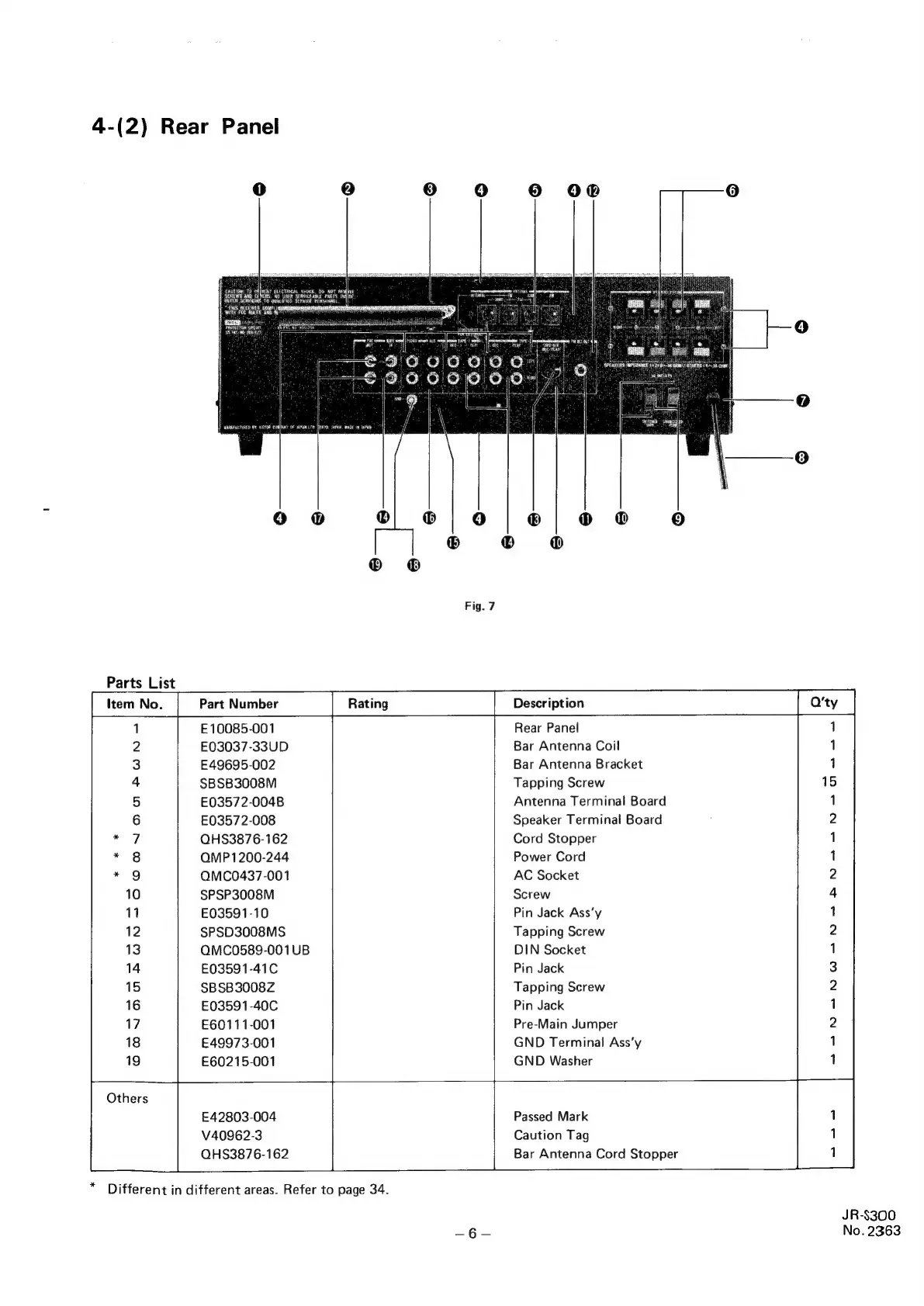

4-(2) Rear Panel
0 12)
Parts List
Part Number
E10085-001
E03037-33UD
E49695-002
SBSB3008M
E03572-004B8
E0357 2-008
QHS3876-162
QMP1200-244
QMC0437-001
SPSP3008M
E03591-10
SPSD3008MS
QMC0589-001 UB
E03591-41C
SBSB3008Z
E03591-40C
E60111-001
E49973-001
E60215-001
Fig. 7
Rear Panel
Bar Antenna Coil
Bar Antenna Bracket
Tapping Screw
Antenna Terminal Board
Speaker Terminal Board
Cord Stopper
Power Cord
AC Socket
Screw
Pin Jack Ass’y
Tapping Screw
DIN Socket
Pin Jack
Tapping Screw
Pin Jack
Pre-Main Jumper
GND Terminal Ass’y
GND Washer
Others
E42803-004
V40962-3
QHS3876-162
Different in different areas. Refer to page 34.
Passed Mark
Caution Tag
Bar Antenna Cord Stopper
RB Sa NO BY WAN BRN BAN AO Ts = a=
JR-$300
No. 2363
