JVC JR-S300 Service Manual

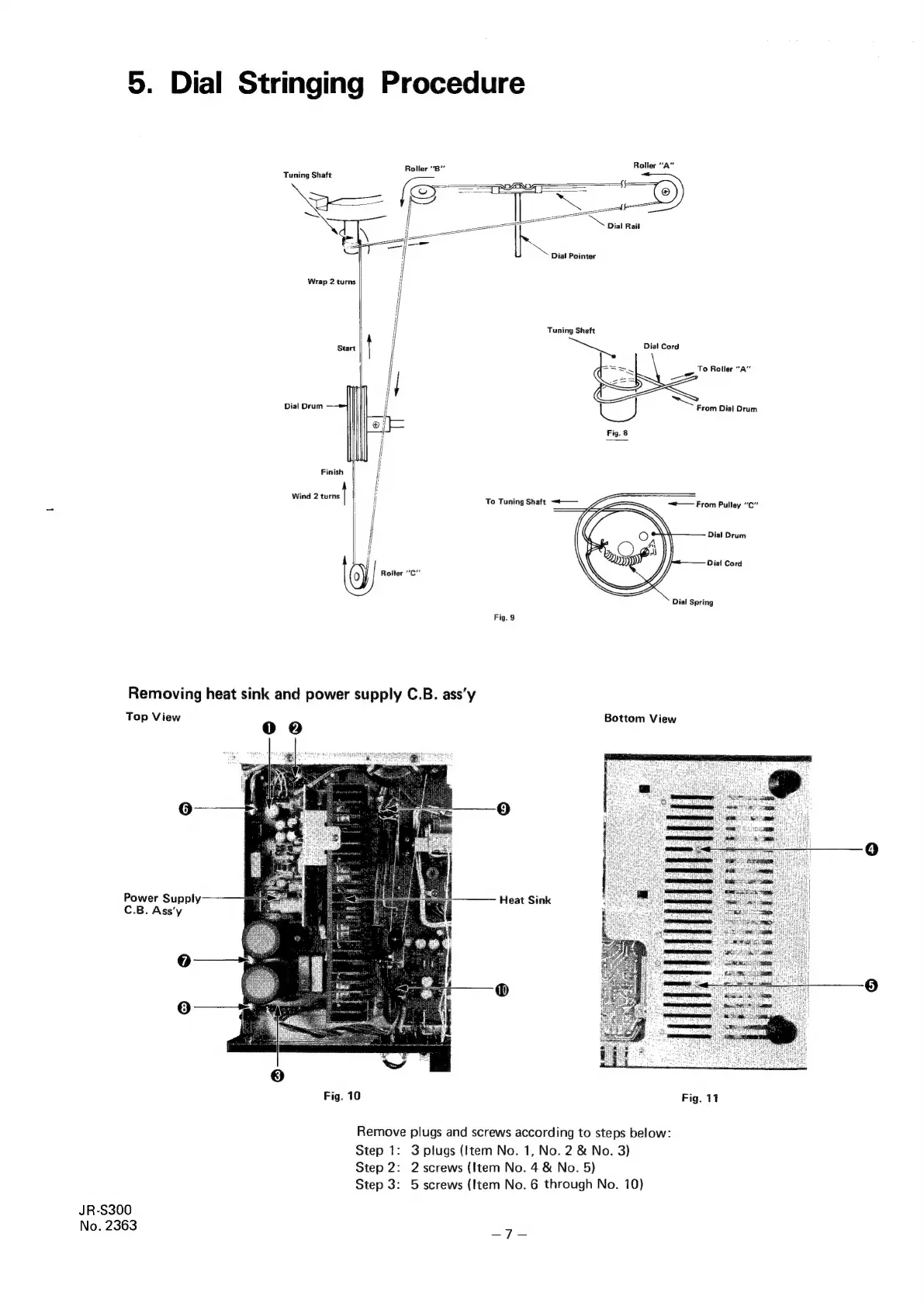

5. Dial Stringing Procedure
Roller “A”
Roller “B”
Tuning Shaft
a?
™ —
Nth. eee IK NS Dial Rail
= H Dial Pointer
Wrap 2 turns
Tuning Shaft
Dial Cord
To Roller “A”
L J ae From Dial Drum
Dial Drum
Finish
Wind
2
seh
H
ii
To
Tuning
Shaft
~«——
Roller “°C”
~+——- From Pulley “C”
Dial Drum
Dial Cord
Dial Spring
Fig. 9
Removing heat sink and power supply C.B. ass’y
Top
View
Bottom
View
0 9@e
19)
Heat Sink
®
Fig. 10 Fig. 11
Remove plugs and screws according to steps below:
Step 1: 3 plugs (Item No. 1, No. 2 & No. 3)
Step 2: 2 screws (Item No. 4 & No. 5)
Step 3: 5 screws (Item No. 6 through No. 10)
JR-S300
No. 2363 Sips
