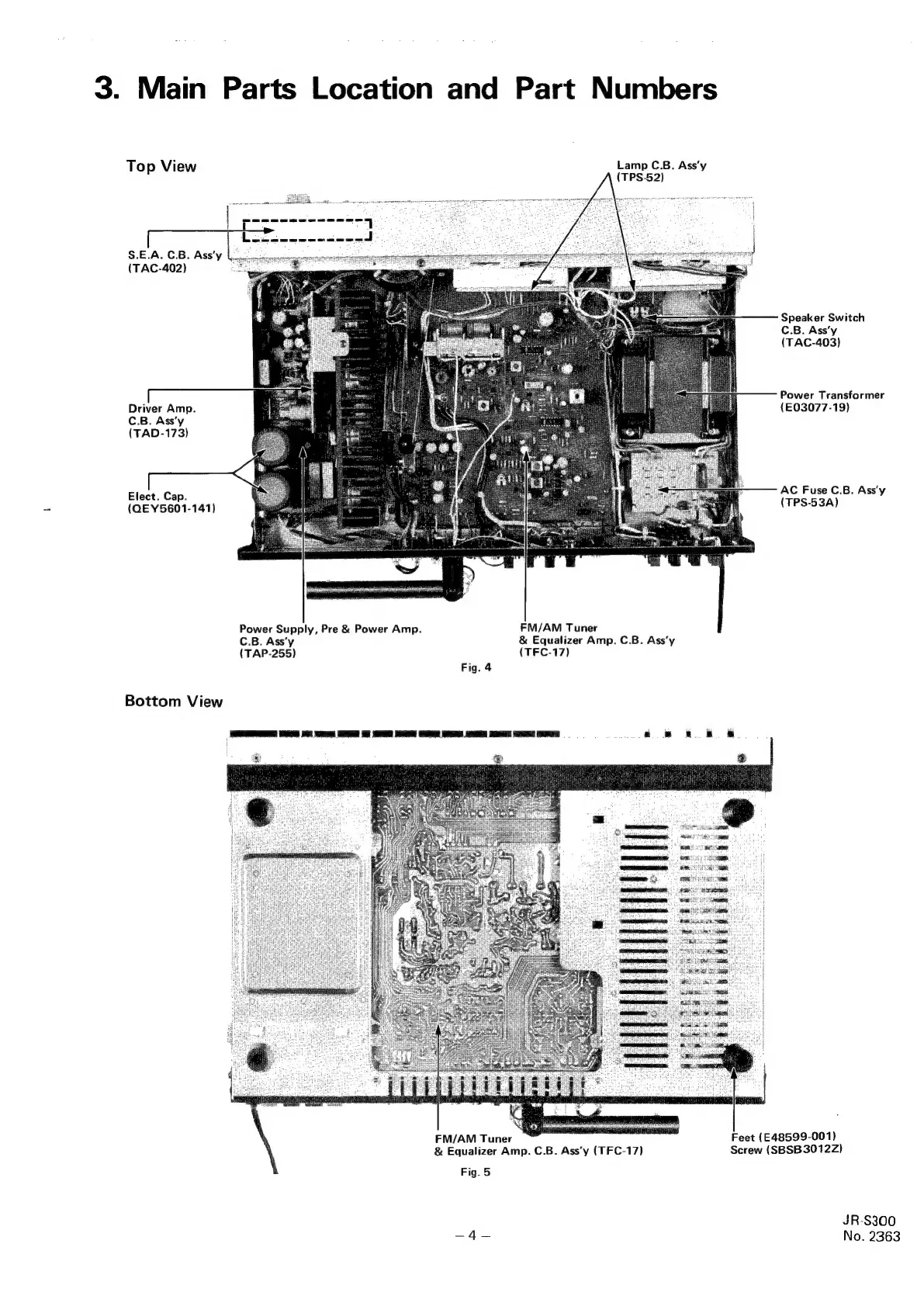

3.
Main
Parts
Location
and
Part
Numbers
Top
View
Lamp
C.B.
Ass’y
(TPS-52)
[eae
Cay
eceneeeoea
S.E.A.
C.B.
Ass'y
(TAC-402)
Speaker
Switch
C.B.
Ass’y
(TAC-403)
Power
Transformer
Driver
Amp:
(E03077-19)
C.B.
Ass'y
(TAD-173)
Elect.
Cap.
AC
Fuse
C.B.
Assy
(QEY5601-141)
(TPS-53A)
Power
Supply,
Pre
&
Power
Amp.
FM/AM
Tuner
C.B.
Assy
&
Equalizer
Amp.
C.B.
Ass’y
(TAP-255)
(TFC-17)
Fig.
4
Bottom
View
‘ane
A
Yak
ET
EL
WP
RN
RE
ET
a
om
8
ff
FM/AMTuner
=
=
Feet
(E48599-001)
&
Equalizer
Amp.
C.B.
Ass’y
(TFC-17)
Screw
(SBSB3012Z)
Fig.
5
JR-S300
eS
No.
2363
