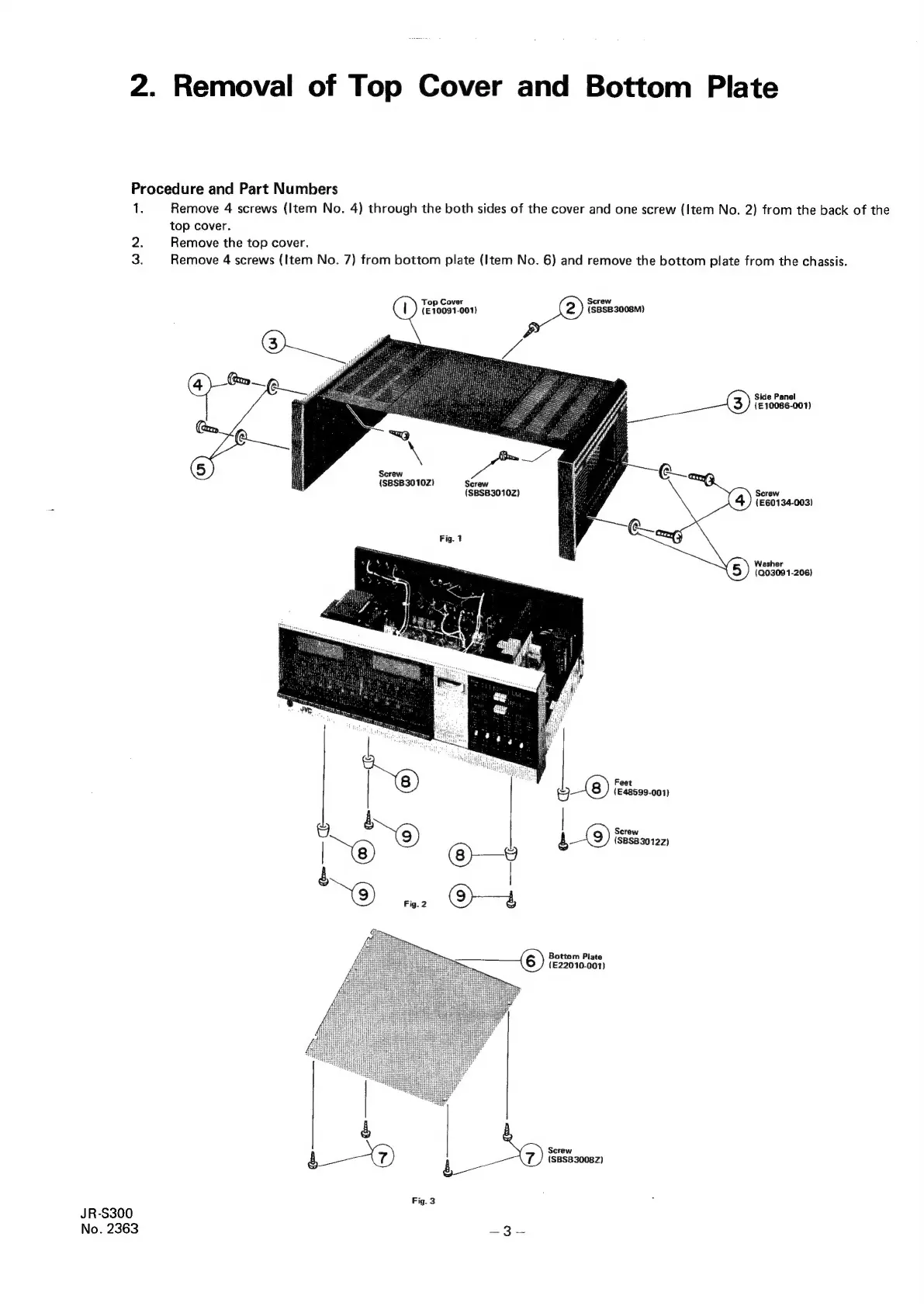

2.
Removal
of
Top
Cover
and
Bottom
Plate
Procedure
and
Part
Numbers
1.
Remove
4
screws
(Item
No.
4)
through
the
both
sides
of
the
cover
and
one
screw
(Item
No.
2)
from
the
back
of
the
top
cover.
2.
Remove
the
top
cover.
3.
Remove
4
screws
(Item
No.
7)
from
bottom
plate
(Item
No.
6)
and
remove
the
bottom
plate
from
the
chassis.
Top
Cover
Screw
{E10091-001)
{SBSB3008M)
Side
Panel
{E10086-001)
gore
Ye
Screw
{SBSB30102)
Screw
(SBSB30102Z)
Screw
(E60134-003)
Washer
(Q0309
1-206)
Feet
wi
(E48599-001)
|
Screw
&
(SBSB30122)
Bottom
Plate
{E22010-001)
Screw
&
(SBSB30082)
Fig.
3
JR-S300
No.
2363
aise
