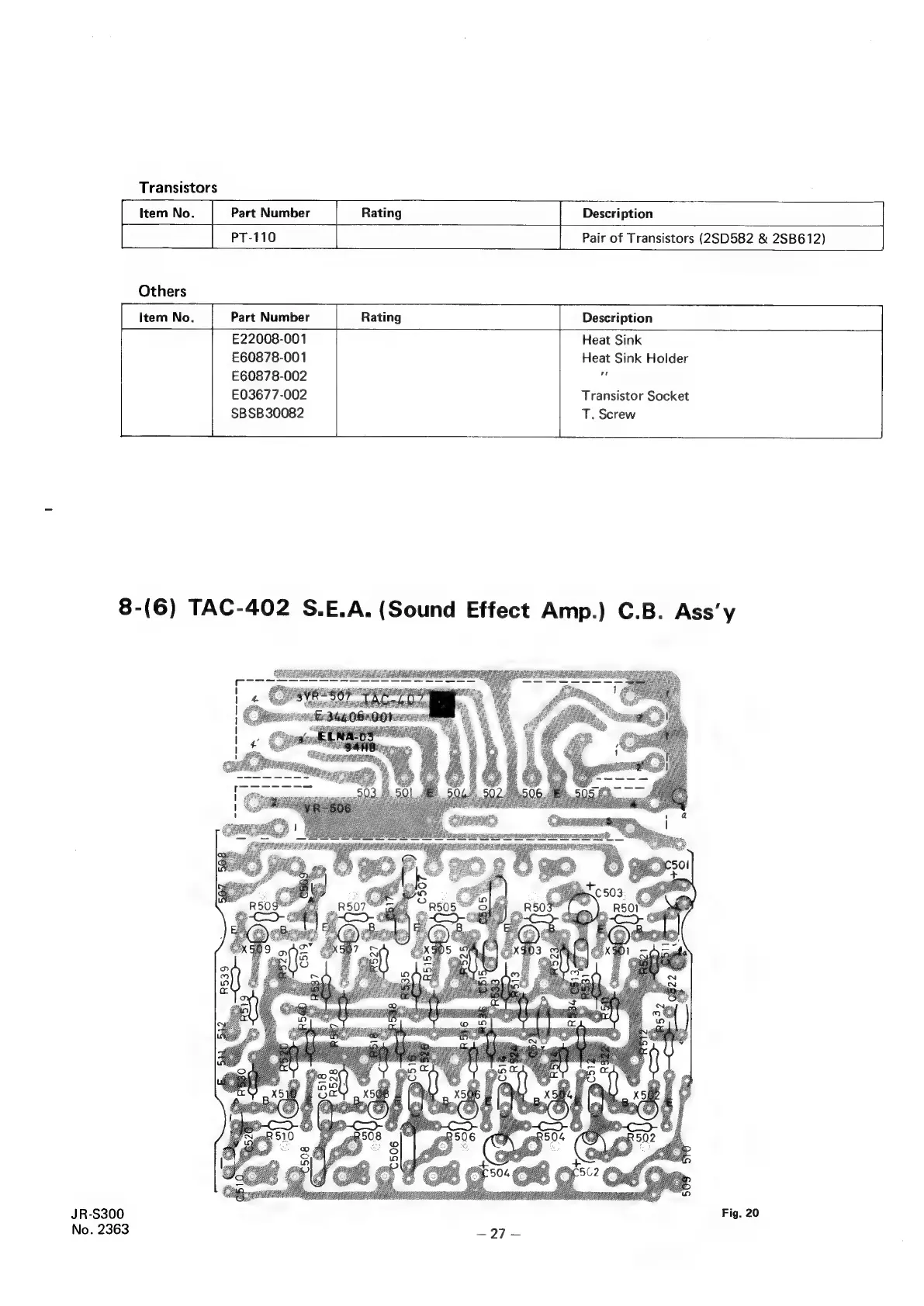

Transistors
Item
No.
Part
Number
Rating
Description
PT-110
Pair
of
Transistors
(2SD582
&
2SB612)
Others
Part
Number
Rating
Description
E22008-001
Heat
Sink
£60878-001
Heat
Sink
Holder
E60878-002
m
E03677-002
Transistor
Socket
SBSB30082
T.
Screw
8-(6)
TAC-402
S.E.A.
(Sound
Effect
Amp.)
C.B.
Ass’y
JR-S300
.
Fig.
20
No.
2363
=
97
=
