SERVICE MANUAL
The listed part numbers have been changed for improvement.
This supplement comparatively draws the difference between original and new part number.
Use this supplement together with original service manual.

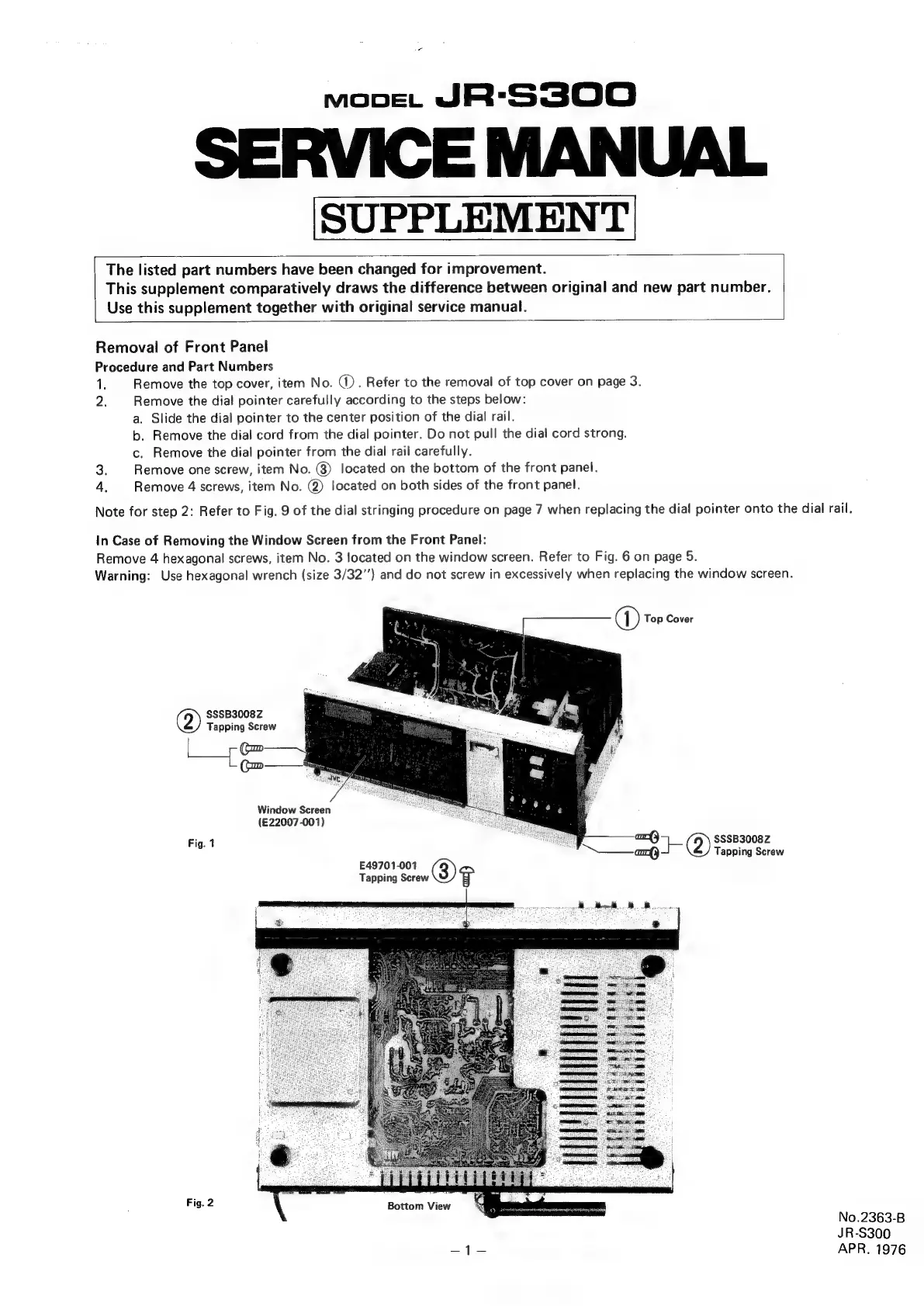

Removal of Front Panel
Procedure and Part Numbers
1.
Remove
the
top
cover,
item
No.
@
.
Refer
to
the
removal
of
top
cover
on
page
3.
2. Remove the dial pointer carefully according to the steps below:
a. Slide the dial pointer to the center position of the dial rail.
b.
Remove
the
dial
cord
from
the
dial
pointer.
Do
not
pull
the
dial
cord
strong.
c. Remove the dial pointer from the dial rail carefully.
3. Remove one screw, item No. @) located on the bottom of the front panel.
4. Remove 4 screws, item No. @) located on both sides of the front panel.
Note for step 2: Refer to Fig. 9 of the dial stringing procedure on page 7 when replacing the dial pointer onto the dial rail.
In Case of Removing the Window Screen from the Front Panel:
Remove 4 hexagonal screws, item No. 3 located on the window screen. Refer to Fig. 6 on page 5.
Warning: Use hexagonal wrench (size 3/32’) and do not screw in excessively when replacing the window screen.
oO Top Cover
SSSB3008Z
Tapping Screw
Window Screen
(£22007 -001)
ax
Fig.
1
}
an
= 2) $SSB3008Z
Tapping Screw
E49701-001 3)
Tapping Screw F
Fig. 2
Bottom View
No.2363-B
JR-S300
_1- APR. 1976
