KD-A77 A/B/C/E/J/U
(

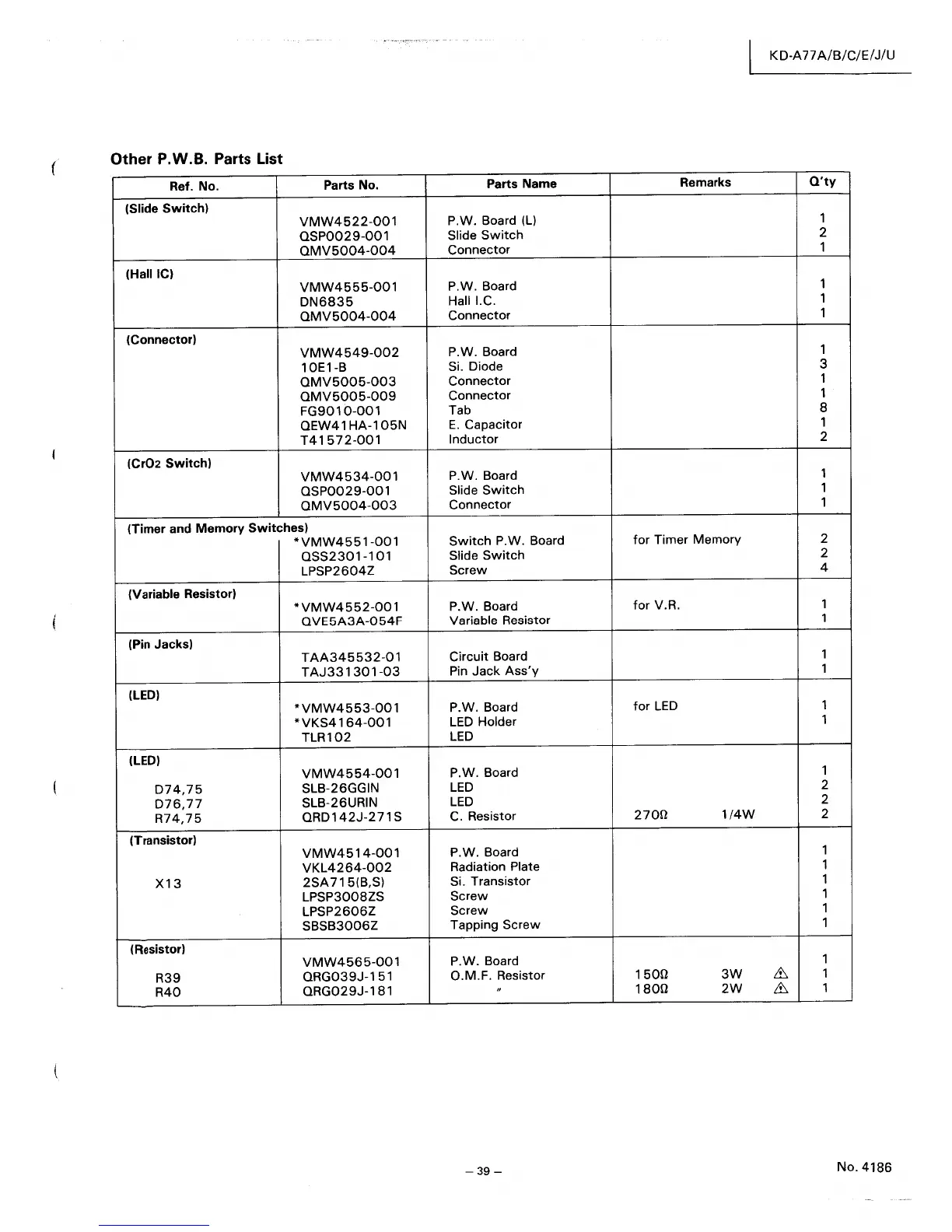

Other P.W.B. Parts List
Ref. No.
Parts No.
Parts Name
Remarks
Q'ty
(Slide Switch)
VMW4522-001
P.W. Board (L)
1
QSP0029-001
Slide Switch
2
QMV5004-004 Connector
1
(HaIlIC)
VMW4555-001 P.W. Board
1
DN6835
HaIlI.C.
1
QMV5004-004
Connector 1
(Connector)
VMW4549-002
P.W. Board 1
1
OE l-B Si. Diode 3
QMV5005-003
Connector
1
QMV5005-009
Connector 1
FG9010-001
Tab 8
QEW41
HA-l 05N
E. Capacitor 1
T41572-001 Inductor
2
(Cr02
Switch)
VMW4534-001
P.W. Board 1
QSP0029-001 Slide Switch
1
QMV5004-003
Connector 1
(Timer and
Memory Switches)
*VMW4551-001
Switch P.W. Board
for Timer Memory
2
QSS2301-101
Slide Switch 2
LPSP2604Z
Screw
4
(Variable Resistor)
*VMW4552-001
P.W. Board for V.R. 1
QVE5A3A-054F Variable Resistor 1
(Pin Jacks)
TAA345532-01 Circuit Board 1
TAJ331301-03
Pin Jack Ass'y 1
(LED)
*VMW4553-001 P.W. Board
for LED
1
*VKS4164-001 LED Holder 1
TLR102
LED
(LED)
VMW4554-001 P.W. Board 1
074,75
SLB-26GGIN
LED 2
076,77
SLB-26URIN
LED 2
R74,75
QRD142J-271S
C. Resistor 27 on 1/4W 2
(Transistor)
VMW4514-00 1
P.W. Board 1
VKL4264-002 Radiation Plate 1
X13
2SA 71 5(B,S) Si. Transistor 1
LPSP3008ZS
Screw 1
LPSP2606Z Screw
1
SBSB3006Z
Tapping Screw
1
(Resistor)
VMW4565-001
P.W. Board 1
R39
QRG039J-151
O.M.F. Resistor 150n 3W
ill
1
R40
QRG029J-181
"
180n 2W
ill
1
-39-
No.4186
