(Top view) Screws
..
(Front view)
(Rear view)
- 9 -
KO-An A!B!C!E!J!U
4. Remove 2 screws fastening the joint bracket to the front
panel (upper side) .

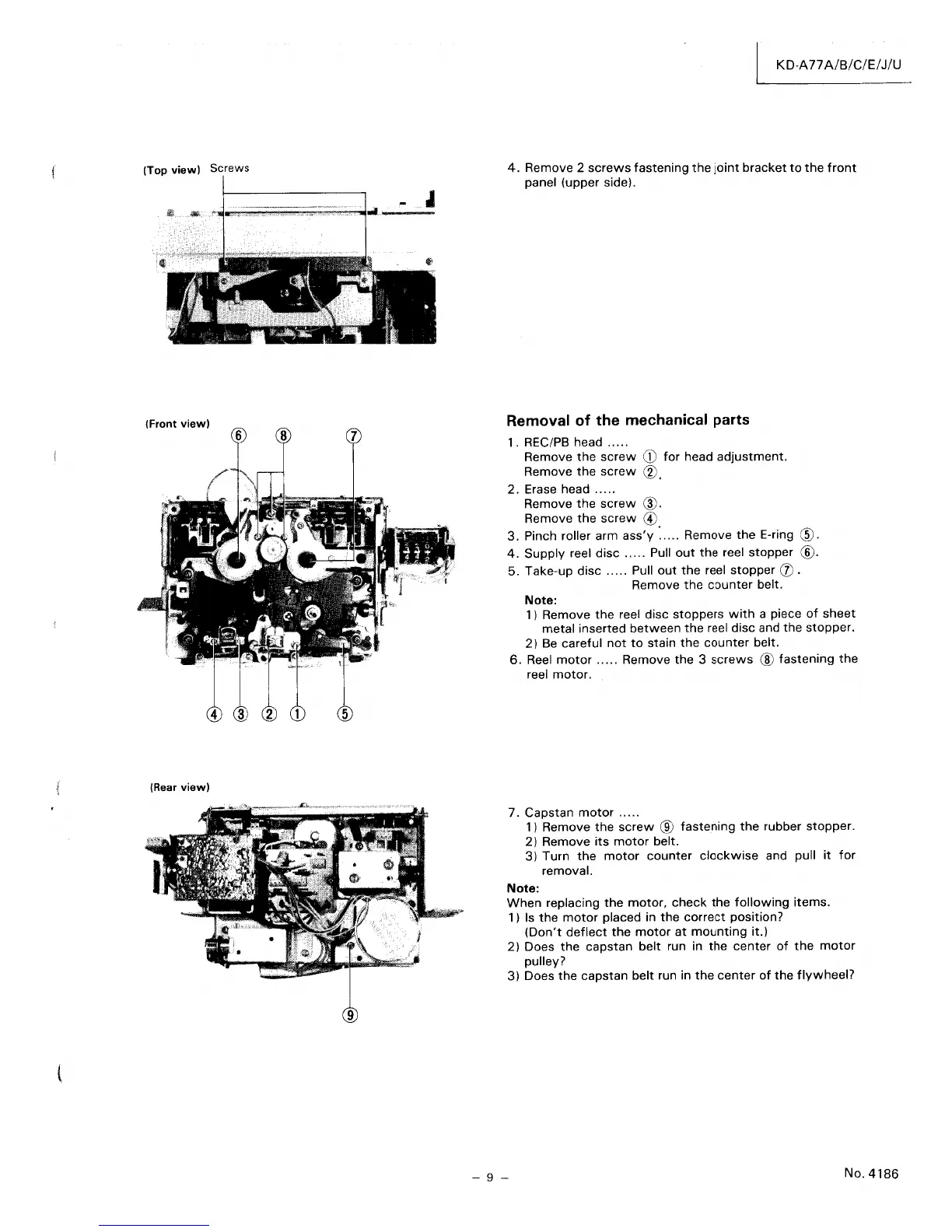

Removal of the mechanical parts
1 . REC/PB head .....
Remove the screw CD for head adjustment.
Remove the screw CV.
2. Erase head .....
Remove the screw ®.
Remove the screw ®
3. Pinch roller arm ass'y : .... Remove the E-ring @.
4. Supply reel disc ..... Pull out the reel stopper @.
5. Take-up disc ..... Pull out the reel stopper (j) .
Remove the counter belt.
Note:
1) Remove the reel disc stoppers with a piece of sheet
metal inserted between the reel disc and the stopper.
2) Be careful not to stain the counter belt.
6. Reel
motor ..... Remove the 3 screws ® fastening the
reel motor.
7. Capstan motor .....
1) Remove the screw ® fastening the rubber stopper.
2) Remove its motor belt.
3)
Turn the motor counter clockwise and pull it for
removal.
Note:
When replacing the motor, check the following items.
1 ) Is the motor placed in the correct position?
(Don't deflect the motor at mounting it.)
2) Does
the capstan belt run in the center of the motor
pulley?
3) Does
the capstan belt run in the center of the flywheel?
No.4186
