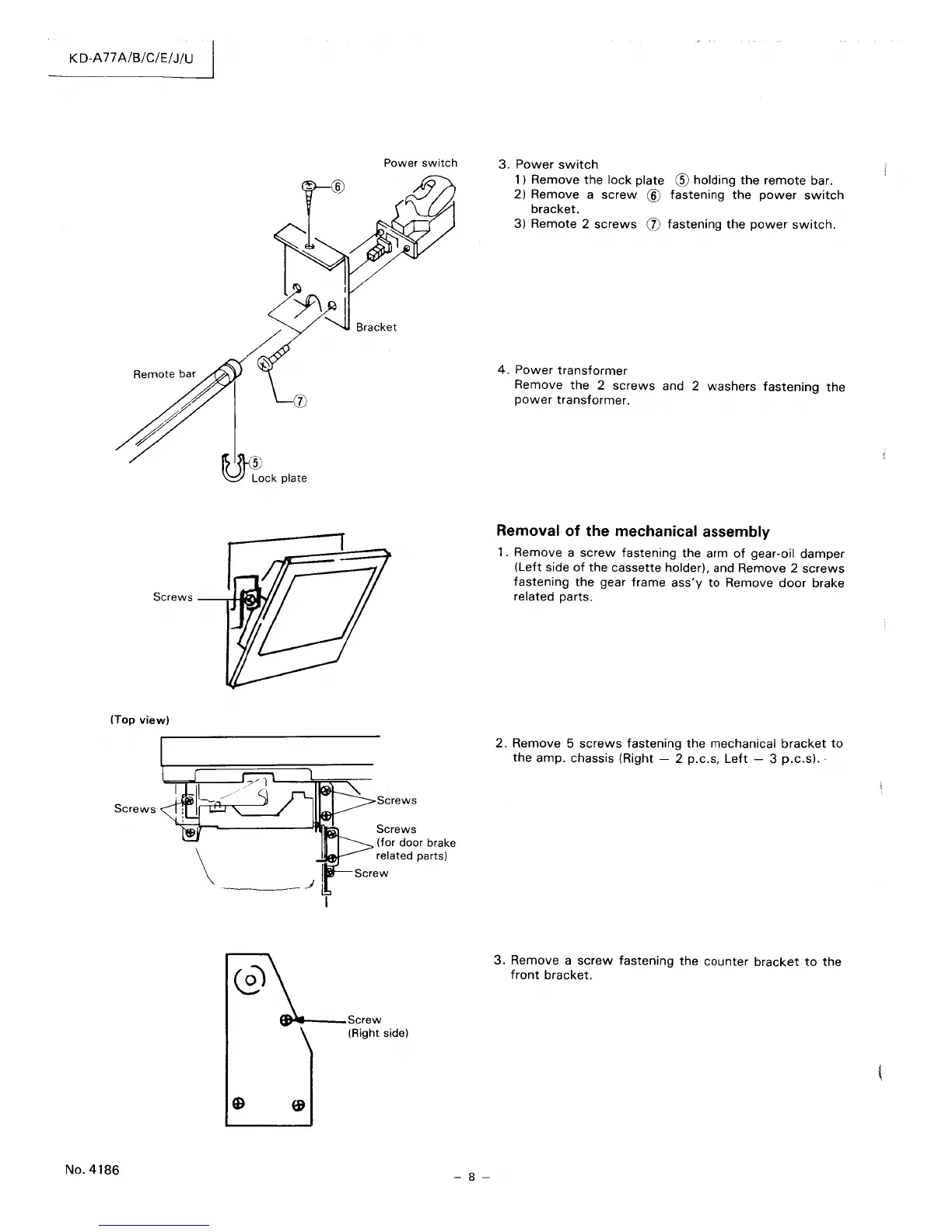

K D-A 77 A/B/C/EI J/U
~ckPlate
Screws -----,rl-I~rv I
(Top view)
Screws
Power switch
Screws
Screws
(for door brake
related parts)
tIP_--_Screw
(Right side)
No_4186
- 8 -
3. Power switch
1) Remove the lock plate CID holding the remote bar.
2) Remove a
screw ® fastening the power switch
bracket.
3) Remote 2 screws (j) fastening the power switch.
4. Power transformer
Remove the 2 screws and 2 washers fastening the
power transformer.
Removal of the mechanical assembly
1 . Remove a screw fastening the arm of gear-oil damper
(Left side of the cassette holder), and Remove 2 screws
fastening the gear frame ass'y to Remove door brake
related parts.
2. Remove 5 screws fastening the mechanical bracket to
the amp. chassis (Right - 2 p.c.S, Left - 3 p.c.s).
3. Remove a screw fastening the counter bracket to the
front bracket.
