JVC KD-DB53 User Manual

15
STEERING
WHEEL
REMOTE
Light blue/yellow

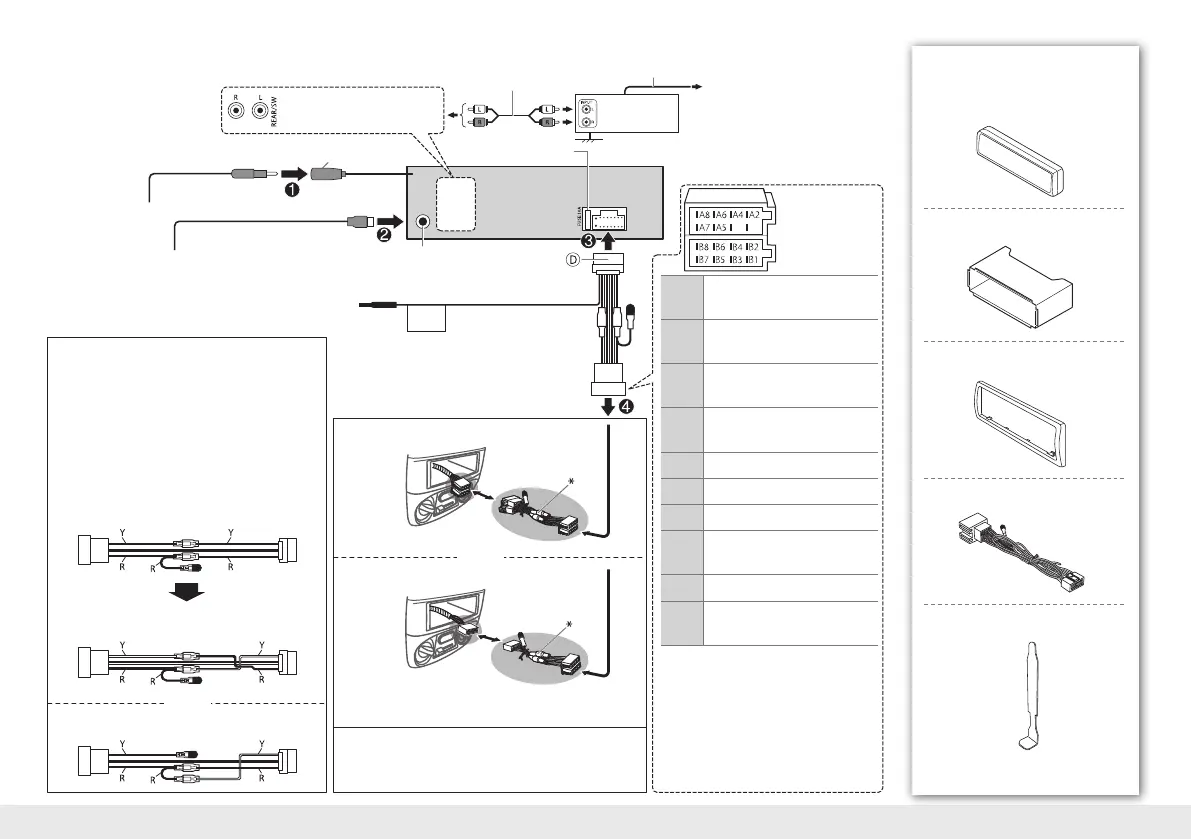

Wiring connection
Signal cord
(not supplied)
Remote wire
(not supplied)
To the steering wheel remote control adapter
Fuse (10 A)
To Blue/white wire of
the wiring harness
D
(When using a remote wire having
ISOconnectors,connecttheISO
connectors to the corresponding
sockets.)
DAB aerial terminal
(SMB connector)
Aerial input (for FM/AM)
JVCAmplifier
Part list for installation
( ×2 )
( ×1 )
( ×1 )
( ×1 )
( ×1 )
A Faceplate
B Mounting sleeve
C Trim plate
D Wiring harness
E Extraction key
Rear/subwoofer output
IMPORTANT: A custom wiring harness (separately
purchased) which is suitable for your car is
recommended for connection.
If your car has an ISO terminal
If your car does NOT have an ISO terminal
(or)
(or)
ISO connector
* Custom wiring harness (separately purchased)
For some VW/Audi or Opel (Vauxhall)
automobiles
You may need to modify the wiring of the supplied
wiring harness
D as illustrated.
Iftheunitdoesnotturnonwithmodifiedwiring1,
use modified wiring 2 instead.
Y: Yellow R: Red
Original wiring
Modified wiring 1
Modified wiring 2
B1/B2
Purple
ª / Purple/black · :
Rear speaker (right)
B3/B4
Gray
ª / Gray/black · :
Front speaker (right)
B5/B6
White
ª / White/black · :
Front speaker (left)
B7/B8
Green
ª / Green/black · :
Rear speaker (left)
A2 Brown: Tel muting
A4 Yellow: Battery
A5 Blue/white: Remote wire
A6
Orange/white: Car light control
switch
A7 Red: Ignition (ACC)
A8
Black: Earth (ground)
connection
• When using a cable that does not have
ISOconnectors,cutthecable.Insulate
the cut cable by putting tape on the
cable conductor. Short circuit can
damage the vehicle.
ENGLISH
LVT2423-001A_KD-DB53_English.indd 15 12/12/21 9:12
