(No.MA040)1-7
3.1.4 Removing the side panel
(See Fig.5)
• Prior to performing the following procedure, remove the front
panel assembly as required.
(1) From the left side of the main body, remove the two screws
C and screw D attaching the side panel.

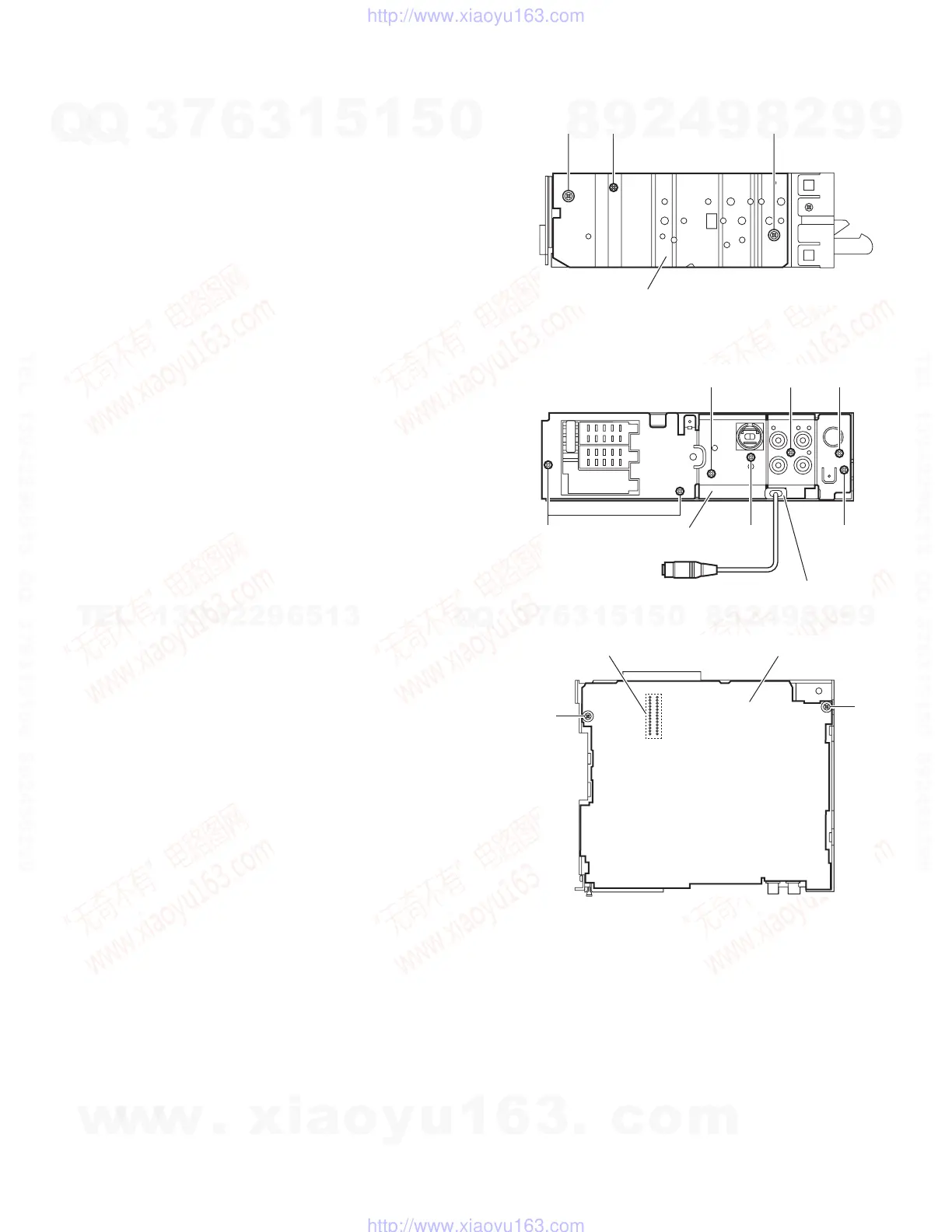

Fig.5
3.1.5 Removing the rear bracket
(See Fig.6)
• Prior to performing the following procedure, remove the bottom
cover.
(1) From back side of the main body, remove the three screws
E, screws F and three screws G attaching the rear bracket.
(2) Remove the rear bracket.
3.1.6 Removing the main board
(See Figs.6 and 7)
• Prior to performing the following procedures, remove the front
panel assembly, bottom cover, front chassis assembly and
side panel.
• Remove the front chassis assembly as required.
(1) Remove the three screws E attaching the rear bracket on
the back side of the main body. (See fig.6.)
(2) From the bottom side of the main body, remove the two
screws H attaching the main board. (See fig.7.)
(3) Disconnect the connector CN501 from the CD mechanism
assembly and remove the main board. (See fig.7.)
Reference:
• During reassembly, before fixing the rear bracket onto the
main body, insert the steering remote into the slot.
• Remove the rear bracket from the main body as required.
(See "3.1.5 Removing the rear bracket".)
Fig.6
Fig.7
Side panel
CCD
GG
E
G
Rear bracket
Insert the steering
remote into the slot.
F
E
Main board
H
H
CN501
