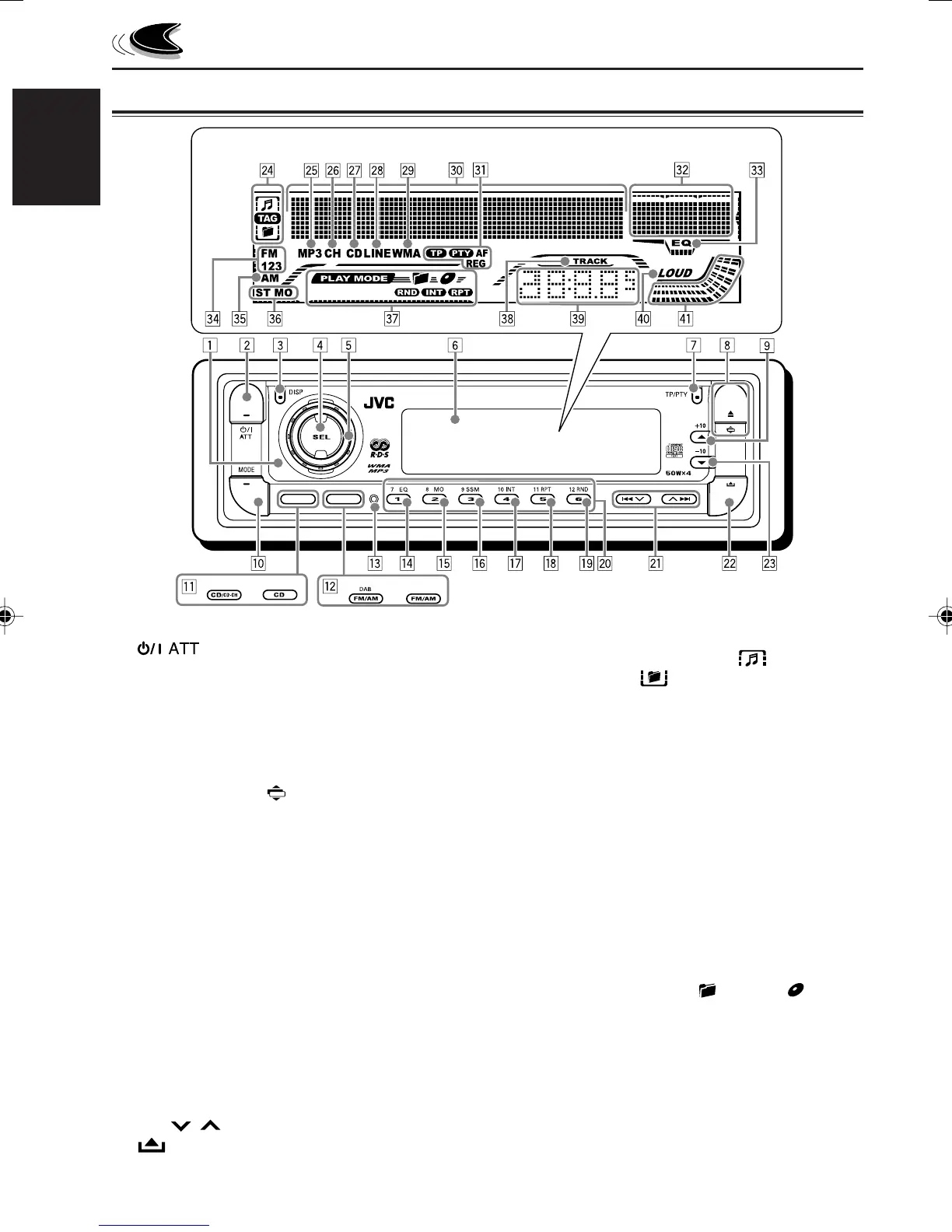

LOCATION OF THE BUTTONS
Display window
f Disc information indicators— (track/file),
TAG (ID3 Tag), (folder)
g MP3 indicator
h Only for KD-G801: CH (CD changer) indicator
j CD indicator
k Only for KD-G801: LINE indicator
l WMA indicator
/ Main display
z RDS indicators—TP, PTY, AF, REG
x Equalizer pattern indicator
Audio level indicator
c EQ (equalizer) indicator
v FM band indicators—FM1, FM2, FM3
b AM band indicator
n Tuner reception indicators—ST (stereo), MO
(monaural)
m Play mode indicators— (folder), (disc),
RND (random), INT (intro), RPT (repeat)
, TRACK indicator
. Source/clock display
P LOUD (loudness) indicator
Q Audio level indicator
Volume level indicator
Control panel
1 Remote sensor
2 (standby/on attenuator) button
3 DISP (display) button
4 SEL (select) button
5 Control dial
6 Display window
7 TP/PTY (traffic programme/programme type)
button
8 0 (eject) button / (angle) button
9 5 (up) button / +10 button
p MODE button
q For KD-G801: CD/CD-CH (CD changer) button
For KD-G701: CD button
w For KD-G801: FM/AM DAB button
For KD-G701: FM/AM button
e Reset button
r EQ (equalizer) button
t MO (monaural) button
y SSM (Strong-station Sequential Memory)
button
u INT (intro) button
i RPT (repeat) button
o RND (random) button
; Number buttons
a 4 / ¢ buttons
s (control panel release) button
d ∞ (down) button / –10 button
Display window
