41
ENGLISH

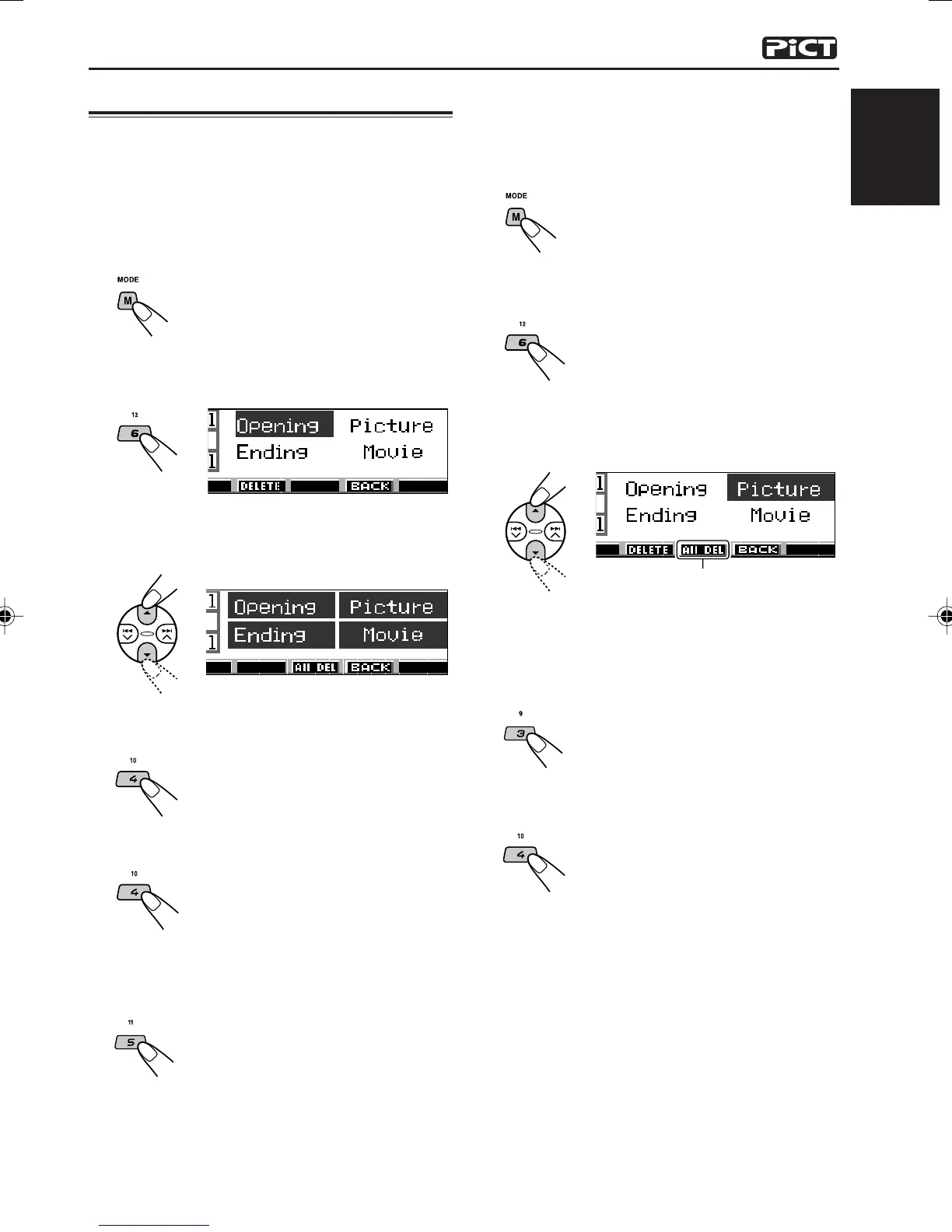

To delete the files stored for “Opening,”
“Ending,” “Picture (all stored images at a
time),” and “Movie”
1 Press M MODE while playing any source.
“Mode” appears on the display.
The next-step-operation buttons
start flashing.
2 Press number button 6 to show the download
selection screen.
3 Press 5 (up) or (down) to select (highlight)
one of the listed items.
4 To delete the file stored in “Opening,
“Ending, and “Movie, press number button
3.
The file name of the previously
stored animation appears, and
the unit asks you “Delete OK?”
To delete all the files stored in “Picture” at
a time, press number button 4.
The unit asks you “All Picture
Delete OK?”
Appears when “Picture” is
selected (highlighted)
Deleting unwanted files
When “BACK” is shown on the display above
number button 5, you can go back to the
previous screen by pressing number button 5.
To delete all the stored files at a time
1 Press M MODE while playing any source.
“Mode” appears on the display.
The next-step-operation buttons
start flashing.
2 Press number button 6 to show the download
selection screen.
3 Press 5 (up) or (down) to select (highlight)
all the listed items.
4 Press number button 4.
The unit asks you “All File Delete
OK?”
5 Press number button 4 again.
“Now Deleting... appears while
erasing the files. When erasure is
over, the download selection
screen appears again.
6 Press number button 5 to resume the source
indication screen.
CONTINUED ON THE NEXT PAGE
EN37-44_KD-LH401[E_EX]f.p65 30/1/04, 5:23 PM41

Table of Contents

Other manuals for JVC KD-Lh401

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JVC KD-Lh401 and is the answer not in the manual?

JVC KD-Lh401 Specifications

Audio Amplifier Specifications IconAudio Amplifier Specifications
maximum power output front50 W per channel
maximum power output rear50 W per channel
continuous power output RMS front19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output RMS rear19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance4 Ω (4 Ω to 8 Ω allowance)
equalizer control range frequencies60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
equalizer control range level±10 dB
frequency response40 Hz to 20 000 Hz
signal-to-noise ratio70 dB
line-out level/impedance5.0 V/20 kΩ load (full scale)
output impedance1 kΩ
CD Player Specifications IconCD Player Specifications
operating voltageDC 14.4 V (11 V to 16 V allowance)
allowable operating temperature0°C to +40°C
dimensions (W × H × D) installation size182 mm × 52 mm × 159 mm
dimensions (W × H × D) panel size188 mm × 58 mm × 12 mm
mass1.6 kg (excluding accessories)
frequency response5 Hz to 20 000 Hz
dynamic range96 dB
signal-to-noise ratio98 dB
max. bit rate mp3320 Kbps
max. bit rate wma192 Kbps
Tuner Specifications IconTuner Specifications
frequency range FM87.5 MHz to 108.0 MHz
frequency range AM (MW)522 kHz to 1 620 kHz
frequency range AM (LW)144 kHz to 279 kHz
usable sensitivity FM11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity FM16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity FM (400 kHz)65 dB
frequency response FM40 Hz to 15 000 Hz
stereo separation FM30 dB
capture ratio FM1.5 dB
sensitivity MW20 µV
selectivity MW35 dB
sensitivity LW50 µV
