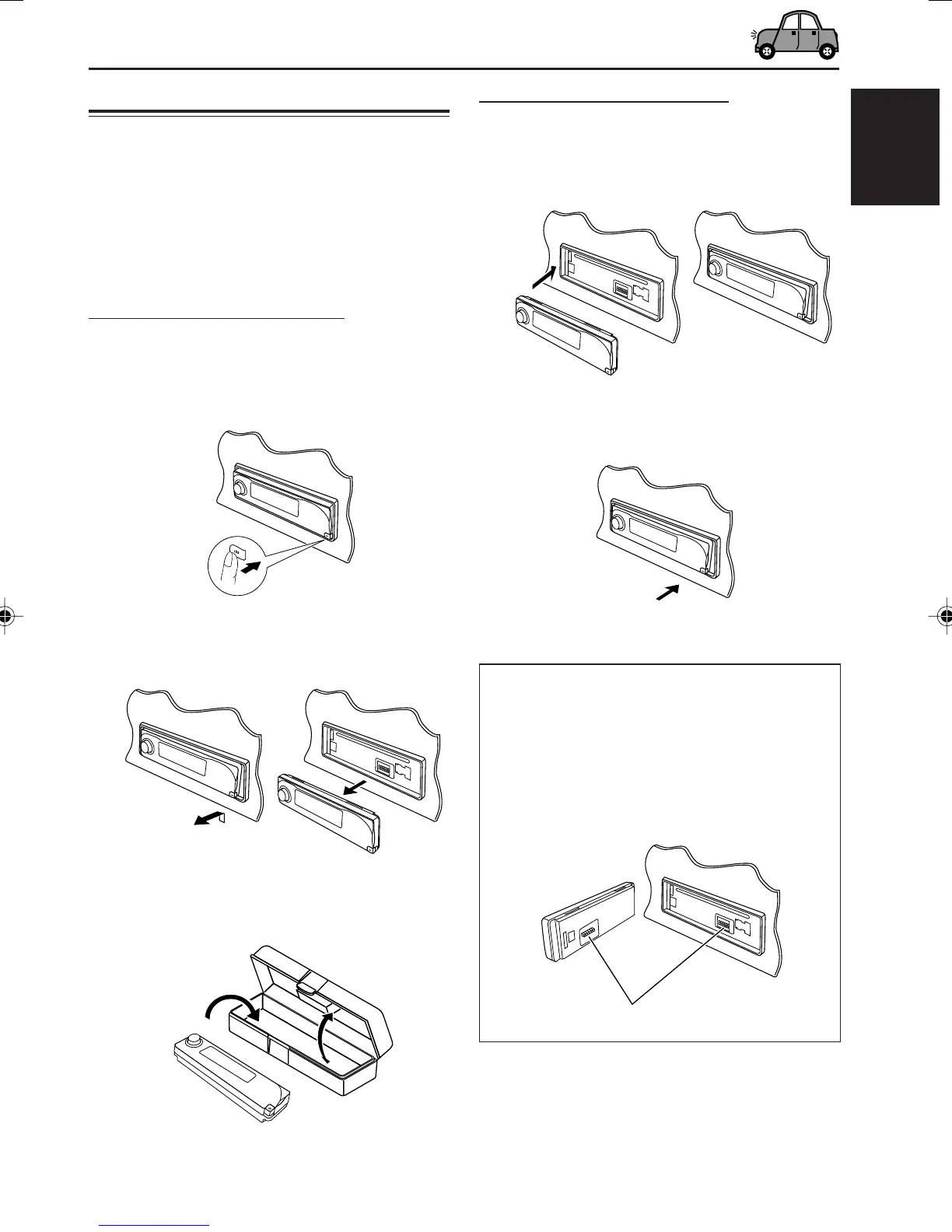

Detaching the control panel
You can detach the control panel when leaving
the car.
When detaching or attaching the control panel,
be careful not to damage the connectors on the
back of the control panel and on the panel
holder.
Detaching the control panel
Before detaching the control panel, be sure to
turn off the power.
1 Unlock the control panel.
2 Lift and pull the control panel out of
the unit.
3 Put the detached control panel into
the provided case.
Attaching the control panel
1 Insert the left side of the control
panel into the groove on the panel
holder.
2 Press the right side of the control
panel to fix it to the panel holder.
Note on cleaning the connectors:
If you frequently detach the control panel, the
connectors will deteriorate.
To minimize this possibility, periodically wipe the
connectors with a cotton swab or cloth moistened
with alcohol, being careful not to damage the
connectors.
Connectors
EN45-55_KD-LH401[E_EX]f.p65 30/1/04, 5:22 PM55

JVC KD-Lh401 Specifications

Audio Amplifier Specifications

maximum power output front	50 W per channel
maximum power output rear	50 W per channel
continuous power output RMS front	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output RMS rear	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance	4 Ω (4 Ω to 8 Ω allowance)
equalizer control range frequencies	60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
equalizer control range level	±10 dB
frequency response	40 Hz to 20 000 Hz
signal-to-noise ratio	70 dB
line-out level/impedance	5.0 V/20 kΩ load (full scale)
output impedance	1 kΩ

CD Player Specifications

operating voltage	DC 14.4 V (11 V to 16 V allowance)
allowable operating temperature	0°C to +40°C
dimensions (W × H × D) installation size	182 mm × 52 mm × 159 mm
dimensions (W × H × D) panel size	188 mm × 58 mm × 12 mm
mass	1.6 kg (excluding accessories)
frequency response	5 Hz to 20 000 Hz
dynamic range	96 dB
signal-to-noise ratio	98 dB
max. bit rate mp3	320 Kbps
max. bit rate wma	192 Kbps

Tuner Specifications

frequency range FM	87.5 MHz to 108.0 MHz
frequency range AM (MW)	522 kHz to 1 620 kHz
frequency range AM (LW)	144 kHz to 279 kHz
usable sensitivity FM	11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity FM	16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity FM (400 kHz)	65 dB
frequency response FM	40 Hz to 15 000 Hz
stereo separation FM	30 dB
capture ratio FM	1.5 dB
sensitivity MW	20 µV
selectivity MW	35 dB
sensitivity LW	50 µV
