7
ENGLISH
3 Adjust the volume.
4 Adjust the sound as you want.
(See pages 32 – 35.)
Note:
While playing a source, you can select the display
theme of your preference. For details, see “Selecting
the display theme” on page 36.
NOTICE:
The illustrations of the display used in this manual
are mainly of the initial setting when shipped from
the factory. If you have changed the display
patterns or some PSM items, the actual displays
you see will be different.

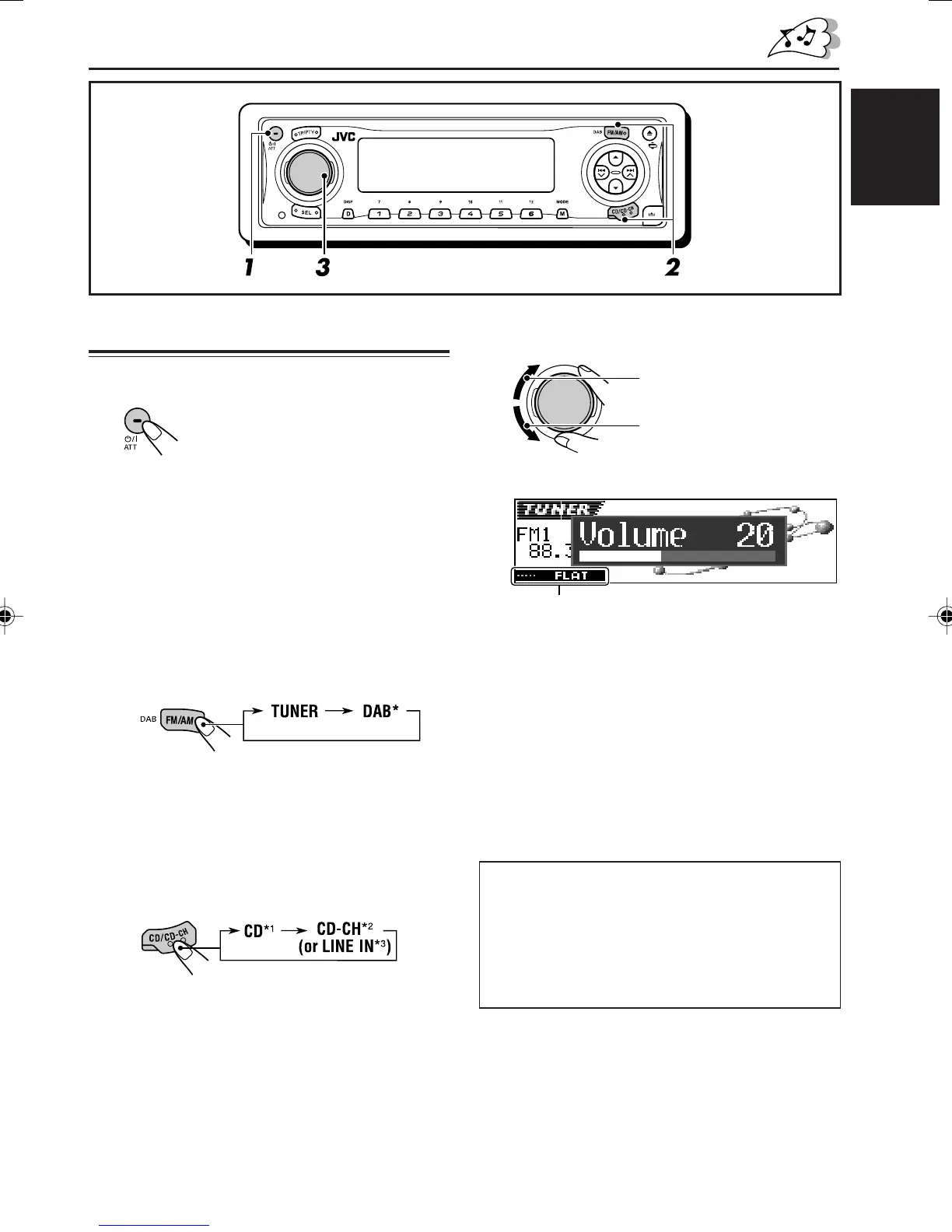

Turning on the power
1 Turn on the power.
Note on One-Touch Operation:
When you select a source in step 2 below, the
power automatically comes on. You do not have
to press this button to turn on the power.
2 Select the source.
• To operate the FM/AM tuner, press
FM/AM DAB.
To operate the DAB tuner, press and
hold FM/AM DAB.
* Without connecting the DAB tuner, you
cannot select “DAB” as the source.
• To operate the CD player (CD),
CD changer (CD-CH), or external
component (LINE IN), press CD/CD-CH
repeatedly.
*
1
Without loading the CD, you cannot select
“CD” as the source.
*
2
Without connecting the CD changer, you
cannot select “CD-CH” as the source.
*
3
To select “LINE IN” as the source, select
“Line In” for the “Ext Input” setting on
page 49.
BASIC OPERATIONS
To increase the volume
To decrease the volume
Volume level appears.
Current sound mode (iEQ)
(see page 33)
EN07-09_KD-LH401[E_EX]f.p65 4/2/04, 5:53 PM7

JVC KD-Lh401 Specifications

Audio Amplifier Specifications

maximum power output front	50 W per channel
maximum power output rear	50 W per channel
continuous power output RMS front	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output RMS rear	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance	4 Ω (4 Ω to 8 Ω allowance)
equalizer control range frequencies	60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
equalizer control range level	±10 dB
frequency response	40 Hz to 20 000 Hz
signal-to-noise ratio	70 dB
line-out level/impedance	5.0 V/20 kΩ load (full scale)
output impedance	1 kΩ

CD Player Specifications

operating voltage	DC 14.4 V (11 V to 16 V allowance)
allowable operating temperature	0°C to +40°C
dimensions (W × H × D) installation size	182 mm × 52 mm × 159 mm
dimensions (W × H × D) panel size	188 mm × 58 mm × 12 mm
mass	1.6 kg (excluding accessories)
frequency response	5 Hz to 20 000 Hz
dynamic range	96 dB
signal-to-noise ratio	98 dB
max. bit rate mp3	320 Kbps
max. bit rate wma	192 Kbps

Tuner Specifications

frequency range FM	87.5 MHz to 108.0 MHz
frequency range AM (MW)	522 kHz to 1 620 kHz
frequency range AM (LW)	144 kHz to 279 kHz
usable sensitivity FM	11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity FM	16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity FM (400 kHz)	65 dB
frequency response FM	40 Hz to 15 000 Hz
stereo separation FM	30 dB
capture ratio FM	1.5 dB
sensitivity MW	20 µV
selectivity MW	35 dB
sensitivity LW	50 µV
