Note : The reel disk and capstan can now
be replaced.
1-1 Remove the C washer at the top of the reel disk to
remove the reel disk.
caution : Replace with a new C washer after repairing.
1-2 To replace the capstan, remove the E washer in the
pinch-roller section.
Remove the main belt of the flywheel beforehand.
Assembling the Cassette Hanger ( See Fig. 1-5)
1. Assemble the return link.
2. Install the cassette hanger on the chassis.
Note : While pressing the EJECT lever, assemble
in the order shown below.
C Washer
Reel disk
Capstan
E Washer
Cassette hanger
Return link
EJECT lever
EJECT L.Spring
EJECT C.Spring
EJECT cam
The convex section should be between
the cassette hanger and EJECT cam .

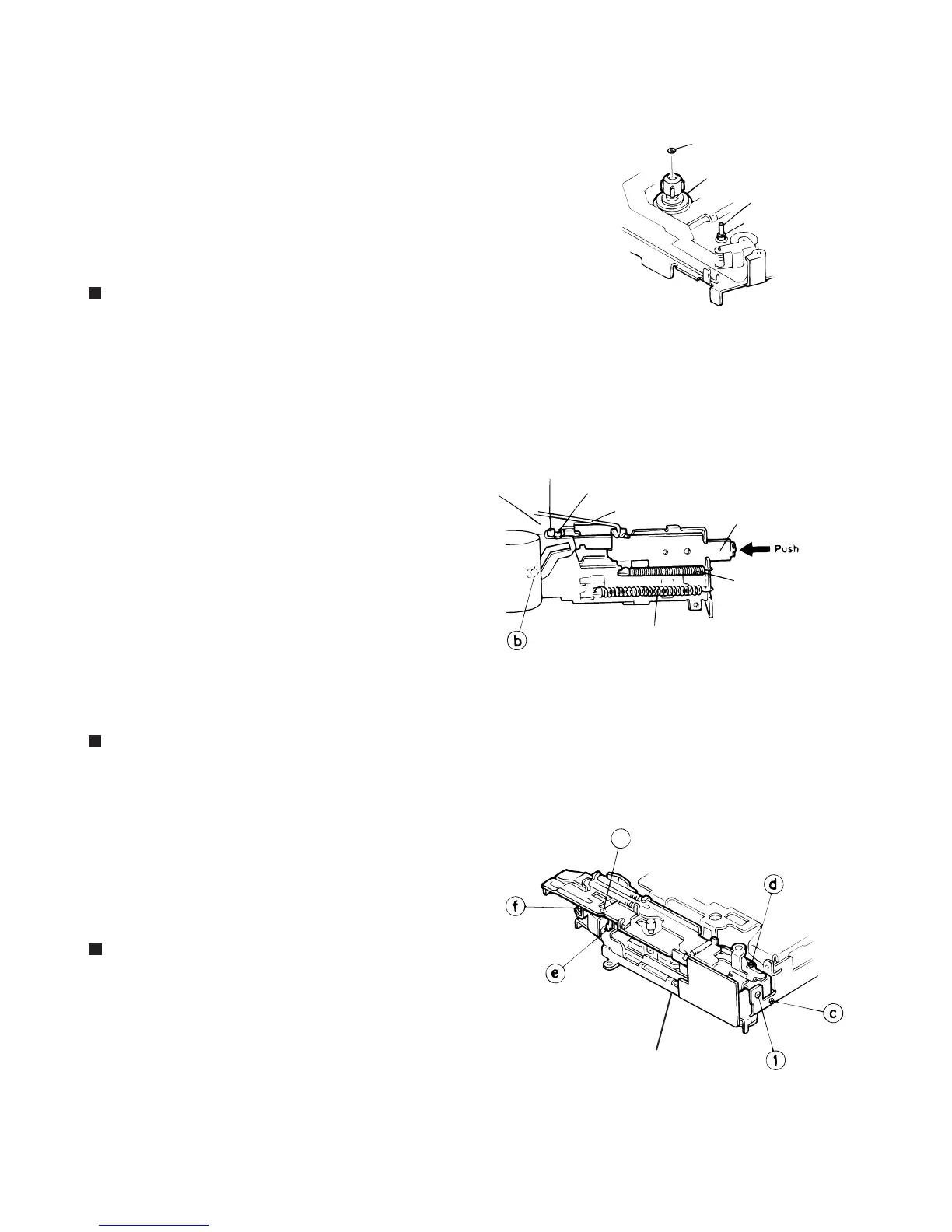

Fig. 4
Fig. 5
Fig. 6
Removing the FF/REW lever assembly
( See Fig. 6)
1. From the rear of unit, remove the FF/REW lever
assembly retaining the one screw1.
2. From the upper part of the FF/REW lever assembly,
remove the FF/REW lever assembly
retaining the one screw 2.
3. From the front of unit, remove the FF/REW lever
assembly upwards and pull it slightly to the front.
Assembling the FF/REW lever Assembly
1. Assemble the FF/REW lever assembly to the
chassis of rear section c.
2. Assemble the pinch-roller shaft d, change
lever(B) eand return link fto chassis.
FF/REW lever assembly
2
To Next Page
