1-11
KS-FX711/KS-FX511
Remove the band attaching the wire to the head.
Remove the two screws B, the head and the head
support spring.
Remove the pinch arm spring from the tape guide.
Remove the tape guide and the pinch spring arm.
1.
2.
3.
4.

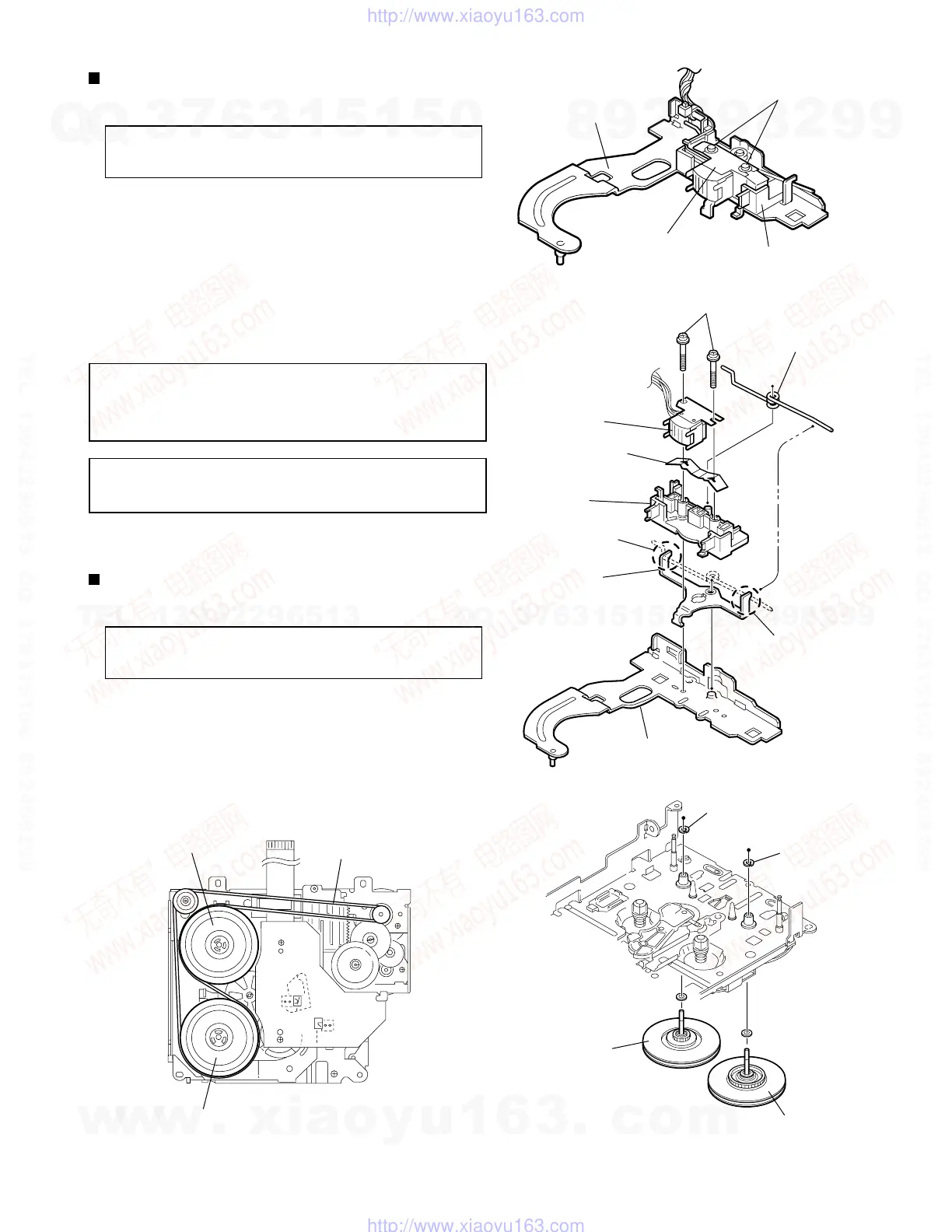

Removing the head / tape guide
(See Fig.16 and 17)
Remove the belt at the bottom.
Remove the two polywashers on the upper side.
Pull out each flywheel assembly downward.
1.
2.
3.
Removing the flywheel assembly (F) & (R)
(See Fig.18 and 19)
When reattaching the pinch arm spring, set
both end of it to the pinch spring arm (
remarked o).
CAUTION:
When reattaching the head, set the wires
into the groove of the tape guide (Fig.16).
CAUTION:
It is not necessary to remove the slide
chassis assembly.
REFERENCE:
It is not necessary to remove the slide
chassis assembly.
REFERENCE:
Fig.17
Fig.19
Fig.16
Fig.18
B
Slide chassis assembly
Head
Tape guide
B
Pinch arm spring
Head
Head support spring
Tape guide
Pinch spring arm
Slid chassis assembly
Flywheel assembly (F)
Flywheel assembly (R)
Belt
Polywasher
Polywasher
Flywheel assembly (F)
Flywheel assembly (R)
