KS-FX711/KS-FX511
Push and turn counterclockwise the spring holder (F)
to release the three joints p on the bottom of the
flywheel.
The spring holder (F), the TU spring and the friction
gear play come off.
Remove the polywasher and felt.
1.
2.
3.

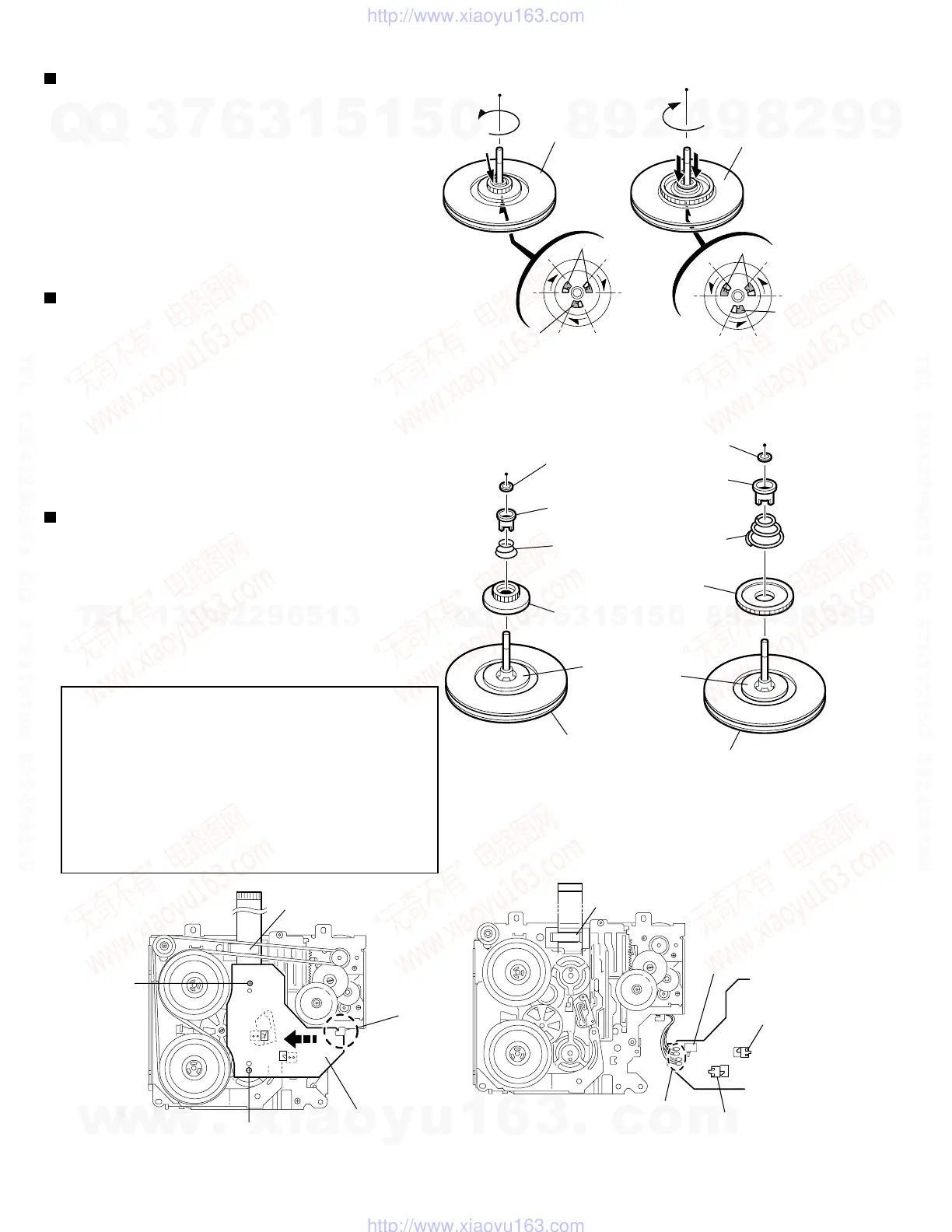

Disassembling the flywheel assembly (F)
(See Fig.20 and 21)
Push and turn clockwise the spring holder (R) to
release the three joints q on the bottom of the
flywheel.
The spring holder (R), the FF spring and the friction
gear FF come off.
Remove the polywasher and the felt.
1.
2.
3.
Disassembling the flywheel assembly (R)
(See Fig.20 and 22)
Remove the two screws C attaching the reel board.
Move the reel board in the direction of the arrow to
release the joint r.
Unsolder the wires if necessary.
1.
2.
3.
Removing the reel board
(See Fig.23 and 24)
When reattaching, confirm operation of
the MODE switch and the ST-BY switch.
The mode position between EJECT and
ST-BY is optimum for reattaching.
Connect the card wire extending from
the reel board to the FFC pad before
reattaching the reel board.
CAUTION:
Fig.24
Fig.20
Fig.21 Fig.22
Fig.23
Flywheel assembly (F)
Flywheel assembly (R)
Joints p
Joint p
Joints q
Joint q
Polywasher
Spring holder (F)
TU spring
Polywasher
Spring holder (R)
FF spring
Friction gear play
Friction gear FF
Flywheel assembly (F)
Flywheel assembly (R)
FFC pad
FFC pad
Joint r
Reel board
C
C
CT-1 switch
ST-BY switch
Soldering
MODE switch
Felt
