KS-FX711/KS-FX511
Remove the polywasher on the bottom and pull out
the mode gear.
1.
Removing the mode gear
(See Fig.28 and 31)
Move the mode rack assembly in the direction of the
arrow to release the two joints b’ and the joint c’.
1.
Removing the mode rack assembly
(See Fig.29 and 30)
Remove the polywasher attaching the direction link.
Bring up the direction link to release the three joints
x, y and z at a time.
Move the direction plate in the direction of the arrow
to release the two joints a’.
1.
2.
3.
Removing the direction link / direction
plate (See Fig.29 to 31)
When reattaching, set the two b’ on the
bottom of the mode rack assembly into the
slots of the main chassis and move in the
direction of the arrow (See Fig.30).
REFERENCE:
Pull out the mode switch actuator at the bottom.1.
Removing the mode switch actuator
(See Fig.28, 29 and 31)
When reattaching the mode switch
actuator to the main chassis, make sure to
set on the shaft and insert v into the slot w.
REFERENCE:
When reattaching the direction plate,
engage the two joints a’ and move in the
direction of the arrow (Refer to Fig.30).
REFERENCE:
When reattaching the direction link,
move the direction plate in the direction
of the arrow and engage the three joint
x, y and z at a time (Refer to Fig.31).
REFERENCE:

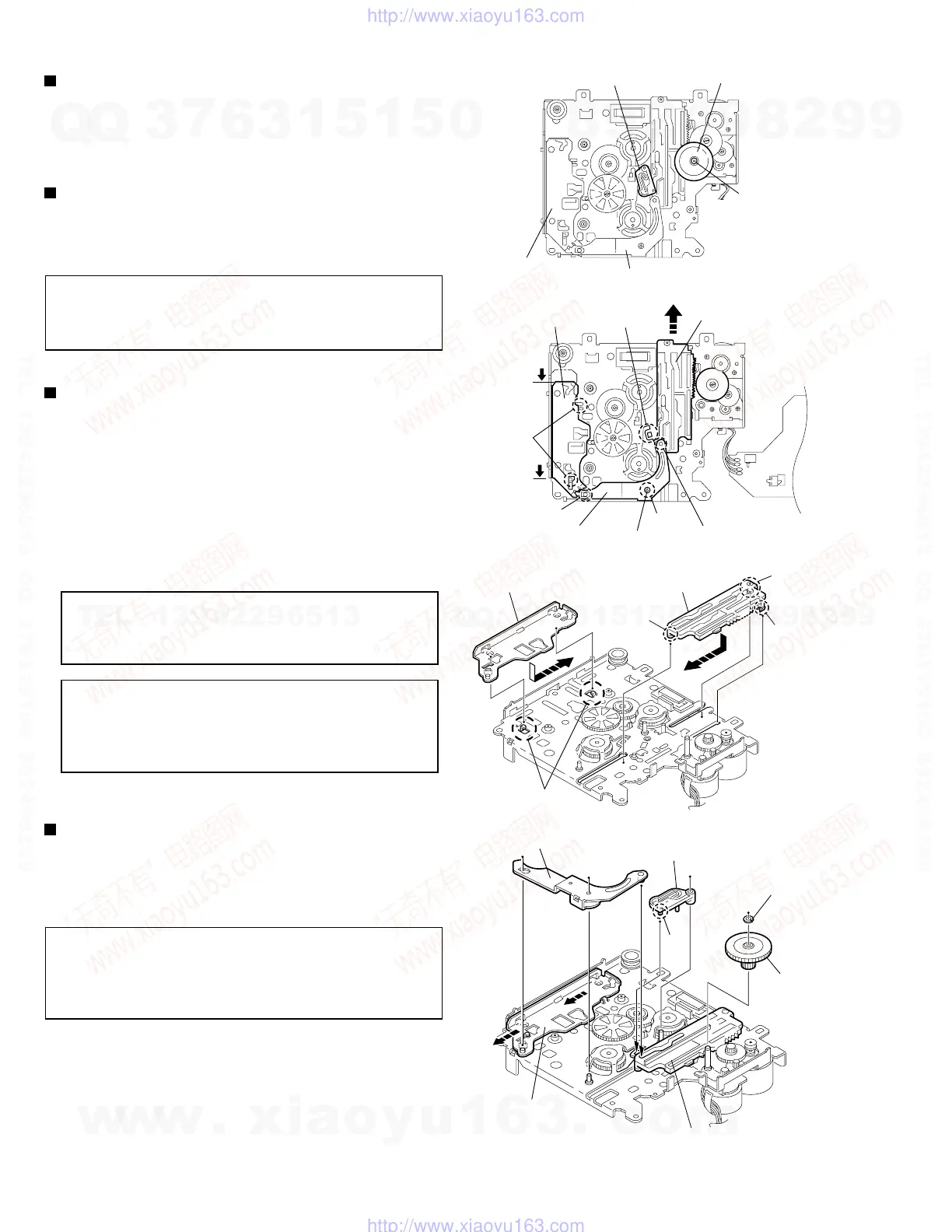

Fig.28
Fig.30
Fig.31
Fig.29
Polywasher
Mode switch actuator
Mode gear
Direction plate
Direction link
Mode rack assembly
Slot w
Direction plate
Joints a'
Joint z
Direction link
Polywasher
Joint y
Joint x
Direction plate Mode rack assembly
Joint c'
Joint b'
Joint b'
Polywasher
Mode gear
Mode switch actuator
Direction link
Direction plate
Mode rack assembly
v
Joints a'
w
w
w
.
