1-15
KS-FX711/KS-FX511
Push in the pin d’ of the gear base assembly on the
upper side of the body and move the reflector gear
toward the bottom, then pull out.
Remove the polywasher on the bottom and pull out
the take up gear.
Move the gear base assembly in the direction of the
arrow to release it from the two slots e’ of the main
chassis.
1.
2.
3.

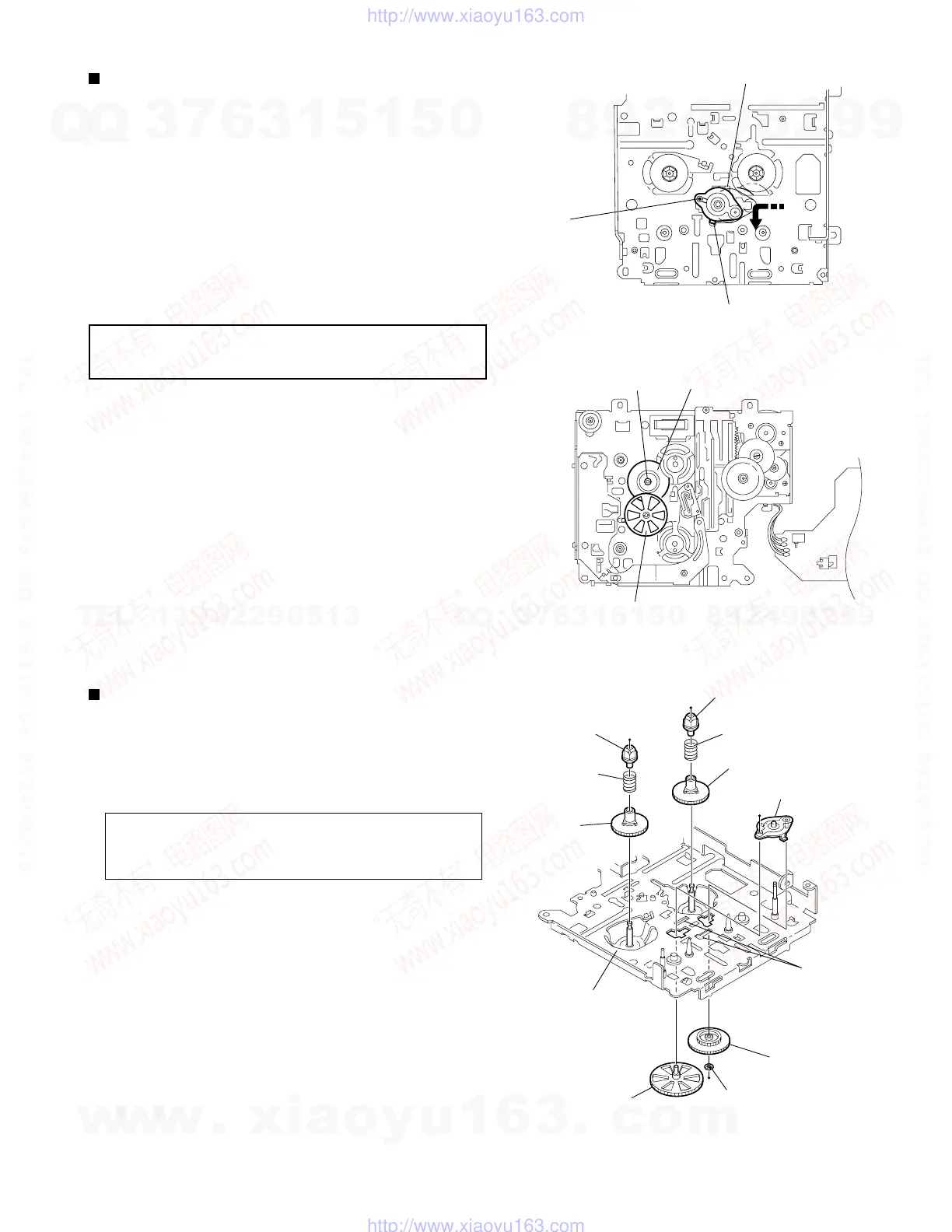

Removing the gear base assembly / take
up gear / reflector gear (See Fig.32 to 34)
Draw out the reel driver from the shaft on the main
chassis and remove the reel driver spring and the
reel spindle respectively.
1.
Removing the reel driver / reel spindle
(See Fig.34)
The reel driver is damaged when
removed. Please replace with a new
one.
CAUTION:
The parts are damaged when removed.
Please replace with new ones.
REFERENCE:
Fig.32
Fig.33
Fig.34
Gear base assembly
Pin d'
Slot e'
Slot e'
Polywasher
Reflector gear
Take up gear
Reel driver spring
Reel driver spring
Reel driver
Reel driver
Reel spindle
Reel spindle
Gear base assembly
Slots e’
Main chassis
Reflector gear
Polywasher
Take up gear
