KS-FX711/KS-FX511
Remove the eject cam plate spring.
Push the joint f‘ through the slot to remove the load
rack downward.
Move the eject cam limiter in the direction of the
arrow to release it from the boss g’ of the side
bracket assembly and from the two joints h’.
Move the eject cam plate in the direction of the arrow
to release the joint i’.
1.
2.
3.
4.
Removing the side bracket assembly
(See Fig.35 to 39)
When reassembling, confirm operation of
each part before reattaching the eject cam
plate spring.
CAUTION:

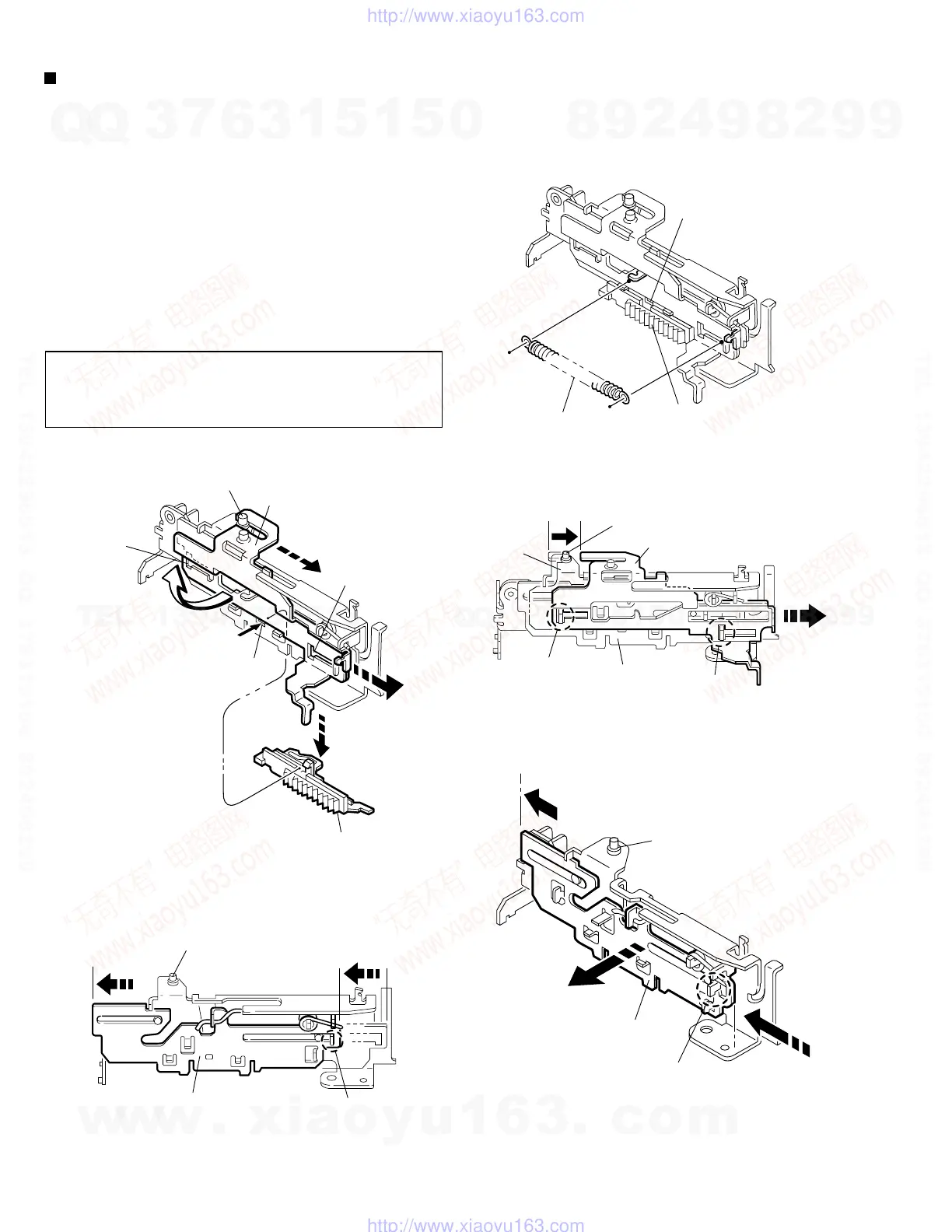

Fig.35
Fig.37
Fig.39
Fig.36
Fig.38
Joint f'
Load rack
Eject cam plate spring
Eject cam limiter
Side bracket assembly
Boss g'
Joint h'
Load rack
Joint f'
Joint h'
Boss g'
Eject cam limiter
Side bracket assembly
Joint h'
Joint h'
Eject cam plate
Side bracket assembly
Boss g'
Joint i'
Eject cam plate
Side bracket assembly
Eject cam plate
Joint i'
