KS-FX711/KS-FX511
Remove the belt at the bottom.
Remove the polywasher and pull out the mode gear.
Pull out the reduction gear (B).
Remove the polywasher and pull out the reduction
gear (A).
Remove the two screws D attaching the main motor
assembly.
Remove the two screws E attaching the sub motor
assembly.
Unsolder the wires on the reel board if necessary.
1.
2.
3.
4.
5.
6.
7.
Removing the main motor assembly /
sub motor assembly (See Fig.40 to 42)
When reassembling, adjust the length of the
wires extending from the sub motor
asswmbly by attaching them to the side of
the sub motor assembly with the wires
extending from the main motor assembly
using a spacer.
CAUTION:

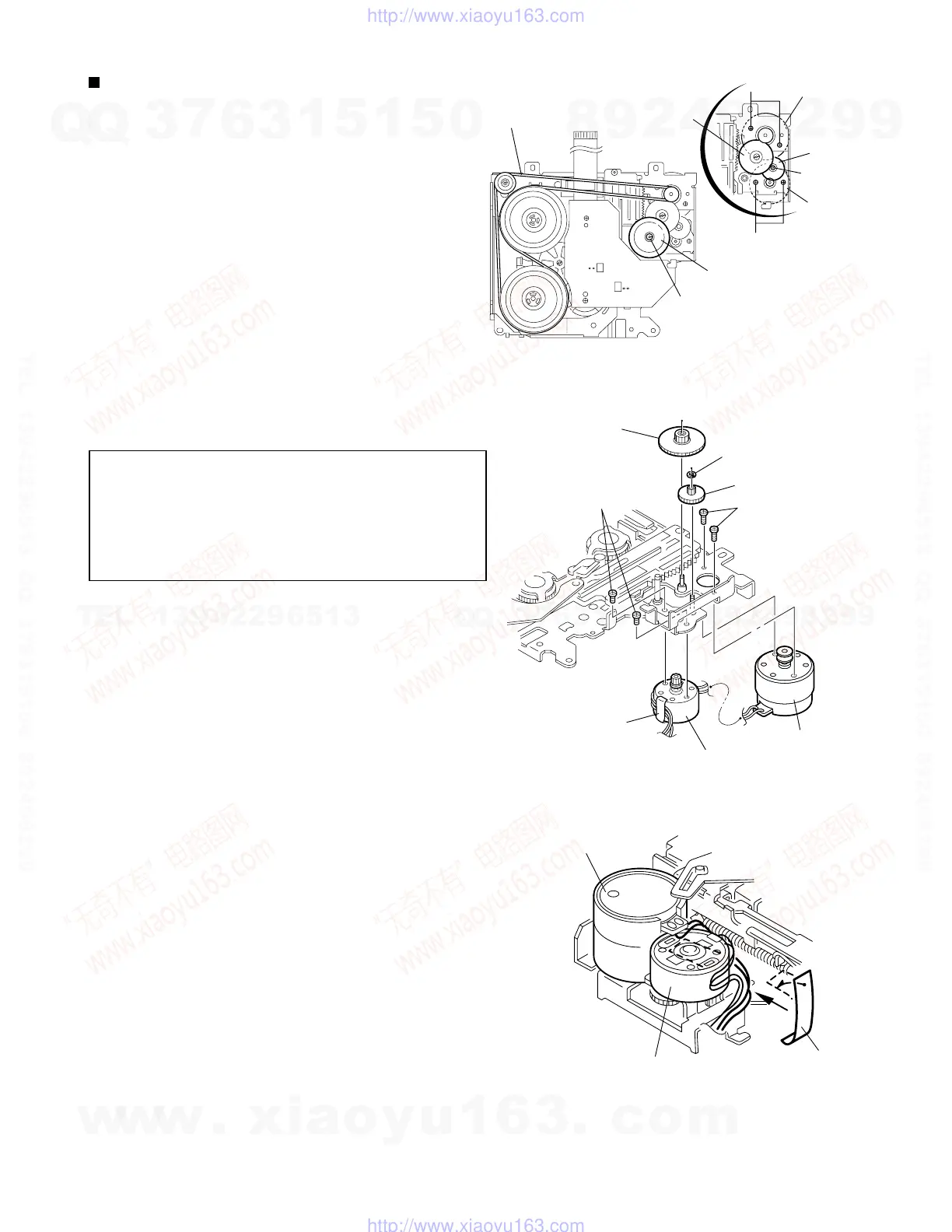

Fig.40
Fig.41
Fig.42
Belt
Polywasher
Polywasher
Polywasher
Mode gear
Reduction
gear (A)
Main motor
assembly
D
Sub motor
assembly
E
Reduction gear (B)
Reduction gear (B)
Reduction gear (A)
E
D
Main motor assembly
Sub motor assembly
Spacer
Spacer
Sub motor assembly
Main motor assembly
