KS-LH4R
1-3
Press the release switch and remove the front panel
unit in the direction of the arrow.
1.
Disassembly method
Removing the front panel unit

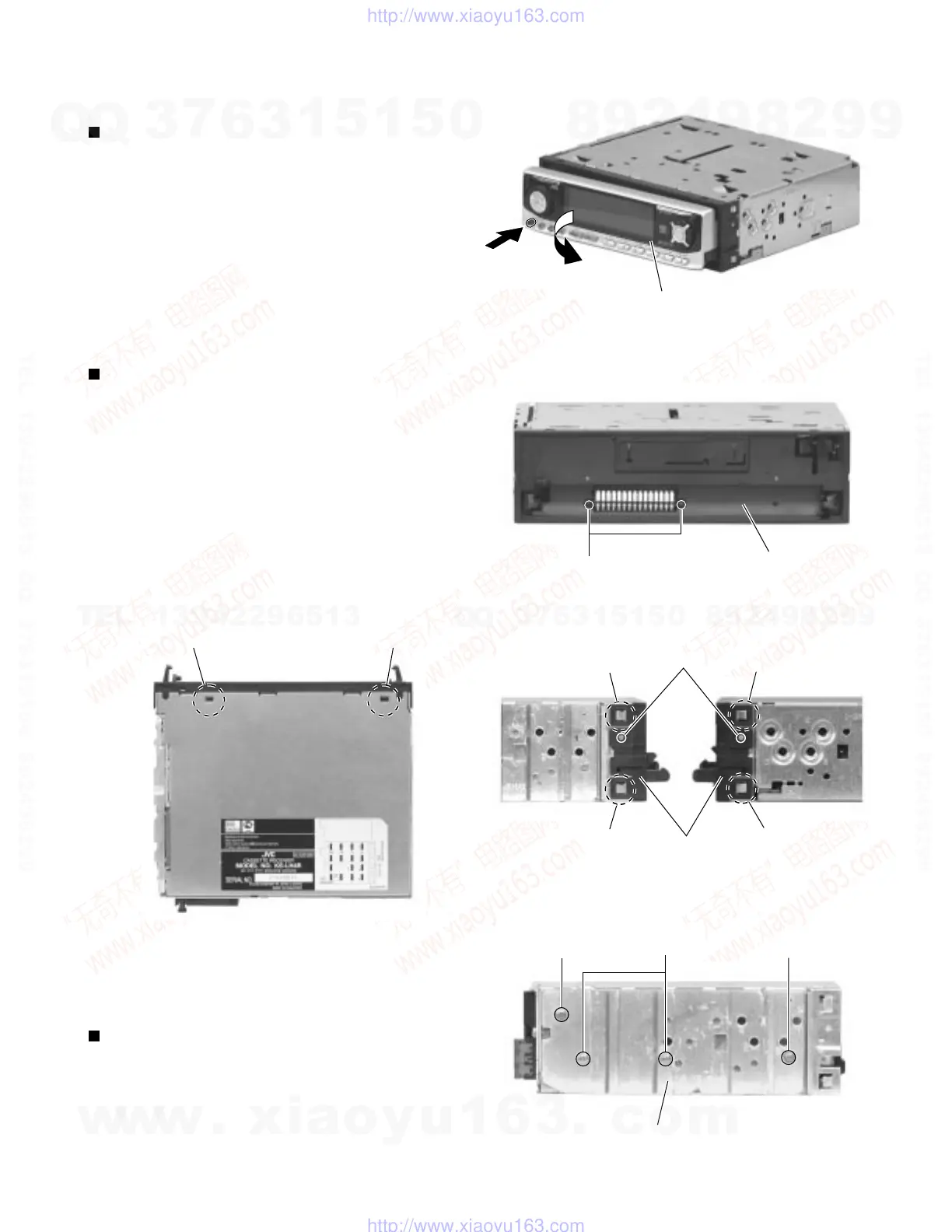

(See Fig.1)
Remove the two screws A attaching the front
chassis.
Remove the two screws B on each side of the body.
Release the two joints a and the two joints b on the
sides. Release the two joints c at the bottom and
remove the front chassis toward the front.
1.
2.
3.
Removing the front chassis
(See Fig.2 to 4)
Remove the four screws C attaching the heat sink
on the left side of the body, and remove the heat
sink.
1.
Removing the heat sink (See Fig.5)
Joint c
Heat sink
Fig.2
Fig.1
Fig. 3
Fig.4
Fig. 5
Front panel unit
Front chassis
A
B
Front chassis
Joint a
Joint a
Joint b
Joint b
C
C
C
Joint c
