25

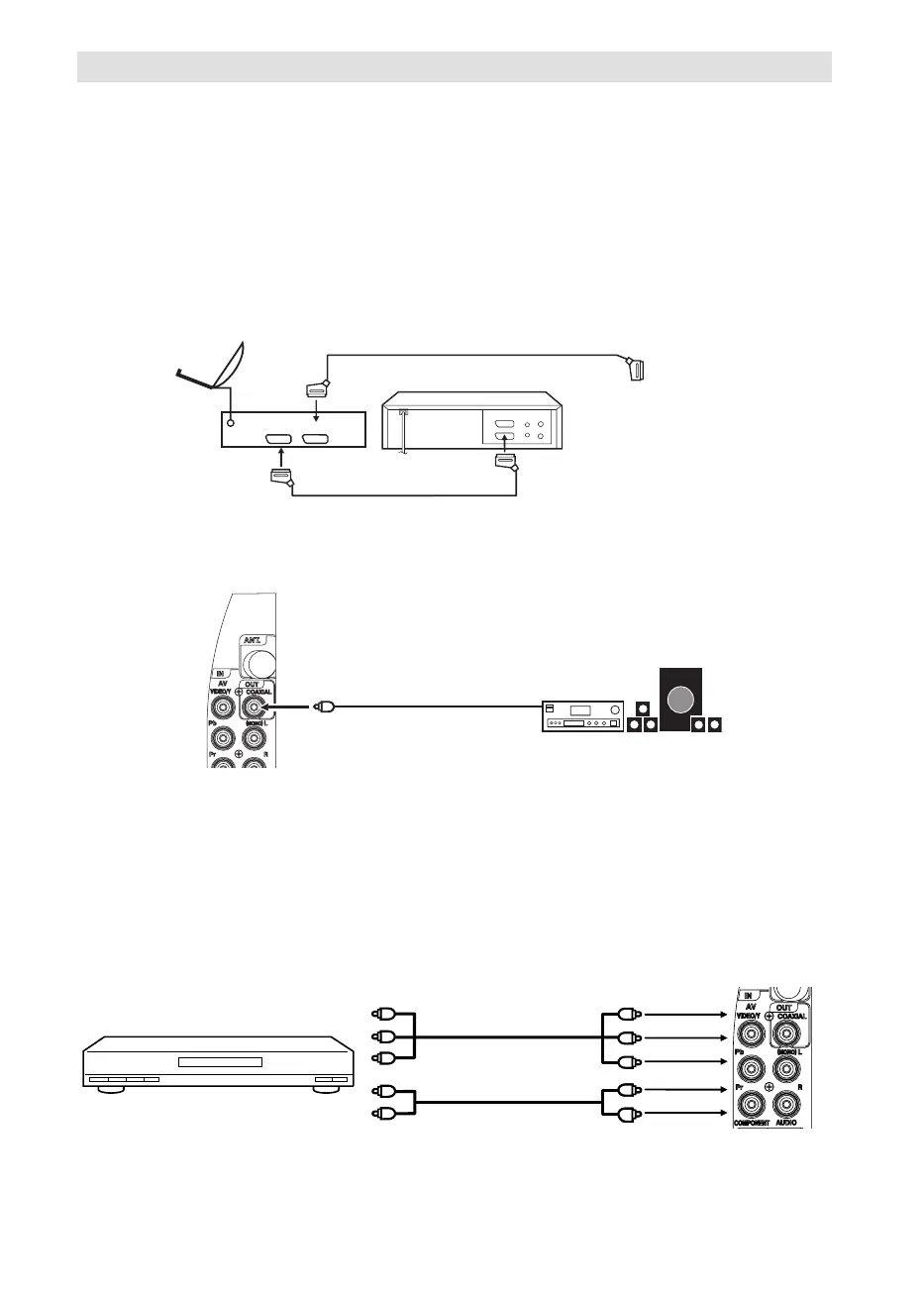

Connection to other equipment
VCR
TV
(All illustrated SCART cables and
antenna cables are not supplied)
TV
Satellite antenna
Satellite
receiver
Video recorder
2. Connecting to other equipment
Please connect your satellite-receiver or DVD player via SCART. Make sure your SCART cable’s cross-
section is at least 1 cm or more. SCART cables with less thickness may cause visible noise.
Please make the following settings inside your receiver’s / DVD-player’s setup-menu:
Video signal: RGB
TV-Format: 16:9
If you miss to make these settings properly, picture quality will be inferior and parts of the picture
might be missing. This is not a fault of this TV-set.
In case you need help to make this adjustment with your satellite-receiver / DVD-player, please consult
the related instructions or contact the supplier or maker of those apparatus for support.
Please use the satellite’s remote-control handset to select Teletext or desired TV-station. Generally it is
not possible to store satellite TV-stations into a standard TV.
If the TV does not automatically switch to SCART, please select INPUT SCART manually, as seen on page 11.
Y
Pb
Pr
4. Connecting to a DVD player or other AV device with Component Video outputs
If your DVD player (or other device) has Component Video output jacks, use a suitable set of leads (RCA/
Phono) to connect these to the Component Video inputs on this TV as shown - it can greatly enhance
the picture quality and performance. Please remember that you will also need to connect separate leads
(RCA/Phono) for the audio signals.
Component output
Audio output
Video cable (not supplied)
To COMPONENT IN
TV (Side view)
Note:
The Component Video input of this unit are for use with equipment which outputs interlaced signals (PAL: 576i/1080i or
NTSC: 480i/1080i) and progressive signals (PAL: 576p/720p or NTSC: 480p/720p).
•
DVD player
Audio cable (not supplied)
3. Connecting an digital audio system
Connect Digital-amplifier to the Digital-Audio-output of the TV-unit with a coaxial digital cable.
TV (Side view)
Audio digital cable
(not supplied)
Surround sound amplifier
system
3IA0951A_EN.indd 253IA0951A_EN.indd 25 11/30/11 10:33:30 AM11/30/11 10:33:30 AM
