Preparation

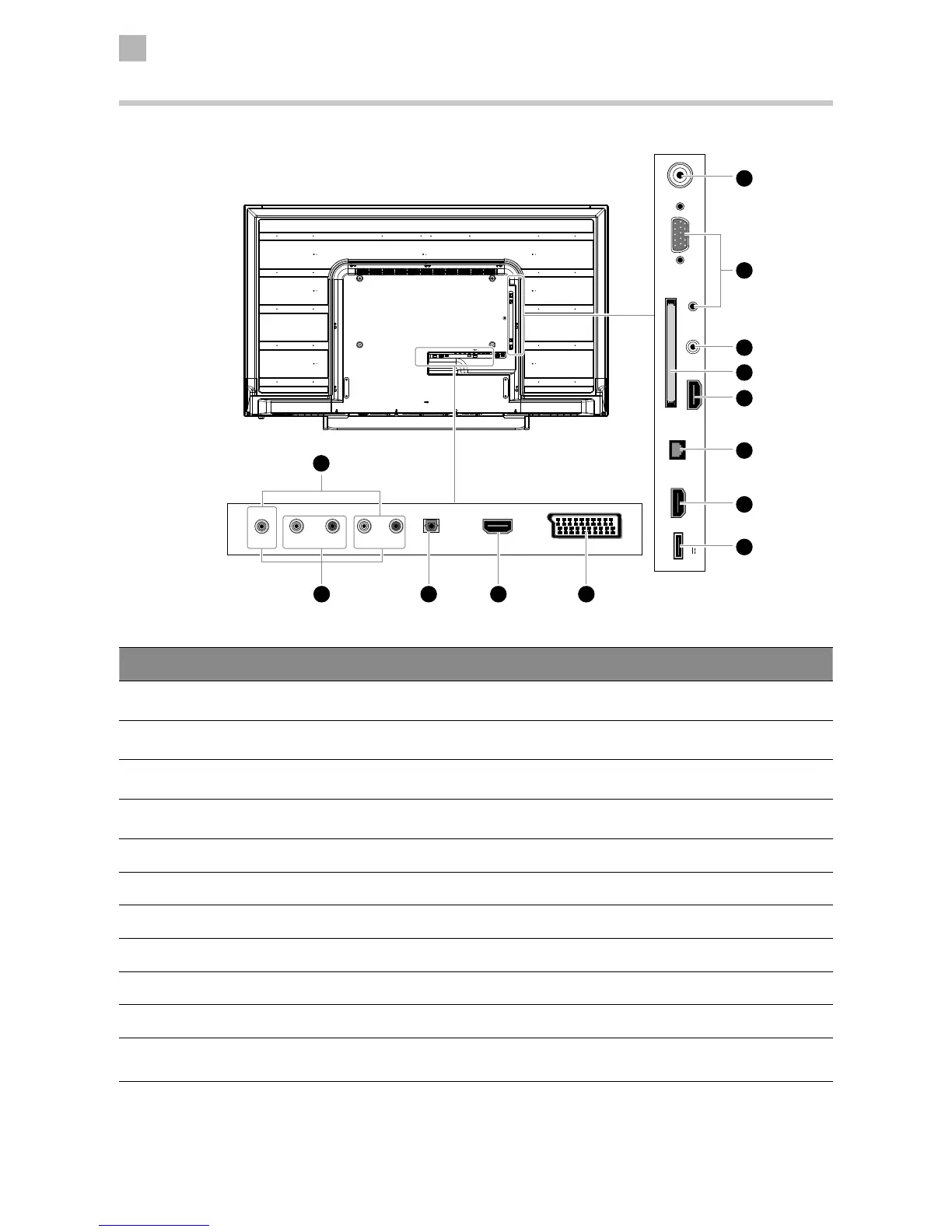

Rear View and Sockets
Item Description
1 VIDEO / AUDIO (L/R)
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
2 Y, Pb, Pr / AUDIO (L/R)
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
3 Digital Audio Output
(optical)
Connects to the audio socket on the digital/standard 5.1 audio system.
4 HDMI1(ARC) / HDMI2 /
HDMI3
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
5 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
6 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
7 PC IN / PC AUDIO Connects to a computer or other devices with a VGA interface.
8 HEADPHONE Connects to the headphones.
9 COMMON INTERFACE Allows the insertion of a Common Access Module.
10 LAN Connects your TV to the internet router by an Ethernet cable.
11 USB
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
