Connections

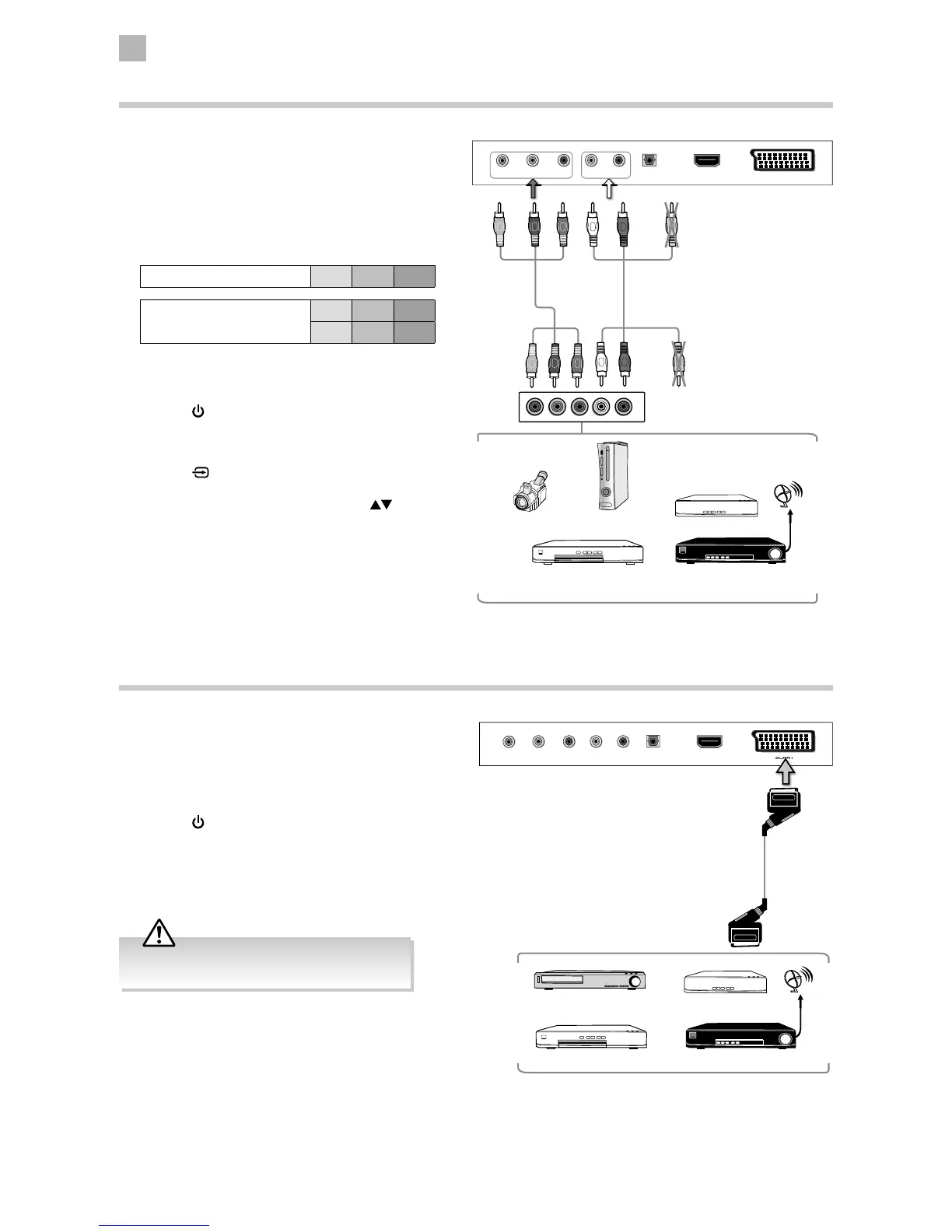

Connecting an AV Device Using a Component (YPbPr) Cable
1. Connect the component cable from the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV Y Pb Pr
Video output ports on DVD
player
Y Pb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press the
button on the right bottom panel under
the TV frame or on the remote control to turn on your
TV.
5. Press the
button on the right bottom panel under
the TV frame or the INPUT button on the remote
control to display the Source List. Use the
buttons
to select YPbPr and then press the OK button to
confirm.
RLPb Pr
SCART
HDMI3
Y
VIDEO
Digital Audio Output
(optical)
L
R
COMPONENT
OUT
Y
Pr
Pb
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Component Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb
Pr/Cr
Y
Rear Bottom View of TV
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Analogue Game
Console
Satellite Receiver
Satellite
antenna
cable
Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right bottom panel under
the TV frame or on the remote control to turn on your
TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
RLPb Pr
SCART
HDMI3
Y
VIDEO
Digital Audio Output
(optical)
SCART Cable
(not included)
To Next Page
