Connection
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Make sure the cables are firmly inserted.
• In the connection illustrations shown below, some cables may not be included with the projector (see
"Shipping contents"). They are commercially available from electronics stores.
The illustrations below are for reference only. The rear connecting jacks available on the
projector vary with each projector model.

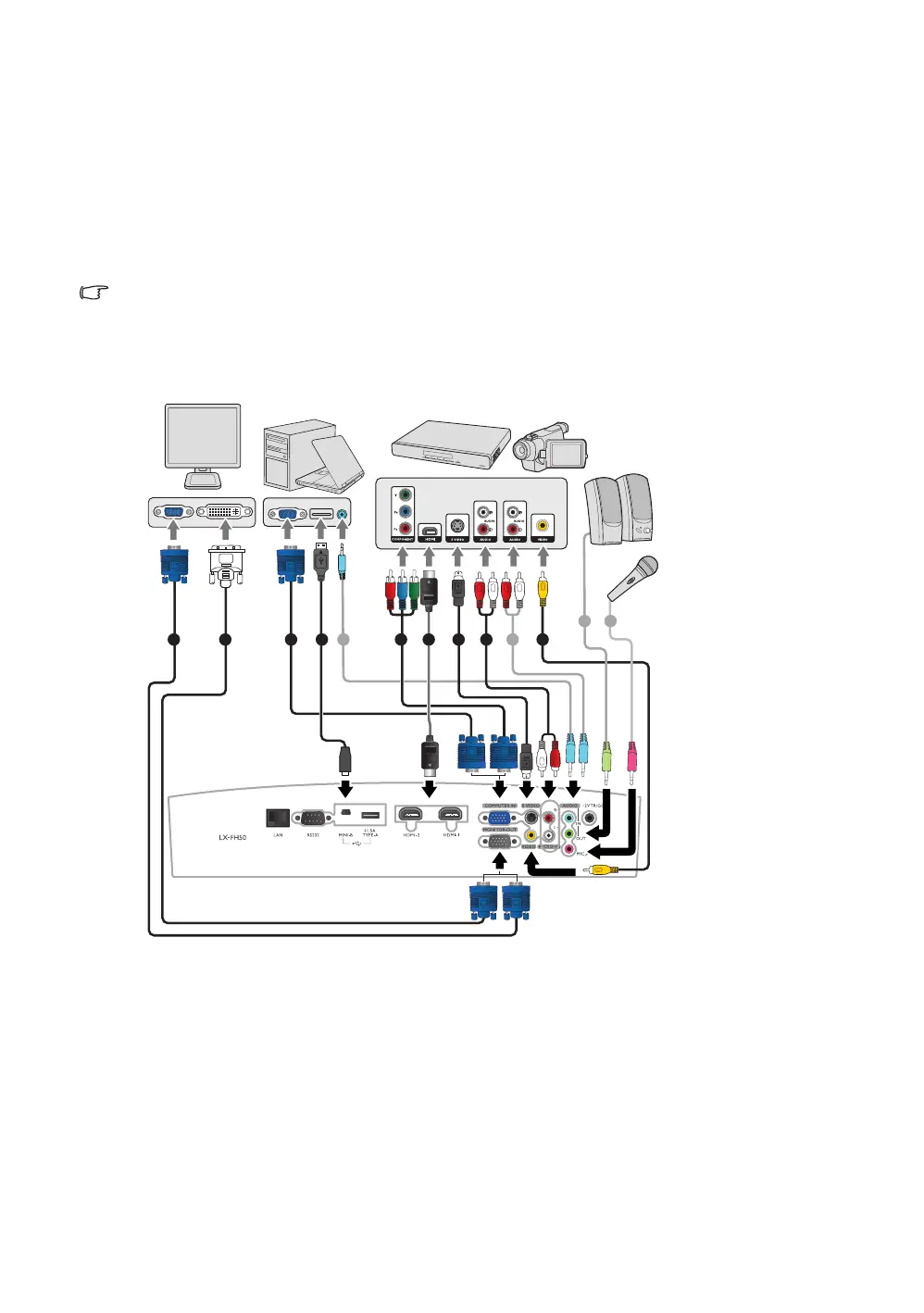

1. VGA cable
2. VGA to DVI cable
3. USB cable
4. Component Video to VGA (D-Sub)
adapter cable
5. HDMI cable
6. S-Video cable
7. Video cable
8. Audio cable
9. Microphone
8 7
8
1 6
3
8
8
54
9
1
2
Notebook or desktop computer
(VGA)
A/V device
Speakers
(DVI)
or
or
