JVC MX-GB5 Service Manual

1-20 (No.MB160)
3.2 CD changer mechanism assembly section
• Prior to performing the following procedures, remove the CD changer mechanism assembly. (See "3.1.2 Removing the CD changer
mechanism assembly".)
3.2.1 Removing the tray disc
(See Figs.1 and 2)
(1) Turn the gear cam on the bottom side of the CD changer
mechanism assembly in the direction of the arrow and
draw the tray disc toward the front until it stops. (See Figs.1
and 2.)
(2) Disconnect the card wire from the connector CW103
on the
CD sub board. (See Figs.1 and 2.)
(3) Push down the two tray stoppers and pull out the tray disc.
(See Fig.2.)

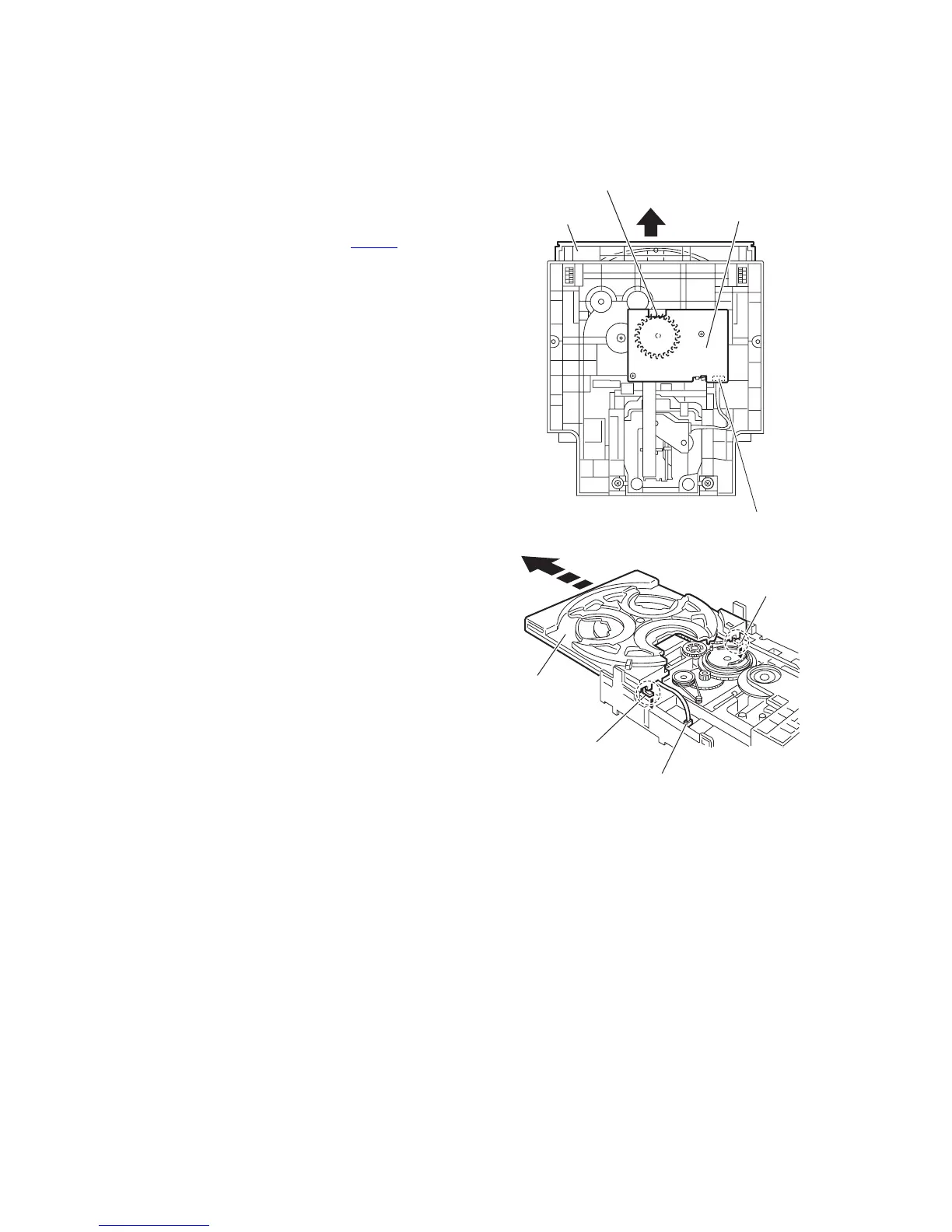

Fig.1
Fig.2
Tray disc
CD sub board
Gear cam
CW103
Tray stoppe
r
Tray stopper
CW103
(on the CD sub board)
Tray disc
