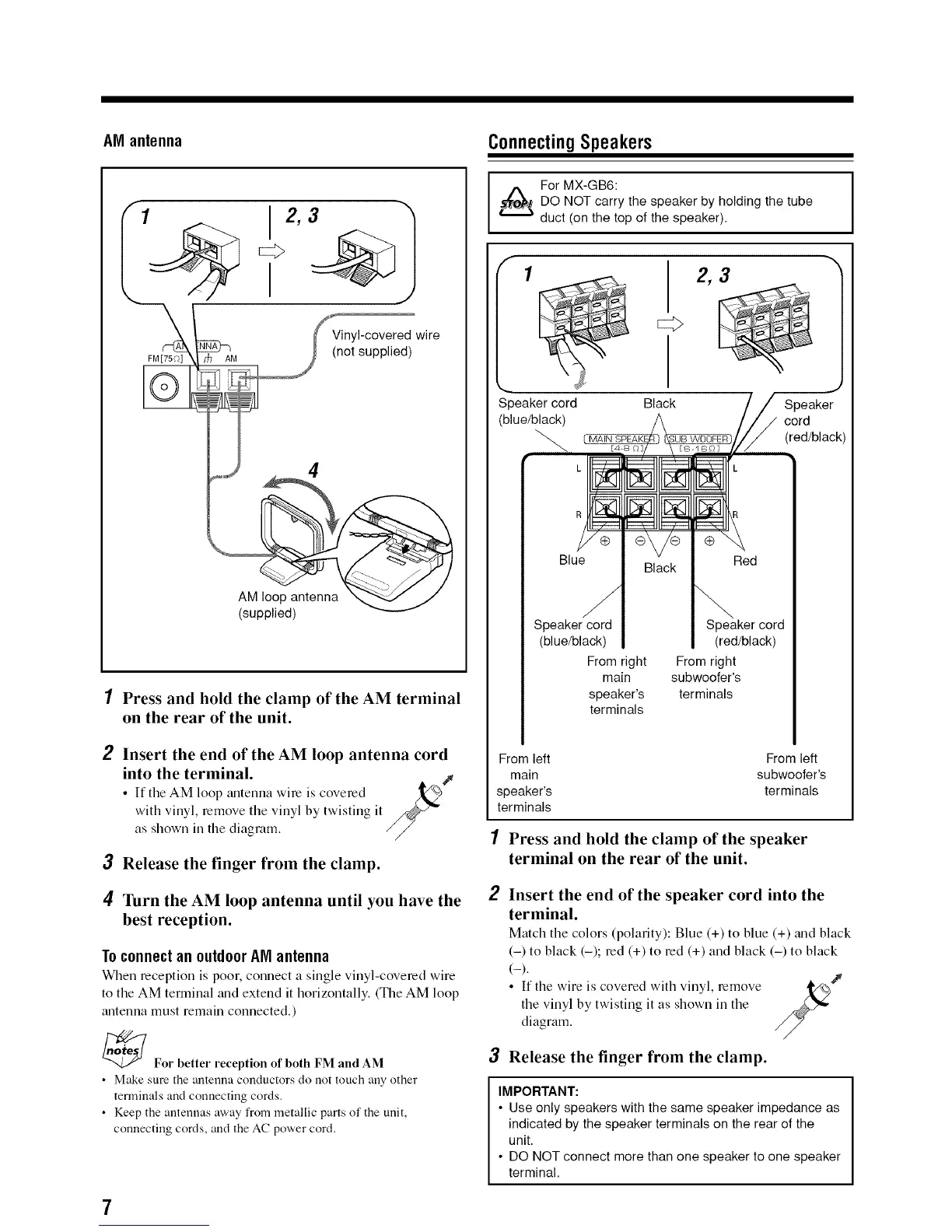

AM antenna
Connecting Speakers
1
FM[75f)] AM
Vinyl-covered wire
(not supplied)
4
AM loop antenna
(supplied)
1 Press and hold the clamp of the AM terminal
on the rear of the unit.
2 Insert the end of the AM loop antenna cord
into the terminal.
• If the AM loop tmtenna wire is covered
with vinyl, remove the vinyl by twisting it
as shown in the diagram. //
3 Release the finger from the clamp.
4 Turn the AM loop antenna until you have the
best reception.
Toconnectan outdoor AMantenna
When reception is poor, connect a single vinyl-covered wire
to the AM terminal and extend it horizontally. (The AM loop
antenna must remain connected.)
_For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
For MX-GB6:
DO NOT carry the speaker by holding the tube
duct (on the top of the speaker).
1
Speaker cord
(blue/black)
CMAIN
Black
2,3
Speaker
cord
(red/black)
Black
Speaker cord Speaker cord
(blue/black) (red/black)
From right From right
main subwoofer's
speaker's terminals
terminals
From left From left
main subwoofer's
speaker's terminals
terminals
1 Press and hold the clamp of the speaker
terminal on the rear of the unit.
2
Insert the end of the speaker cord into the
terminal.
Match the colors (polarity): Blue (+) to blue (+) _md black
(-) to black (-); red (+) to red (+) and black (-) to black
(-).
• If the wire is covered with vinyl, remove _/%J
the vinyl by twisting it as shown in the
¢"
diagram.
3 Release the finger from the clamp.
IMPORTANT:
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the
unit.
• DO NOT connect more than one speaker to one speaker
terminal.
