Continued

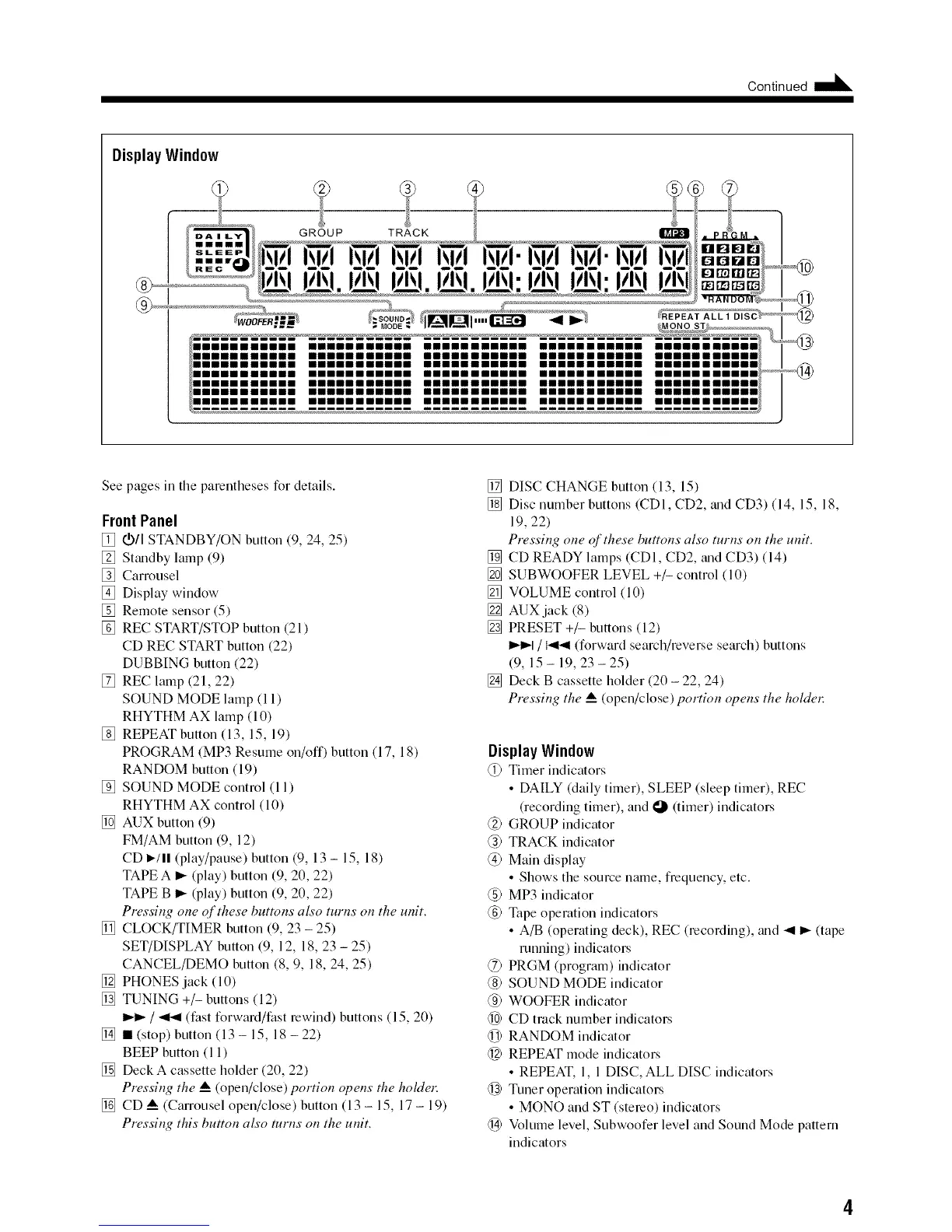

Display Window
®
See pages in the parentheses for details.
FrontPanel
[] VII STANDBY/ON button (9, 24, 25)
[] Sttmdby lamp (9)
[] Carrousel
[] Display window
[] Remote sensor (5)
[] REC START/STOP button (21)
CD REC START button (22)
DUBBING button (22)
[] REC lamp (21, 22)
SOUND MODE lamp (11)
RHYTHM AX lamp (10)
[] REPEAT button (13, 15, 19)
PROGRAM (MP3 Resume on/off) button (17, 18)
RANDOM button (19)
[] SOUND MODE control (11)
RHYTHM AX control (10)
[] AUK button (9)
FM/AM button (9, 12)
CD I_/II (play/pause) button (9, 13 - 15, 18)
TAPE A I_ (play) button (9, 20, 22)
TAPE B _ (play) button (9, 20, 22)
Pressing one qf these buttons also turns on the unit.
[] CLOCK/TIMER button (9, 23 - 25)
SET/DISPLAY button (9, 12, 18, 23 - 25)
CANCEL/DEMO button (8, 9, 18, 24, 25)
[] PHONES jack (10)
[] TUNING +/- buttons (12)
I_1_ / _ (fast forward/fast rewind) buttons (15, 20)
[] • (stop) button (13 - 15, 18 - 22)
BEEP button (11)
[] Deck A cassette holder (20, 22)
Pressing the A__(open/close) portion opens the holdel:
[] CD _ (Carrousel open/close) button (13 - 15, 17 - 19)
Pressing this button also turns on the unit.
[] DISC CHANGE button (13, 15)
[] Disc number buttons (CDI, CD2, trod CD3) (14, 15, 18,
19, 22)
Pressing one ofl these buttons also turns on the unit.
[] CD READY lamps (CDI, CD2, trod CD3) (14)
[] SUBWOOFER LEVEL +/- control (10)
[] VOLUME control (10)
[] AUX jack (8)
[] PRESET +/- buttons (12)
I_1 / 141_1(forward search/reverse search) buttons
(9, 15- 19,23-25)
[] Deck B cassette hokler (20 - 22, 24)
Pressing the _ (open/close) portion opens the holdel:
Display Window
@ Timer indicators
• DAILY (daily timer), SLEEP (sleep timer), REC
(recording timer), and O 0imer) indicators
@ GROUP indicmor
@ TRACK indicator
@ Main display
• Shows the source name, frequency, etc.
@ MP3 indicmor
@ Tape operation indicmors
• A/B (operming deck), REC (recording), and _1 _ (tape
running) indicators
@ PRGM (program) indicator
@ SOUND MODE indicmor
@ WOOFER indicmor
@ CD track number indicators
@ RANDOM indicmor
@ REPEAT mode indicators
• REPEAT, 1, 1 DISC, ALL DISC indicators
@ Tuner operation indicators
• MONO and ST (stereo) indicators
@ Volume level, Subwoofer level and Sound Mode pattern
indicators
To Next Page
