JVC MX-J200 - Removing Power Transformer Assembly

MX-J200
1-10
Prior to performing the following procedure, remove
the metal cover and the CD changer mechanism
assembly.
Disconnect the harness from connector CN901A and
CN901B on the inside of the main board.
Cut off the tie band g of the power transformer
assembly and unsolder the power cord.
(Make sure to bundle the wires after repair.)
Remove the four screws M attaching the power
transformer assembly.
When removing the power transformer assembly
with the power cord, remove the rear panel and pull
out the power cord stopper from the bottom chassis
upward.
1.
2.
3.

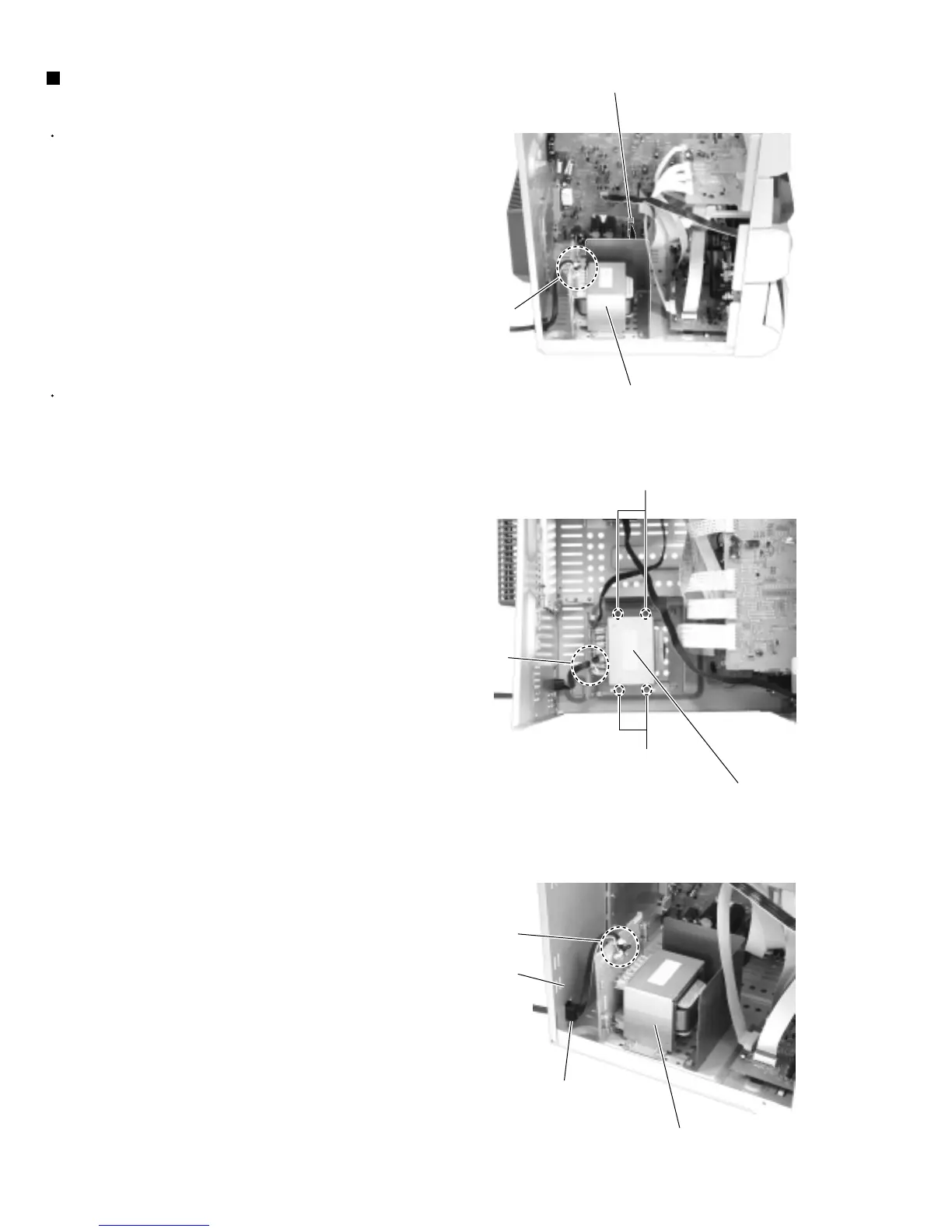

Removing the power transformer
assembly (See Fig.22 to 24)
Fig.22
Fig.23
Fig.24
M
Power transformer assembly
Tie band g
CN901A,CN901B
M
Power transformer assembly
Tie band g
Tie band g
Power transformer assembly
Power cord stopper
Rear panel
