JVC MX-J200 - Removing each Board in the Front Panel Assembly; Removing the Display Board and the Side Brackets

MX-J200
1-12
Disconnect the card wires from connector CN701,
CN702, CN704 and CN706 and, then the harness
from CN708 on the display board.
Remove the four screws Q on the bracket attaching
the display.
Remove the two screws R attaching the display
board and front panel assembly.
Remove the two screws S attaching the display
board and side brackets, then remove the side
brackets respectively.
1.
2.
3.
4.
Removing the display board and the side
brackets (See Fig.28 and 29)
Prior to performing the following procedure, remove
the display board.
Pull out the volume knob on the front of the front
panel assembly and remove the nut attaching the
volume board.
Unhook the two hooks j on the back of the front
panel assembly and detach the volume board.
1.
2.
Remove the ten screws T attaching the multi-control
board.
Unsolder FW1002 and FW1004 on the multi-control
board. Disconnect the harnesses extending from the
power switch board and the eject switch board
respectively.
1.
2.
Removing each board in the front panel
assembly (See Fig.30 and 31)
~Removing the multi-control board~
(See Fig.30)
~Volume board~ (See Fig.30 and 31)
Remove the screw W attaching the headphone jack
board.
1.
Remove the three screws V attaching the power
switch board.
Unsolder FW1002 on the power switch board and
disconnect the harness extending from the multi-
control board.
1.
2.
Remove the four screws U attaching the eject switch
board.
Unsolder FW1004 on the eject switch board and
disconnect the harness extending from the multi-
control board.
1.
2.
~Eject switch board ~ (See Fig.30)
~Power switch board~ (See Fig.30)
~Headphone jack board~ (See Fig.30)
Prior to performing the following procedure, remove
the metal cover, CD changer mechanism assembly
and the front panel assembly.

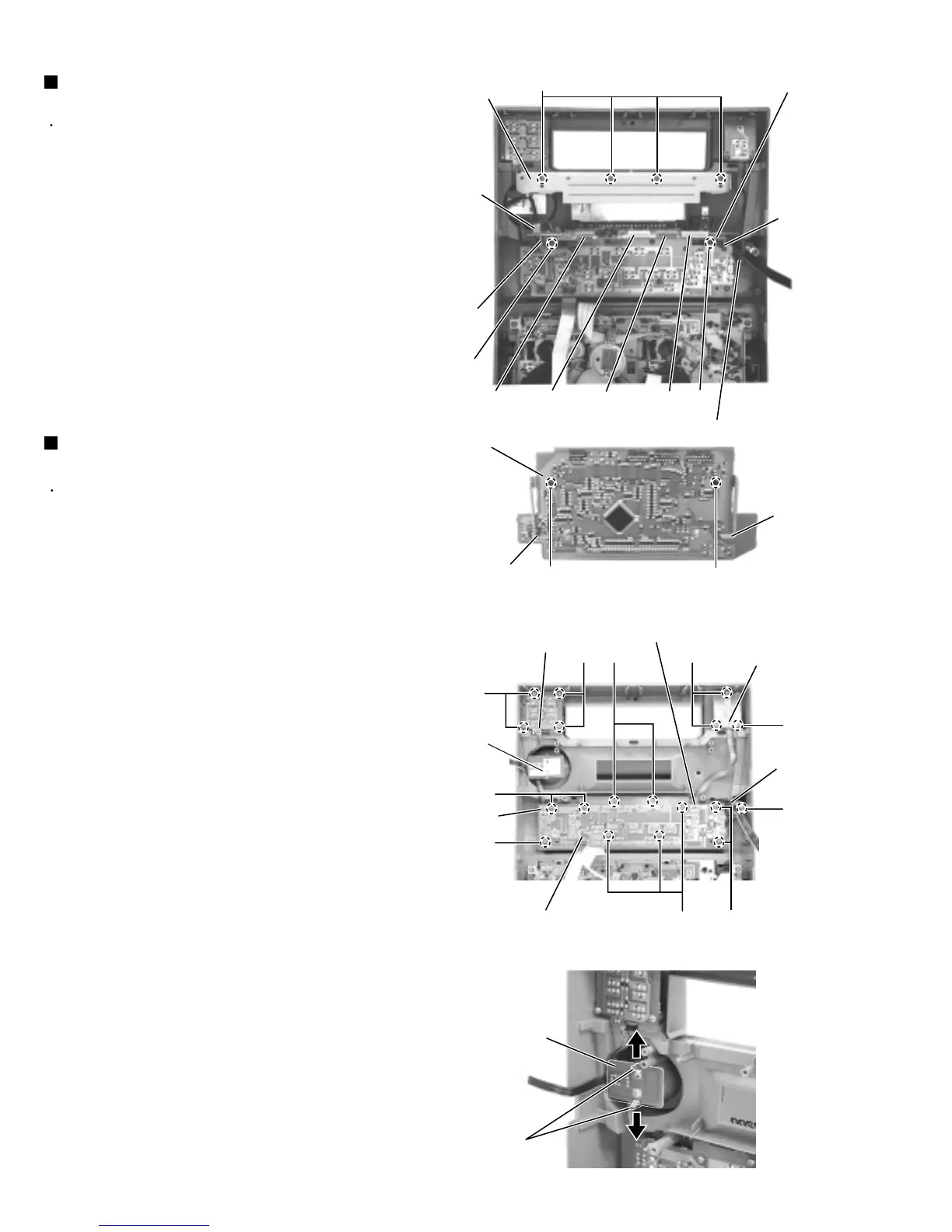

Fig.28
Q
S
CN706
S
CN704
Display board
Bracket
Headphone jack board
CN708
Fig.30
V
T
V
U
U
T
T
Power switch board
FW1002
Eject switch board
FW1004
Volume
board
FW1002
Multi-control board
T
T
W
Headphone
jack board
Fig.31
Volume board
Hooks j
FW1004
Side
bracket
Side
bracket
R
R
Fig.29
Side
bracket
Side
bracket
Display board
(Bottom)
CN702 CN701
