Prior to performing the following procedures, remove
the metal cover.
Remove the two screws C attaching the CD changer
mechanism assembly on the top of the body.
Disconnect the card wire from connector CN303 on
top of the main board.
Rlease the harness from the clamp on the lower part
of the CD changer mechanism assembly.
Remove the plastic rivet a fixing the main board to
the front assembly on the left side of the body.
Remove the two screws D from the rear panel.
Detach backward the front part of the CD changer
mechanism assembly while pulling the front panel
assembly and the rear panel outward, then pull out
the upward the rear part of the CD changer
mechanism assembly.
1.
2.
3.
4.
5.
6.

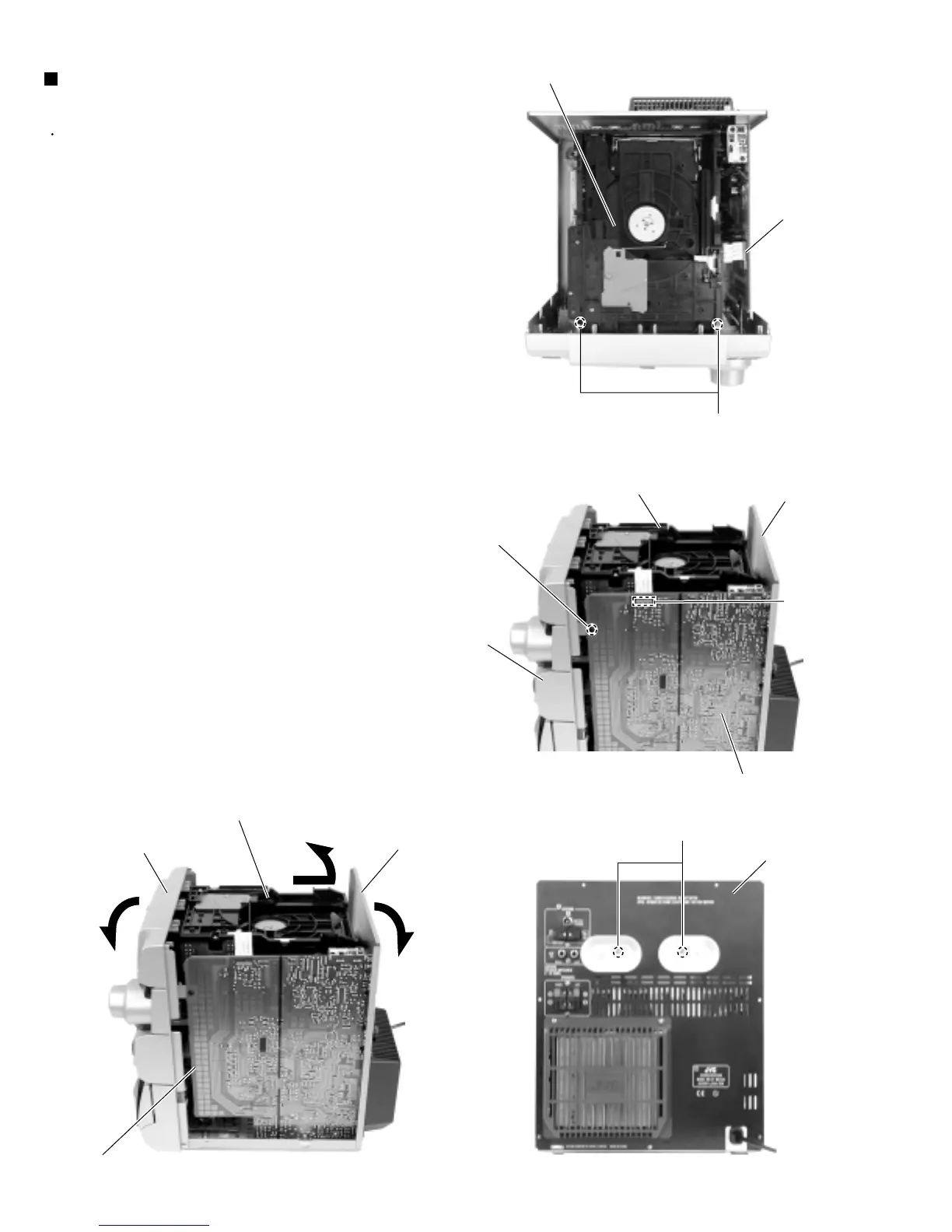

Removing the CD changer mechanism
assembly (See Fig.4 to 7)
Fig.6
Fig.5
Fig.4
Fig.7
Pull outward
C
Main board
CN303
Plastic rivet a
CN303
CD changer mechanism assembly
Rear panel
Front panel
D
Rear panel
CD changer mechanism assembly
CD changer mechanism assembly
Rear panel
Front panel assembly
Pull outward
Main board
Main board
