MX-K35V
1-14
Prior to performing the following procedure, remove
the top cover
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
Pull out the mic volume knob from the front of the
front panel assembly.
Remove the screw with the washer, T that retains
the microphone amplifier board.
Removing the microphone amplifier
board (See Fig.24 and 25)
Prior to performing the following procedure, remove
the top cover.
Also remove the CD changer unit.
1.Remove the three screws U that retain the
control/FL board from the back of the front panel
assembly.
Removing the control/FL board
(See Fig.26)

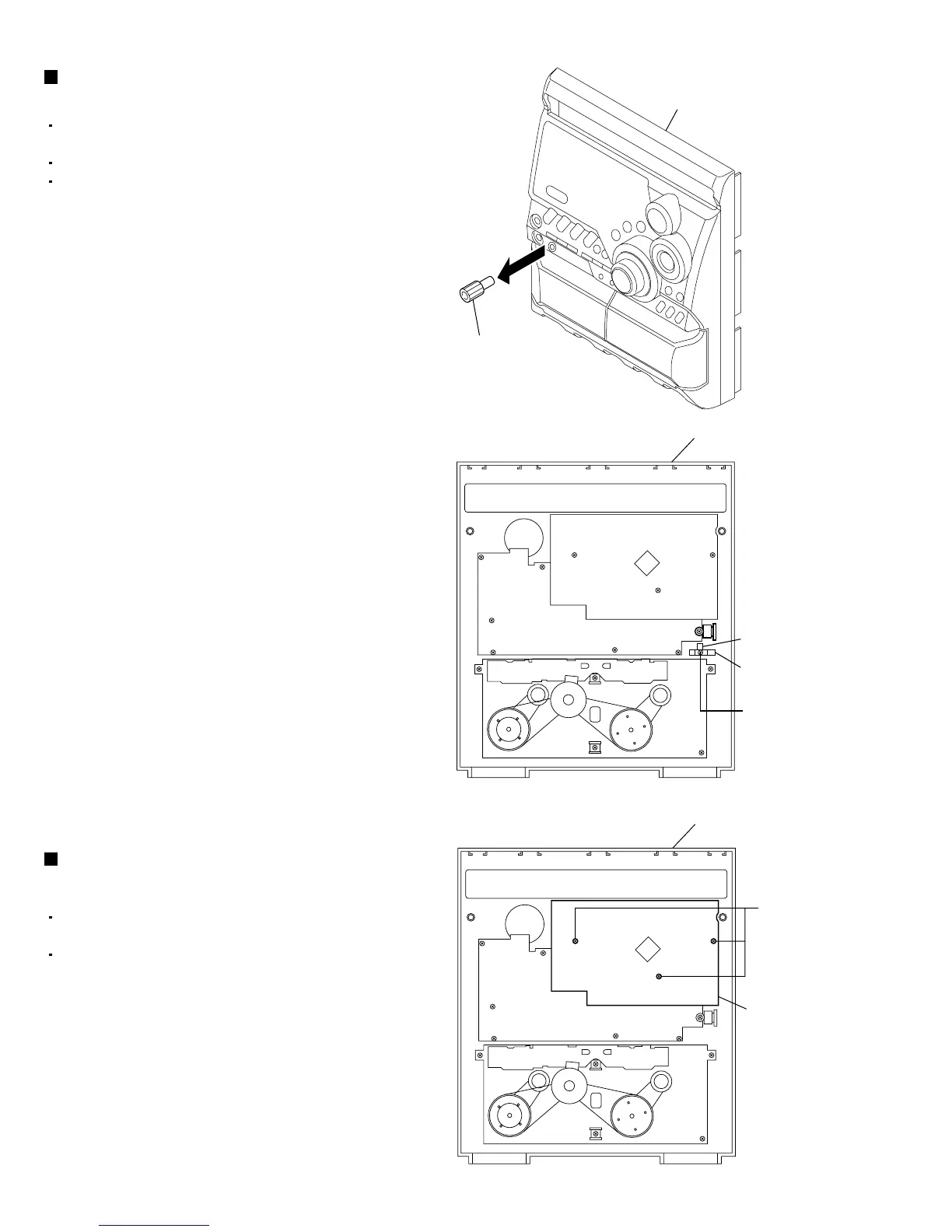

Fig.24
Fig.25
Fig.26
U
Mic volume knob
Front panel assembly
Control/FL
board
Front panel
assembly
T
Front panel
assembly
Braket
Microphone
amplifier board
To Next Page
