MX-K35V
1-15
Fig.27
Prior to performing the following procedures,
remove the top cover.
Also remove the CD changer unit.
Also remove the front panel assembly.
1.
2.
3.
4.
5.
6.

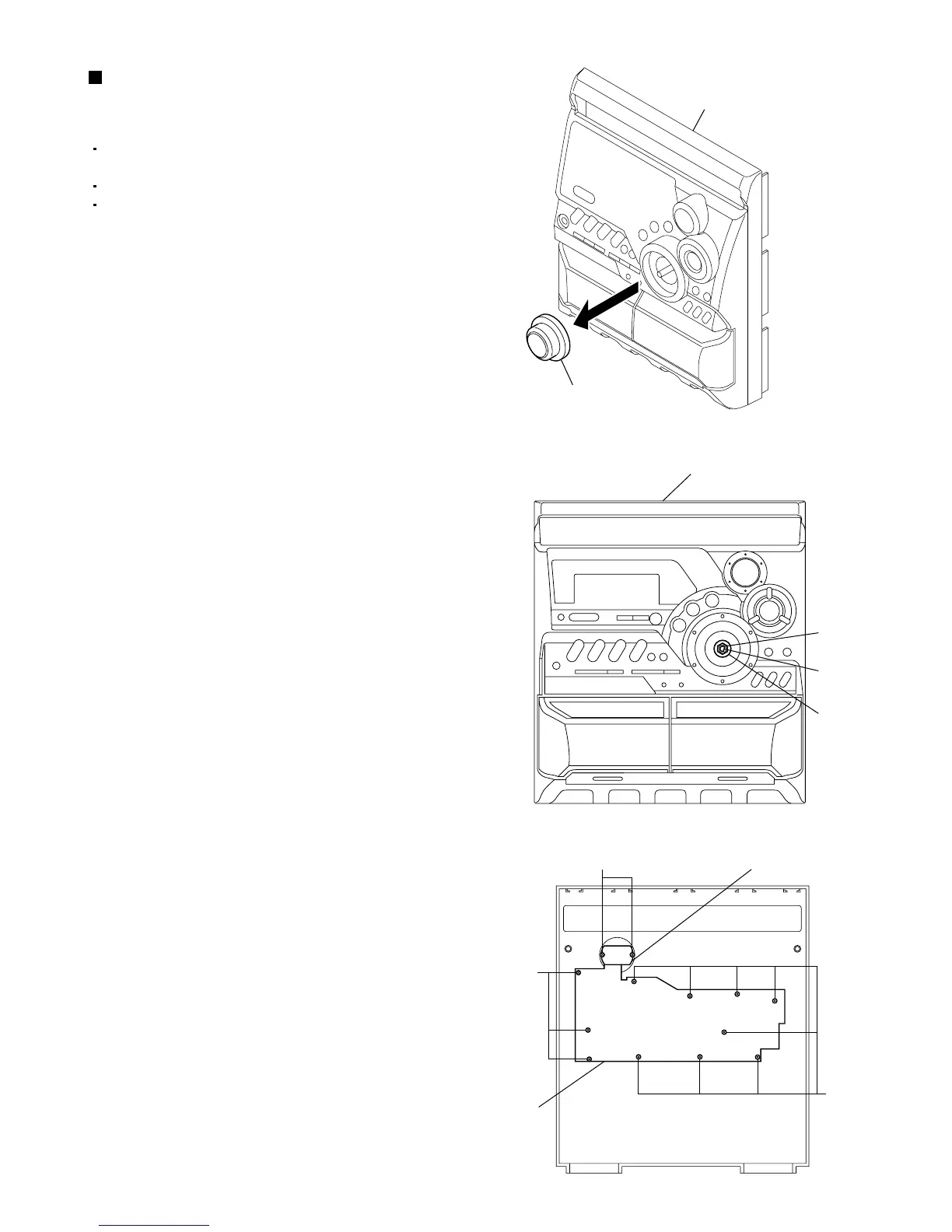

Pull out the volume control knob from the front of
the front panel assembly.
Remove the nut and washer retaining the volume
knob shaft.
Remove the three screws U retaining the control/FL
board from the back of the front panel assembly.
Remove the control/FL board.
Remove the eleven screws V retaining the switch
board.
Remove the two screws W retaining the active
bass ex. switch board.
Removing the switch board and active
bass ex. switch board
(See Fig.26 to 29)
Fig.28
Fig.29
V
V
W
Active bass ex. switch board
Switch board
Volume knob
Front panel assembly
Front panel
assembly
Nut
Washer
Volume
shaft
To Next Page
