JVC MX-K35V - Page 46

AB C
1
2
3
4
5
MX-K35V
2-3

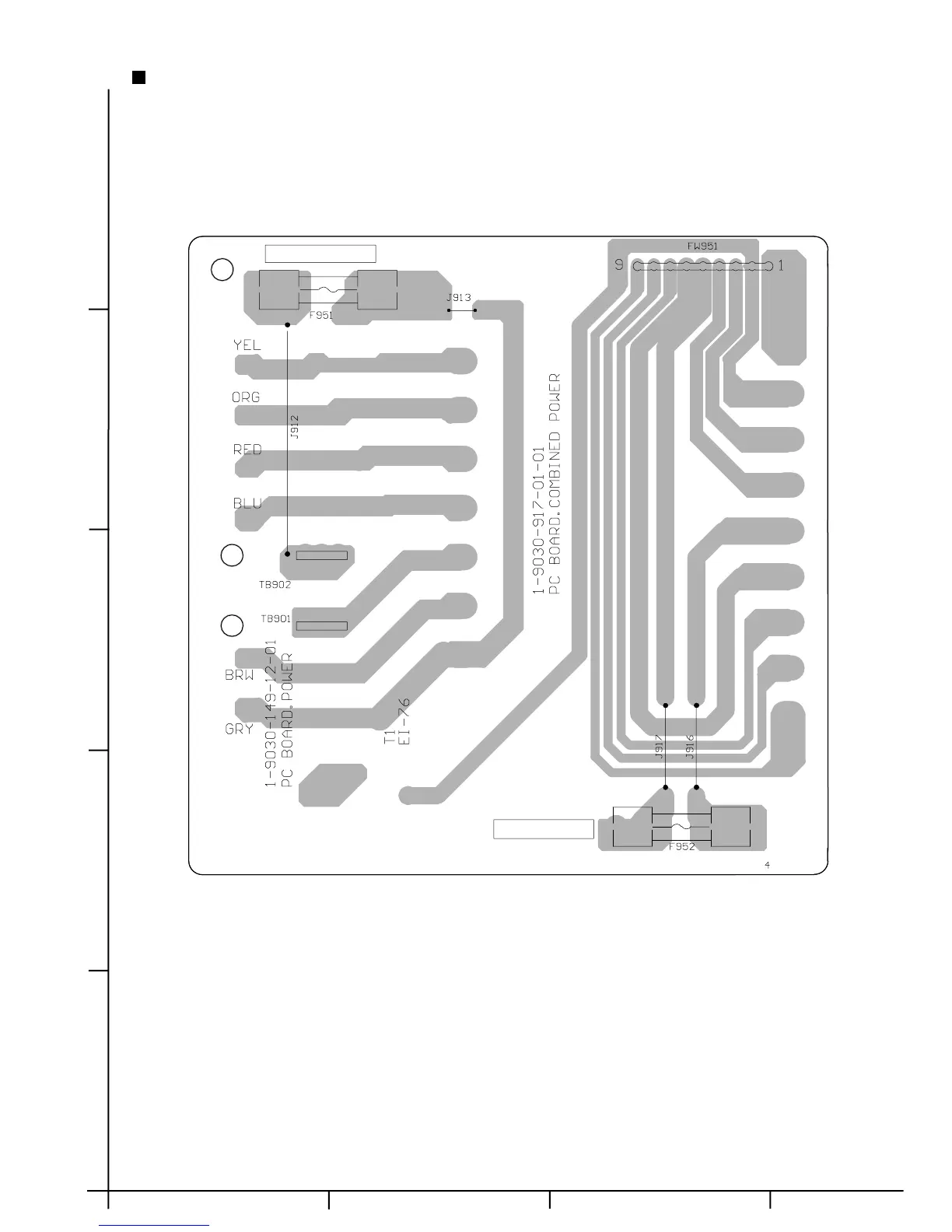

Power supply board
Note : This is a printed circuit board on a silk screen print.
This method enables the patterns of both surfaces of the printed circuit board to be shown
because of the transparency of the silk screen print.
2-11
