JVC RV-NB10BJ - Removing the Display Control Board

(No.MB519)1-13
3.1.8 Removing the display control board
(See Fig.12 to 14)
(1) Disconnect the connector wire connected to CN751
from
guitar and mic. jack board. (See Fig.12)
(2) Remove the four screws M attaching the display control
board. (See Fig.13)
(3) Disconnect the card wire connected to CN404
from CD
servo board. (See Fig.14)

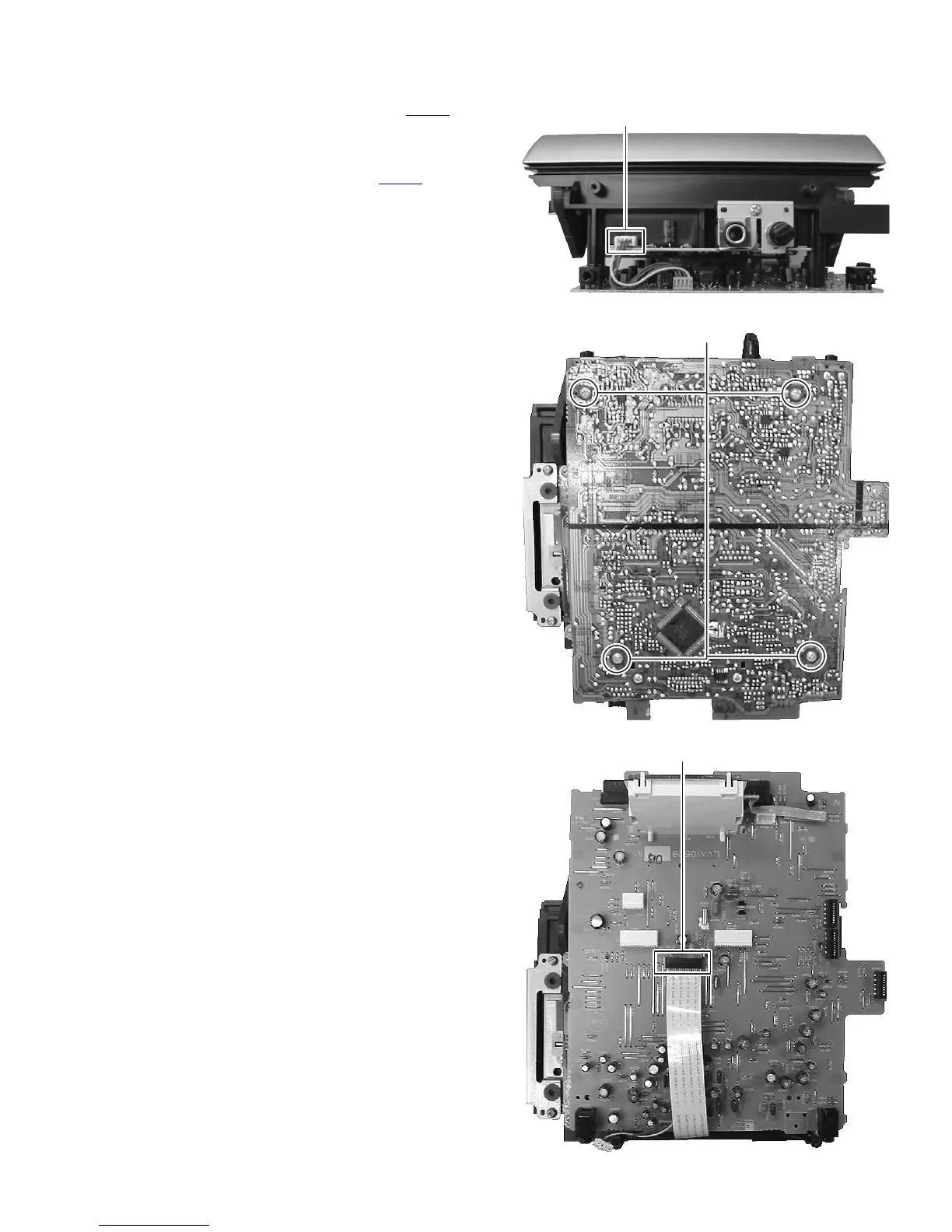

Fig.12
Fig.13
Fig.14
CN751
M
CN404
