3.3.6 Reassembling the playback/recording head
(See Figs.10 to 12)
(1) Reassemble the head mount.
a) To become direction of the left side, direction lever of
the head mount assembly is maintained by the hand.
(See Fig.11.)
b) Reassemble the playback/recording head from the
front of the head mount assembly to the position as
shown Fig.10, Fig11, and Fig.12. (m', n', p' and q', r'
are set to the hole of n and p and ditches of m, q and
r and thrusting out the head mount assembly is built
in.
(2) Fix the reversing azimuth screw. (See Fig.12.)
(3) Set the spring from the bottom side of the playback/record-
ing head. (See Fig.12.)
(4) Attach the flexible wire to the section k of the chassis base
assembly. (See Fig.12.)

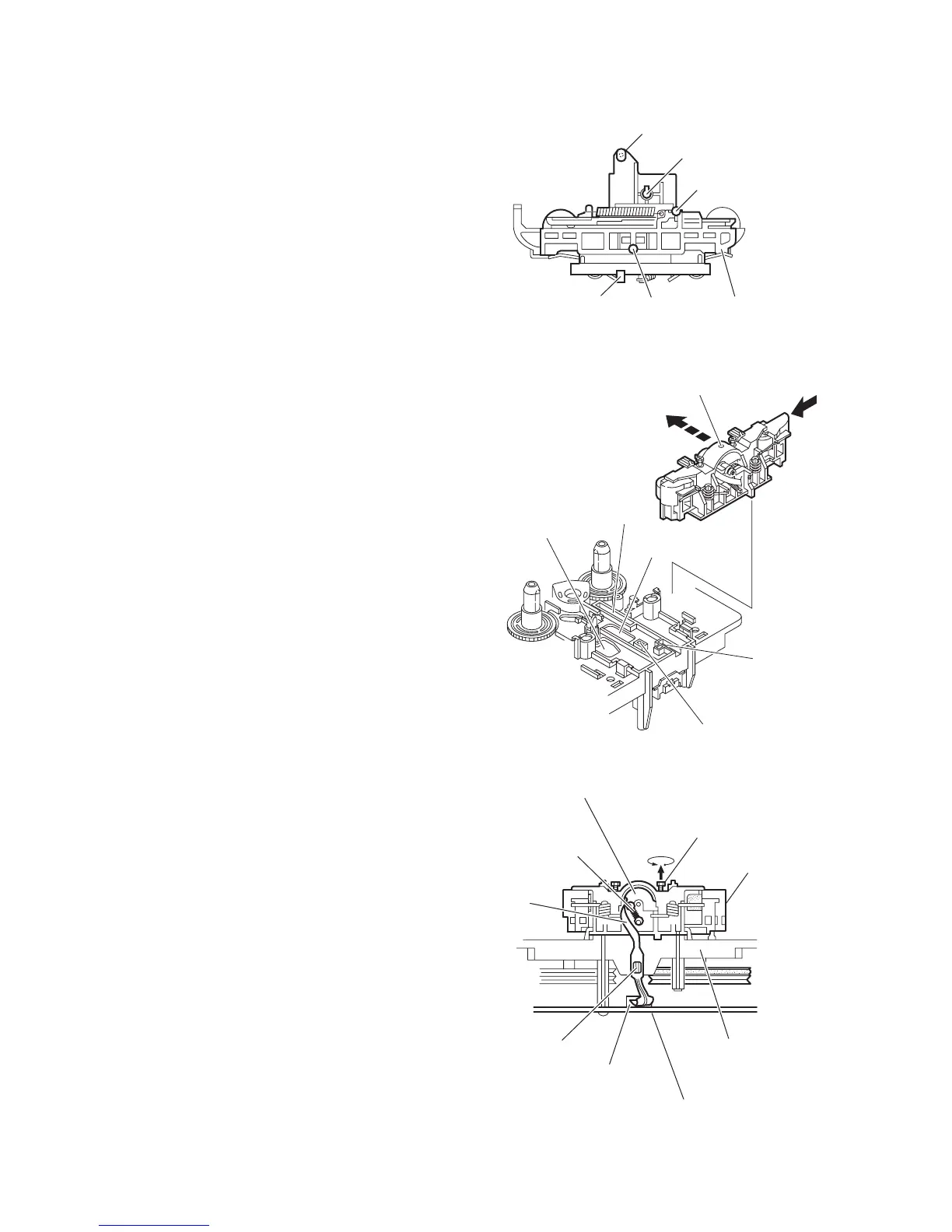

Fig.10
Fig.11
Fig.12
Detection leve
r'
p'
n'
m'
q'
m
n
r
q
p
Head mount
Assembly
Playback/recording head
Reversing azimuth screw
Flexible
wire
Spring
Head mount assembly
Head amplifier & mechanism control board
k
CN31
Chassis base assembly
To Next Page
