JVC RX-307TN User Manual

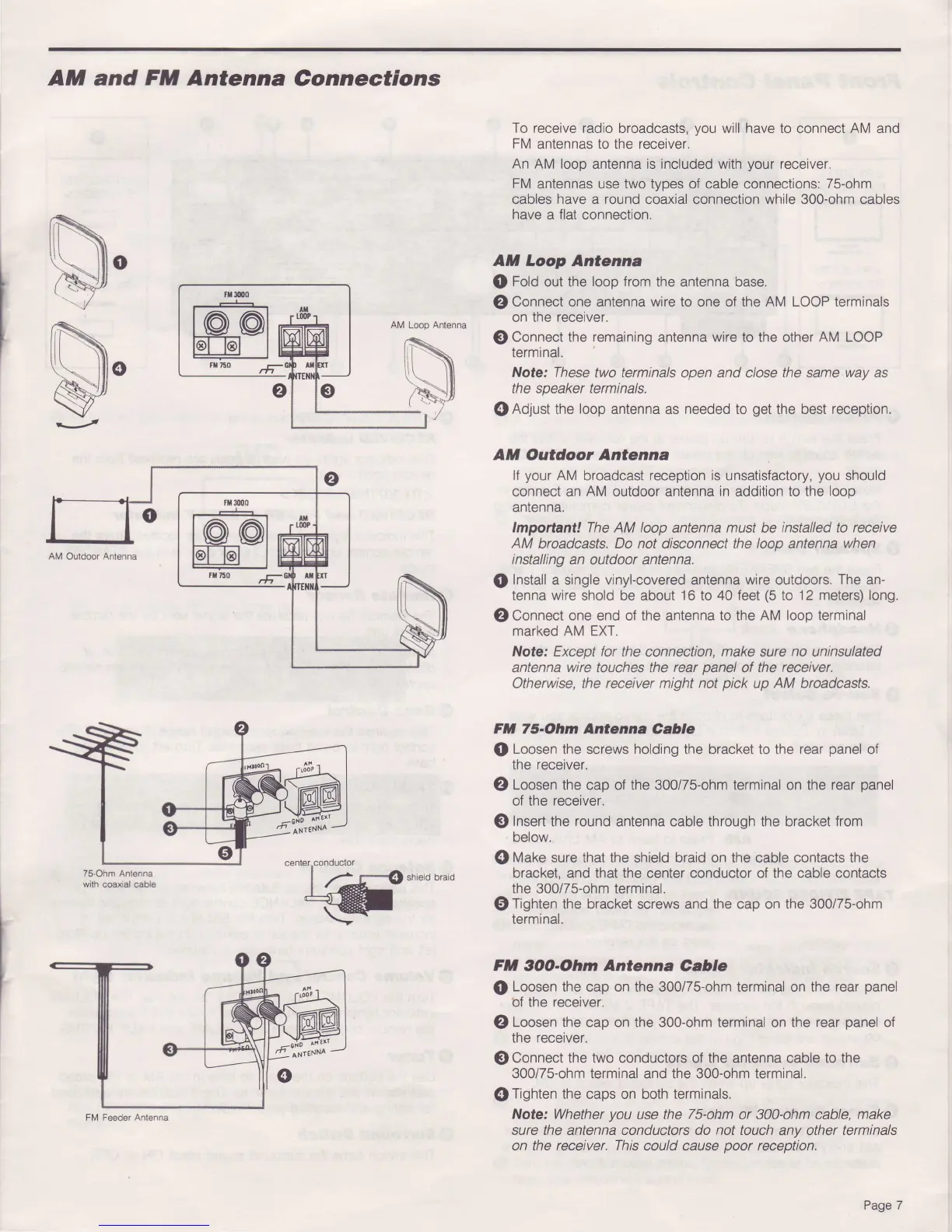

AM
and
FM Antenna
Connections
AM Loop Antenna
75-Ohm Antenna
with
codial cable
To receive radio broadcasts,
you
will have to connect AM
and
FM
antennas to the receiver.
An AM loop
antenna
is included with
your
receiver.
FM
antennas use two types of cable connections:
75-ohm
cables
have
a
round
coaxial connection while 300-ohm cables
have
a
flat
connection.
AH Loop Antenna
Q
Fold
out the loop
from
the antenna base.
@
Connect one antenna
wire to
one of
the AM LOOP terminals
on the receiver.
@
Connect the
remaining
antenna wire to the other AM LOOP
terminal.
Note: These two terminals
open
and
close
the
same
way as
the
speaker
terminals.
O
Adjust
the
loop
antenna as
needed
to
get
the best reception.
AM Outdoor Antenna
lf
your
AM broadcast reception
is
unsatisfactory,
you
should
connect an
AM
outdoor antenna
in
addition
to the
looo
antenna.
lmportant! The
AM
loop
antenna
must
be
installed to receive
AM
broadcasts.
Do not
disconnect
the loop antenna when
installing
an outdoor antenna.
Q
Install
a single
vinyl-covered
antenna
wire
outdoors.
The an-
tenna wire shold be about 16 to
40 feet
(5
to
12 meters) long.
@
Connect one end of the antenna
to the AM loop terminal
marked AM EXT.
Note: Except for the
connection,
make
sure
no uninsulated
antenna
wire
touches the
rear
panel
of the
receiver.
Otherwise, the
receiver
might
not
pick
up AM broadcasts.
F|t 75.Ohm Antenne
Cable
Q
Loosen
the screws
holding
the bracket to the
rear
panel
of
the receiver.
O
Loosen the
cap of
the 300/75-ohm
terminal on
the rear
panel
of the receiver.
@
Insert
the round antenna cable through the bracket from
below.
@
Vake
sure that the shield braid on the cable contacts the
bracket. and that the
center
conductor
of the cable contacts
the 300/75-ohm terminal.
@
lgfrten
the bracket screws and the cap on the 300/75-ohm
terminal.
Ft
?OO-Ohm
Antenna
Cable
Q
Loosen the cap on the 300/75-ohm terminal on the rear
panel
bf the receiver.
O
Loosen the cap on the 300-ohm terminal
on
the rear
panel
of
the receiver.
@
Connect the two conductors of the
antenna cable
to the
300/75-ohm terminal and the 300-ohm terminal.
@
Tighten
the caps on both terminals.
Note: Whether
you
use the
75-ohm
or 300-ohm cable, make
sure the antenna conductors do
not
touch any other terminals
on the receiver. This could cause
poor
reception.
Fl\,4 Feeder Antenna
Page 7
