AM Antenna Connections
Turn the loop until you have
the best reception.
ANTENNA
AM
EXT
AM
LOOP
FM 75
COAXIAL
2
3
1
Notes:
• If the AM loop antenna wire is covered with vinyl,
remove the vinyl by twisting it as shown in the
diagram.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could cause poor
reception.
• If reception is poor, connect an outdoor single vinyl-covered wire
(not supplied) to the AM EXT terminal. (Keep the AM loop antenna
connected.)
Connecting the Speakers
You can connect the following speakers:
• Two pairs of front speakers to produce normal stereo sound.
• One pair of surround speakers to enjoy the surround effect.
• One surround back speaker or one pair of surround back speakers
to enjoy 6.1-channel sound reproduction.
• One center speaker to produce more effective surround effect (to
emphasize human voices).
• One subwoofer to enhance the bass.
IMPORTANT:
After connecting the speakers listed above, set the speaker
setting information properly to obtain the best possible
Surround and DSP effect. For details, see page 22.
CAUTION:
Use speakers with the SPEAKER IMPEDANCE indicated by the
speaker terminals.

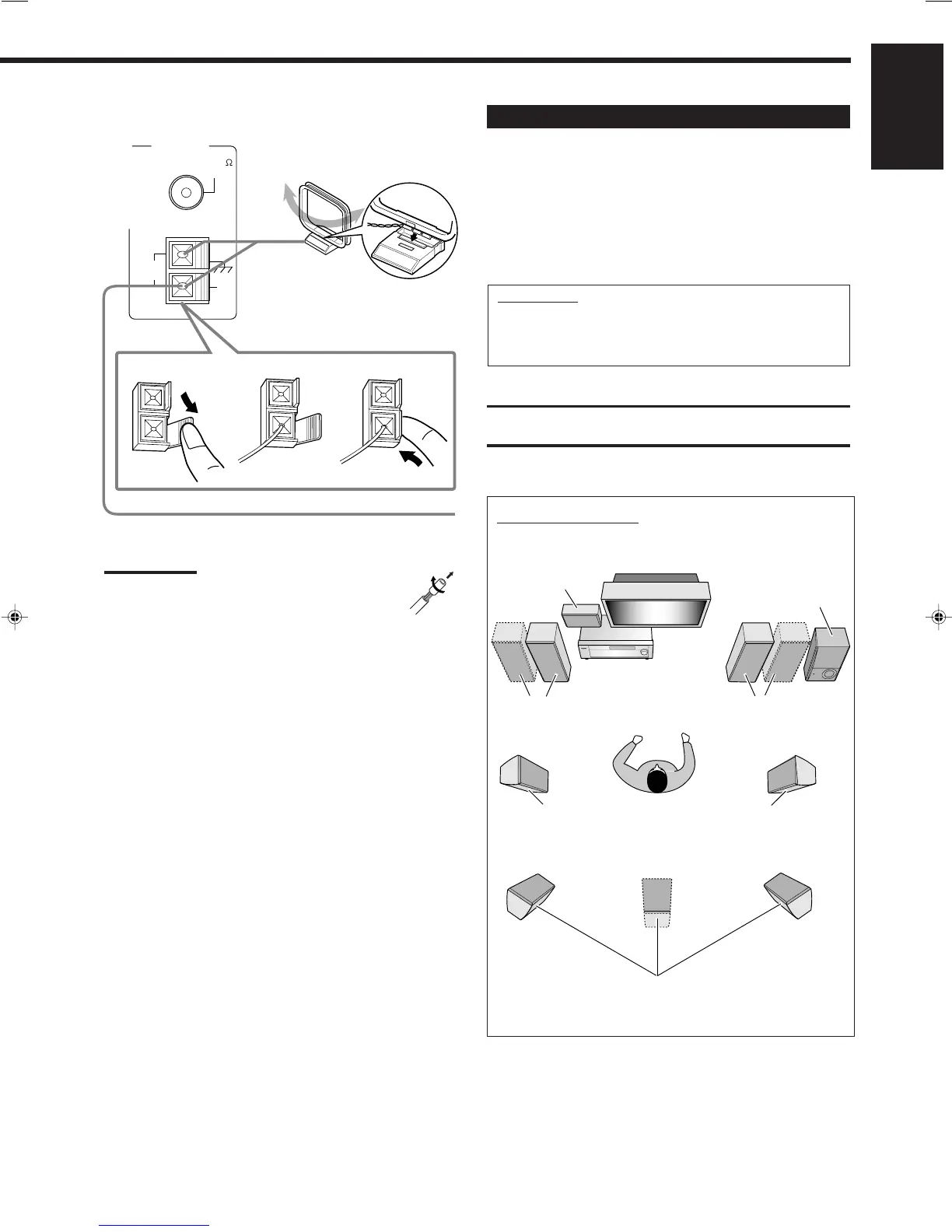

Typical speaker layout
AM Loop Antenna
(supplied)
Snap the tabs on the loop into the
slots of the base to assemble the
AM loop.
Outdoor single vinyl-covered wire (not supplied)
Left front speaker(s)
Right front speaker(s)
Left surround speakerLeft surround speaker
Right surround speaker
Subwoofer
Center speaker
Surround back speaker(s)
EN01-15.RX-8020V[C]_f 02.4.3, 0:24 PM6
