JVC RX-8040B

(No.MB303)1-11
3.12 Removing the voltage selector board
(See Fig.14 and 15)
• Prior to performing the following procedures, remove the top
cover.
(1) From the back side of the main body, remove the two
screws S attaching the voltage board. (See Fig.14)
(2) Remove the solders from the soldered sections b on the
power transformer board 2 and remove the wires of the
voltage selector board. (See Fig.15)
(3) Take out the voltage selector board.

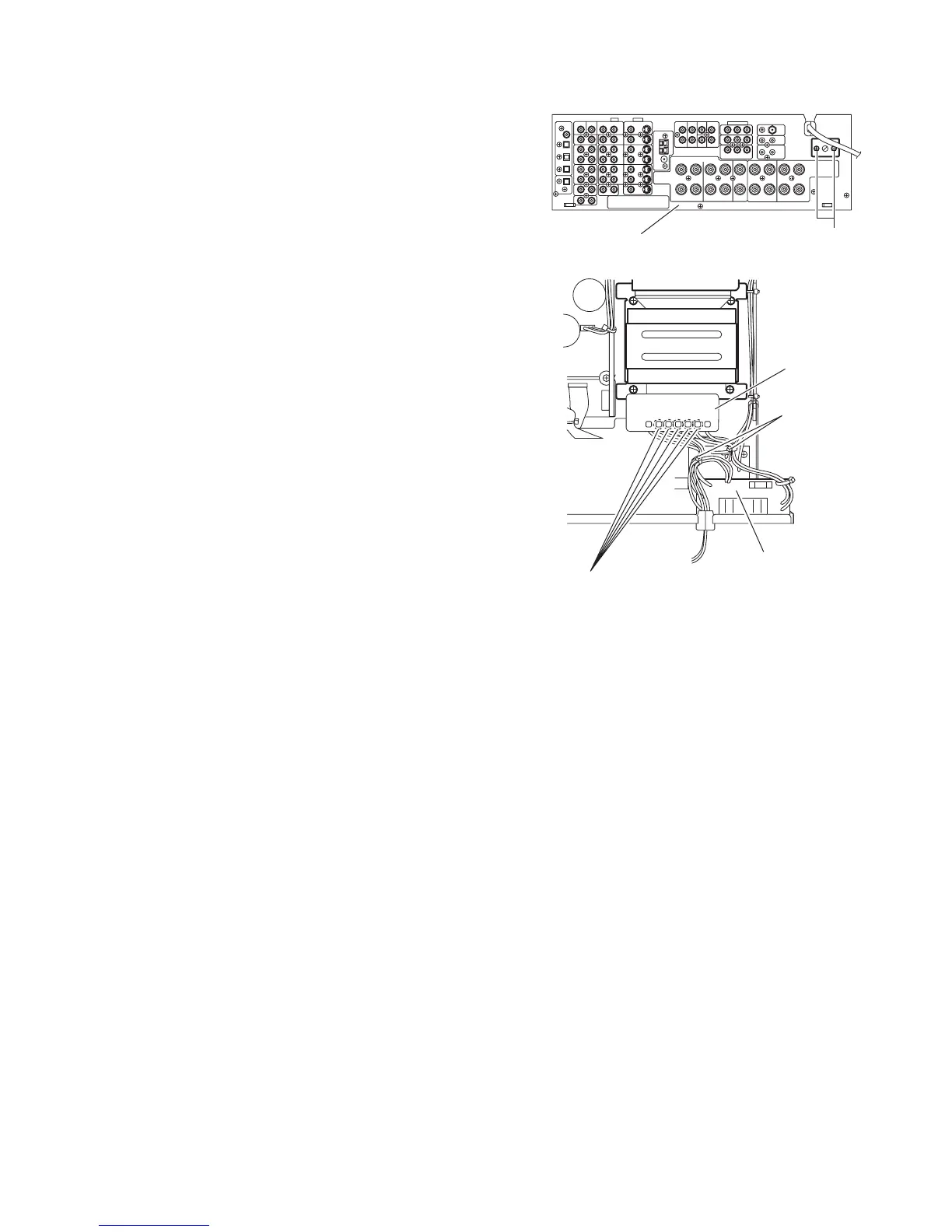

Fig.14
Fig.15
Rear panel
S
Power
transforme
r
board 2
Soldered sections b
Voltage
selector
board
Tie bands
