3.13 Removing the power transformer
(See Fig.16)
• Prior to performing the following procedures, remove the top
cover.
(1) From the top side of the main body, remove the tie band
bundling the wires.
(2) Disconnect the wire from the connectors (CN55
and
CN811
) on the power transformer board 1.
(3) Remove the solders from the soldered sections c on the
power transformer board 2.
(4) Remove the four screws T attaching the power transform-
er.
3.14 Removing the power/fuse board
(See Fig.16)
• Prior to performing the following procedures, remove the top
cover.
(1) From the back side and top side of the main body, remove
the tie band from the bundling the wires and the power
cord.
(2) Remove the screw U and screw V attaching the power/fuse
board.
(3) Remove the solders from the soldered sections d attaching
the power cord.
(4) From the reverse side of the power/fuse board, remove the
solders from the soldered sections e attaching the wires.

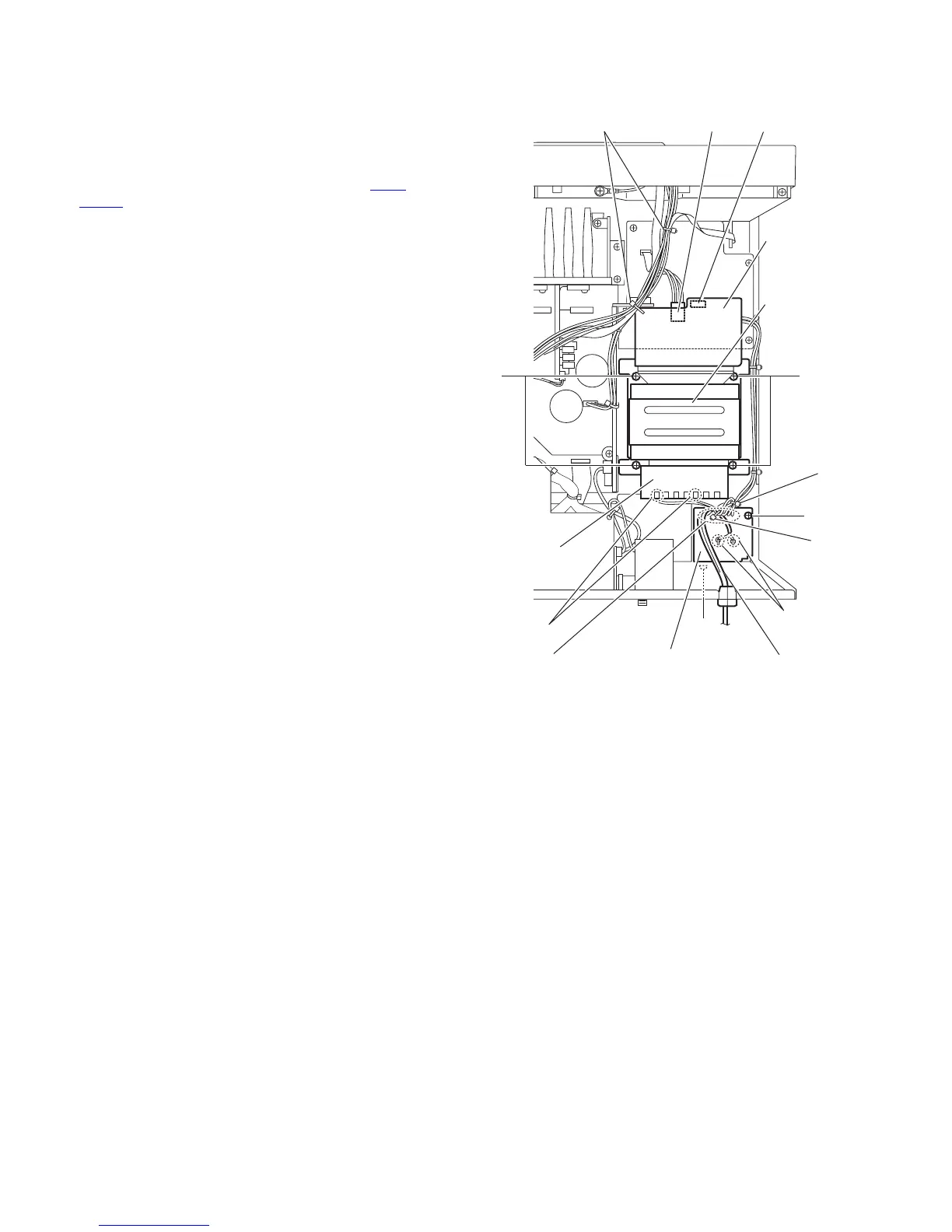

Fig.16
Tie band
Tie band
Tie band
CN811 CN55
Power
transforme
r
board 1
Power
transformer
board 2
Soldered
sections c
TT
Power
transforme
r
U
V
Power/fuse board
Soldered
sections d
Power cord
Soldered sections e
