Multi-room Operations
Before operating this receiver any further, be familiar with this Multi-room function.
This function enables you to listen to different sources in two different places (we call these two places “main room”
and “sub-room”) by using this receiver only.
This section explains only required speaker connections, the concept, and basic operations of the Multi-room function.
For more detailed operations, see the respective pages in this manual.
Left speaker
Right speaker
MAIN ROOM SPEAKERS
Left speaker
Right speaker
SUB ROOM SPEAKERS
Merits:
• This connection DOES NOT require a power amplifier.
Demerits:
• When the sub-room speakers are activated, this connection
DOES NOT allow you to use the Surround/DSP modes using
the center/rear speakers (see page 37) and the DVD MULTI
playback mode (see page 49) for the main room sources.

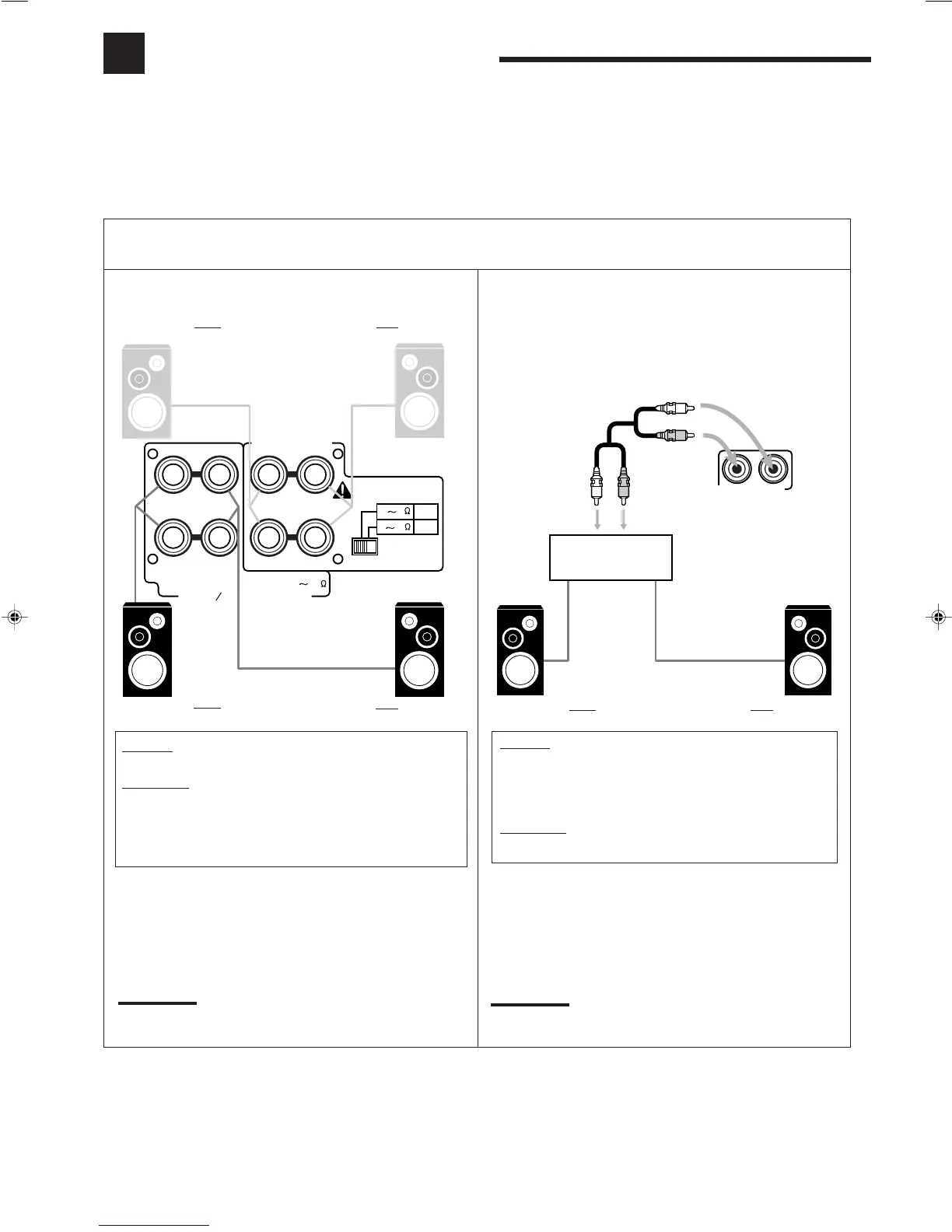

Required Speaker Connections for the Sub-room
Connection Å
See also “Connecting the front speakers” on page 6.
FRONT 1 SPEAKERS
SPEAKER LOAD SELECTOR
RIGHT LEFT RIGHT LEFT
+
–
+
–
CAUTION : SPEAKER IMPEDANCE
CAUTION :
SPEAKER IMPEDANCE
FRONT 2 SUB ROOM SPEAKERS
816
4 6 LOW
8 16 HIGH
Merits:
• This connection DOES allow you to use the Surround/DSP
mode using the center/rear speakers (see page 37) and the
DVD MULTI playback mode (see page 49) for the main
room sources.
Demerits:
• This connection DOES require another amplifier.
Connection ı
Connect the input jacks of another amplifier to the SUB ROOM
PRE OUT jacks on the rear panel, using a cable with RCA pin
plugs (not supplied).
To use the front speakers connected to the FRONT 2/SUB
ROOM SPEAKERS terminals for the sub-room
See “Setting the Front Speakers Either for the Main Room or
Sub-room” on page 27, and “Activating the Sub-room Front
Speakers” on page 26.
Note:
Using long speaker signal cables will deteriorate the signals, and
will result in poor sound quality.
To use the front speakers in the sub-room
• No settings are required on this receiver.
• Turn on and operate the other amplifier connected to the SUB
ROOM PRE OUT jacks correctly.
Note:
Using long cables will deteriorate the signals, and will result in poor
sound quality.
(right) (left)
SUB ROOM PRE OUT
Another amplifier
Left speaker
Right speaker
SUB ROOM SPEAKERS
