NOTES
• If the AM (MW) loop antenna wire is covered with
vinyl, remove the vinyl while twisting it as shown
on the right.
• Make sure the antenna conductors do not touch
any other terminals, connecting cords and power
cord. This could cause poor reception.

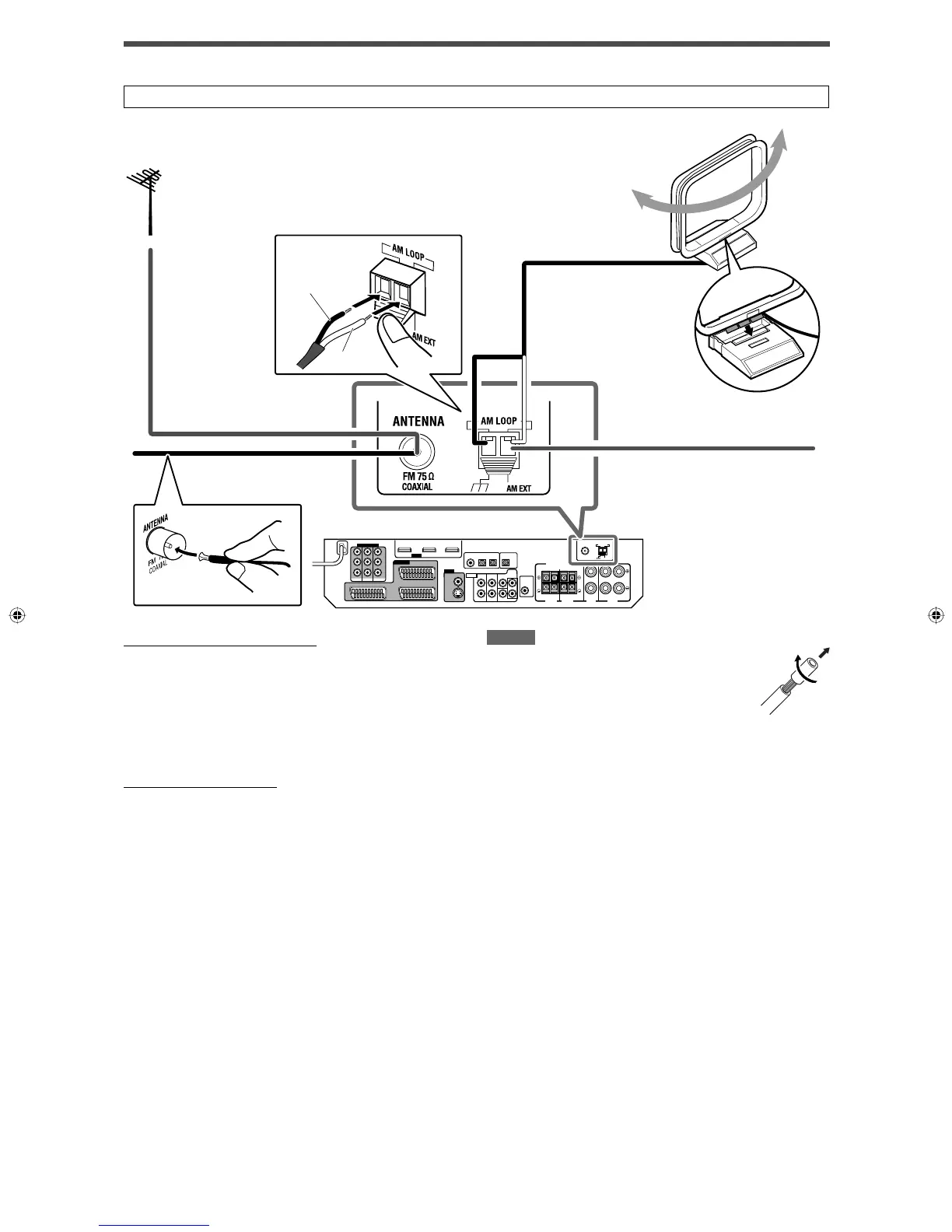

Connecting the FM and AM (MW) antennas
Do not connect the AC power cord until all other connections have been made.
AM (MW) antenna connection
Connect the AM (MW) loop antenna (supplied) to the AM
LOOP terminals: Connect the white cord to the AM EXT
terminal, and connect the black cord to the H terminal.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. Keep
the AM (MW) loop antenna connected.
FM antenna connection
Connect the supplied FM antenna to the FM 75 Ω COAXIAL
terminal as a temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna
(not supplied). Before attaching a 75 Ω coaxial cable with a
connector (IEC or DIN 45325), disconnect the supplied FM
antenna.
AM (MW) loop antenna (supplied)
If FM reception is poor, connect an
outdoor FM antenna (not supplied).
Snap the tabs on the loop
into the slots of the base
to assemble the AM (MW)
loop antenna.
If AM (MW) reception is poor, connect
an outdoor single vinyl-covered wire
(not supplied).
FM antenna (supplied)
Black
White
7
