Parts identification

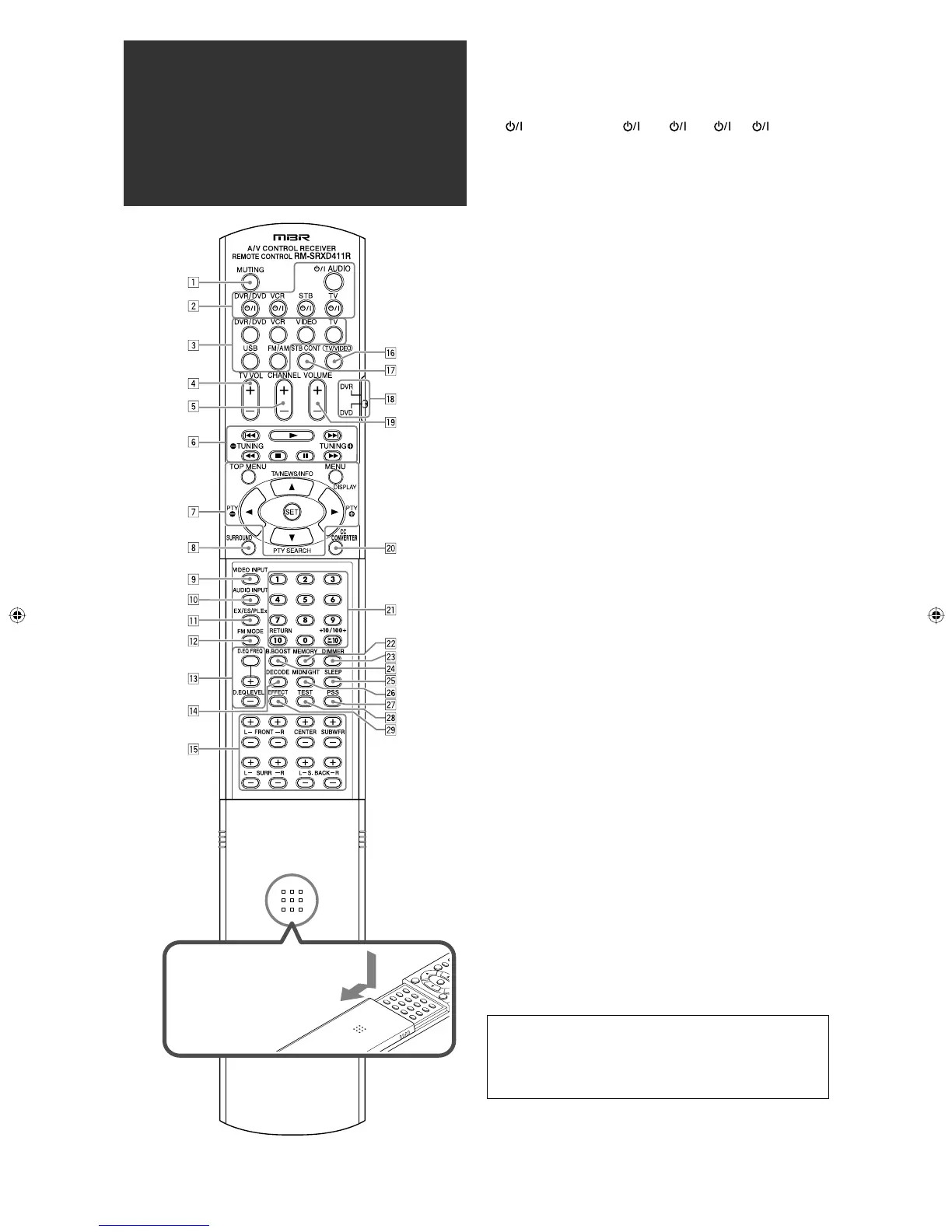

7 Remote control
See pages in parentheses for details.
1
MUTING button (22)
2
Standby/on buttons (16, 20, 45 – 49)
AUDIO, DVR/DVD , VCR , STB , TV
3
Source selecting buttons (20, 24, 45 – 49)
DVR/DVD, VCR, VIDEO, TV, USB, FM/AM
4
TV VOL (volume) +/– button (45, 47)
5
CHANNEL +/– button (45 – 49)
6
• Operating buttons for video components (45 – 49)
4, 3, ¢, 1, 7, 8, ¡
• Operating buttons for tuner (24)
( TUNING, TUNING 9
7
• Operating buttons for DVD recorder or DVD player* (46,
49)
TOP MENU, MENU, cursor buttons (3, 2, 5, ∞), SET
• Operating buttons for Radio Data System (26, 28)
TA/NEWS/INFO, DISPLAY, PTY 9, PTY (, PTY SEARCH
8
SURROUND button (44)
9
VIDEO INPUT button (21)
p
AUDIO INPUT button (21)
q
EX/ES/PLIIx button (31)
w
FM MODE button (25)
e
Adjusting buttons for Digital Equalizer (36)
D.EQ FREQ, D.EQ LEVEL +/–
r
DECODE button (22)
t
Adjusting buttons for speaker and subwoofer output levels
(36)
FRONT L +/–, FRONT R +/–, CENTER +/–, SUBWFR +/–, SURR
L +/–, SURR R +/–, S.BACK L +/–, S.BACK R +/–
y
TV/VIDEO button (45, 47)
u
STB CONT (control) button (49)
i
Mode selector (46, 49)
o
VOLUME +/– button (20)
;
CC CONVERTER button (23)
a
• Numeric buttons (25, 45 – 49)
1 – 10, 0, h10, +10/100+
• RETURN button (45)
s
MEMORY button (24)
d
DIMMER button (22)
f
B (bass). BOOST button (37)
g
SLEEP button (23)
h
MIDNIGHT button (33)
j
PSS (Precise Surround Setup) button (17)
k
TEST button (18, 36)
l
EFFECT button (37)
* These buttons can be used for operating a DVD recorder
(JVC products only) or DVD player, with the mode selector
set to “DVR” or “DVD” (see page 46).
If these buttons do not function normally, use the remote
control supplied with your DVD recorder or DVD player.
Refer also to the manual supplied with the DVD recorder or
DVD player for details.
• When operating a DVD recorder (for JVC products
only), set the mode selector (i) to “DVR.”
• When operating a DVD player, set the mode selector
(i) to “DVD.”
To open the cover of the
remote control, push here
then slide downward.
3
01-05_Introduction.indd 301-05_Introduction.indd 3 06.6.9 2:23:07 PM06.6.9 2:23:07 PM
