See pages in parentheses for details.

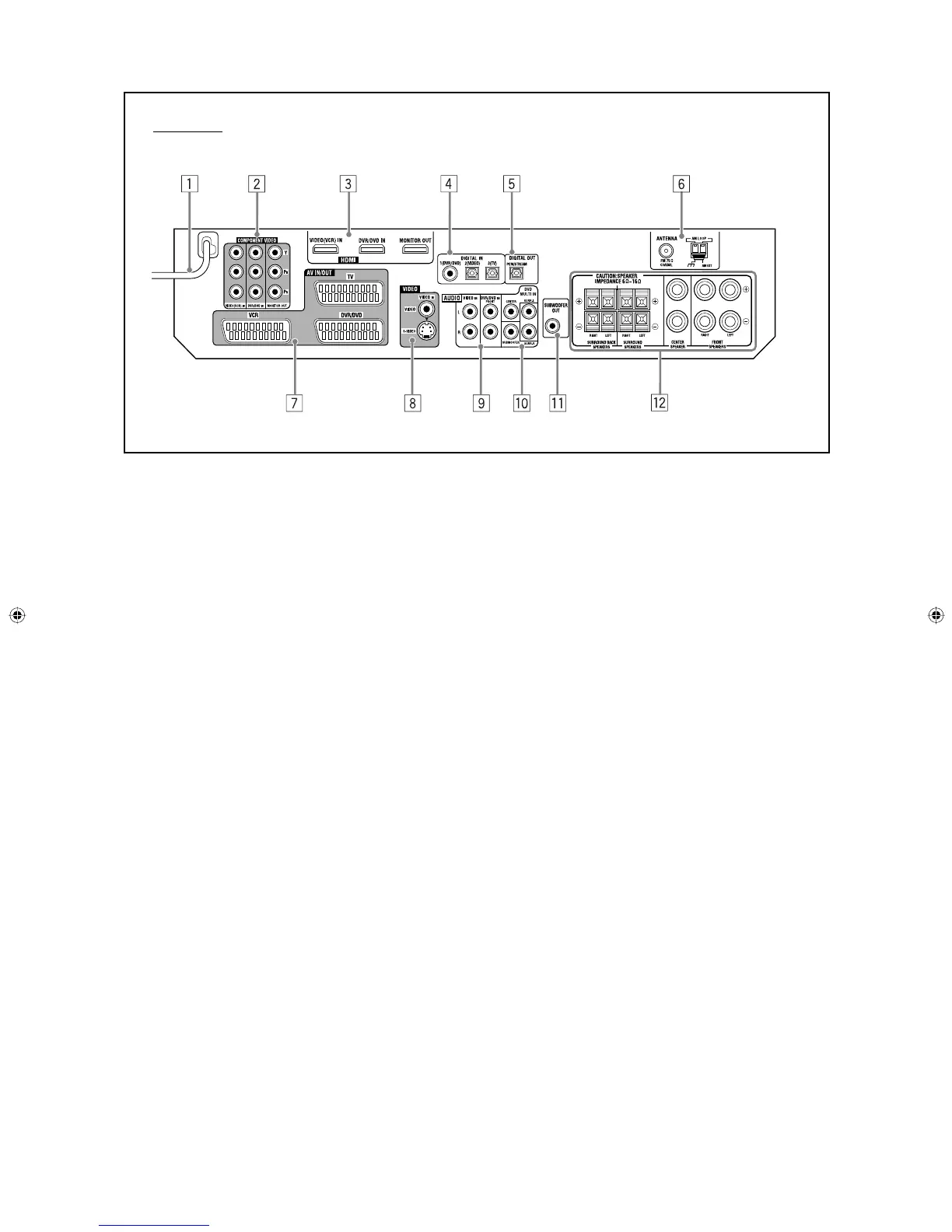

Rear Panel
1
Power cord (14)
2
COMPONENT VIDEO (Y, PB, PR) jacks (11 – 13)
VIDEO(VCR) IN, DVR/DVD IN, MONITOR OUT
3
HDMI terminals (9)
VIDEO(VCR) IN, DVR/DVD IN, MONITOR OUT
4
DIGITAL IN terminals (14)
• Coaxial: 1(DVR/DVD)
• Optical: 2(VIDEO)
• Optical: 3(TV)
5
DIGITAL OUT terminal (14)
6
ANTENNA terminals (7)
7
AV IN/OUT terminals (10)
TV, VCR, DVR/DVD
8
VIDEO jacks (13)
VIDEO (composite video), S-VIDEO
9
AUDIO jacks (11 – 13)
VIDEO IN, DVR/DVD IN
p
DVD MULTI IN jacks (12)
CENTER, SUBWOOFER, SURR–L, SURR–R
q
SUBWOOFER OUT jack (8)
w
Speaker terminals (8)
SURROUND BACK SPEAKERS, SURROUND SPEAKERS,
CENTER SPEAKER, FRONT SPEAKERS
5
To Next Page
