(3) ® (D

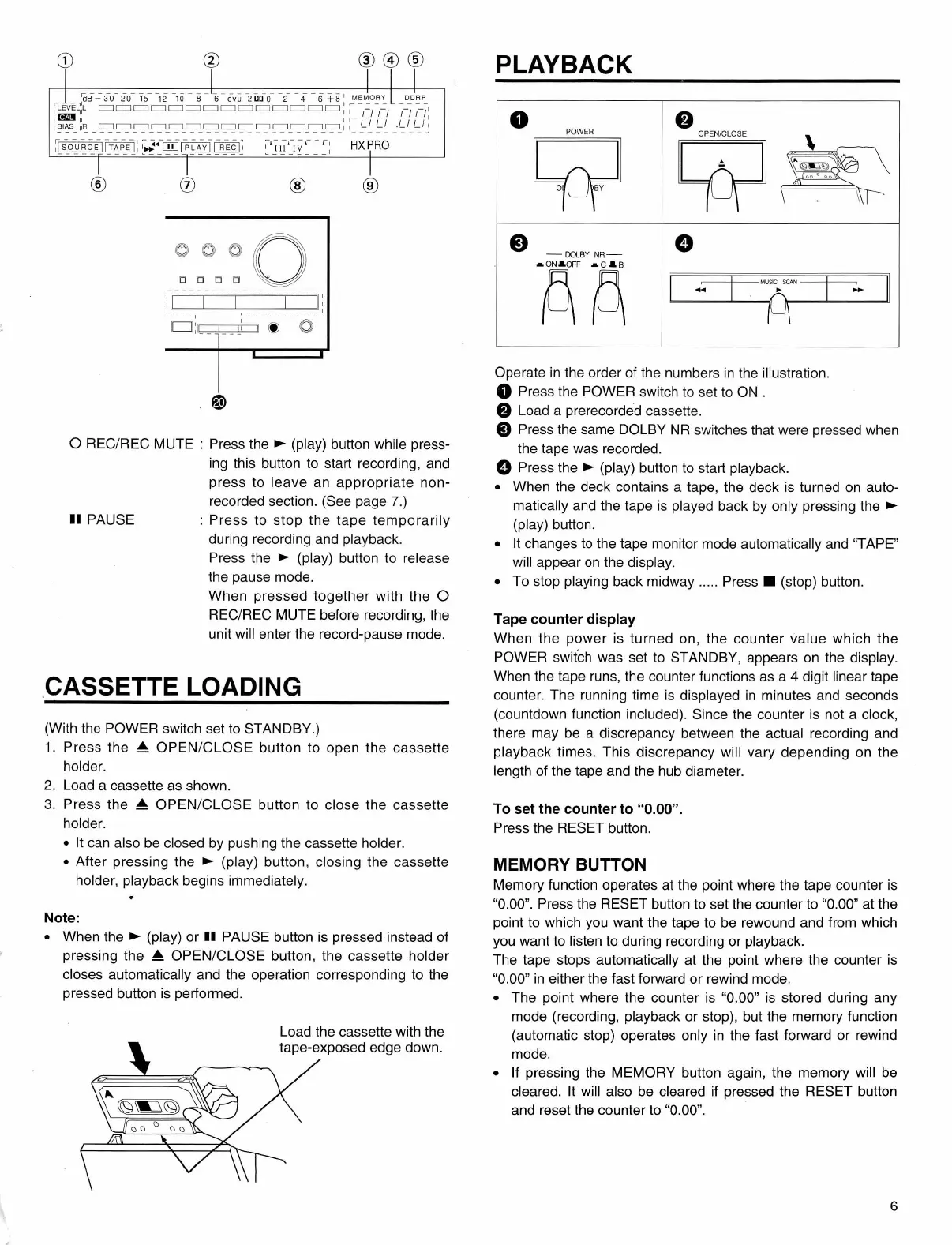

PLAYBACK
J _ dB-30 20 15 12 10
fLEVEL||L IZ=II=^I=]1ZZ1IZ=IC
3 6 ovu 2Dn 0 2 4 6 +8
: 1=11=11=1 cn 1=] 1=1 czi □
I BIAS iiH = = = = = = = = = = = = = =
Ll O O o\
LI LI .LI LI I
Tn^i i 'lii'iv' HXPRO
n n o □
O REC/REC MUTE : Press the ► (play) button while press
ing this button to start recording, and
press to leave an appropriate non-
recorded section. (See page 7.)
II PAUSE : Press to stop the tape temporarily
during recording and playback.
Press the ► (play) button to release
the pause mode.
When pressed together with the O
REC/REC MUTE before recording, the
unit will enter the record-pause mode.
CASSETTE LOADING
(With the POWER switch set to STANDBY.)
1. Press the ^ OPEN/CLOSE button to open the cassette
holder.
2. Load a cassette as shown.
3. Press the A OPEN/CLOSE button to close the cassette
holder.
• It can also be closed by pushing the cassette holder.
• After pressing the ► (play) button, closing the cassette
holder, playback begins immediately.
¥
Note:
• When the ► (play) or II PAUSE button is pressed instead of
pressing the A OPEN/CLOSE button, the cassette holder
closes automatically and the operation corresponding to the
pressed button is performed.
Load the cassette with the
tape-exposed edge down.
DOLBY NR
^ONJiGFF aCAB
Operate in the order of the numbers in the illustration.
O Press the POWER switch to set to ON .
0 Load a prerecorded cassette.
0 Press the same DOLBY NR switches that were pressed when
the tape was recorded.
O Press the ► (play) button to start playback.
• When the deck contains a tape, the deck is turned on auto
matically and the tape is played back by only pressing the ►
(play) button.
• It changes to the tape monitor mode automatically and 'TAPE"
will appear on the display.
• To stop playing back midway Press ■ (stop) button.
Tape counter display
When the power is turned on, the counter value which the
POWER switch was set to STANDBY, appears on the display.
When the tape runs, the counter functions as a 4 digit linear tape
counter. The running time is displayed in minutes and seconds
(countdown function included). Since the counter is not a clock,
there may be a discrepancy between the actual recording and
playback times. This discrepancy will vary depending on the
length of the tape and the hub diameter.
To set the counter to "0.00".
Press the RESET button.
MEMORY BUTTON
Memory function operates at the point where the tape counter is
"0.00". Press the RESET button to set the counter to "0.00" at the
point to which you want the tape to be rewound and from which
you want to listen to during recording or playback.
The tape stops automatically at the point where the counter is
"0.00" in either the fast forward or rewind mode.
• The point where the counter is "0.00" is stored during any
mode (recording, playback or stop), but the memory function
(automatic stop) operates only in the fast forward or rewind
mode.
• If pressing the MEMORY button again, the memory will be
cleared. It will also be cleared if pressed the RESET button
and reset the counter to "0.00".
