Connections

56:/)'2


)5'>/'2

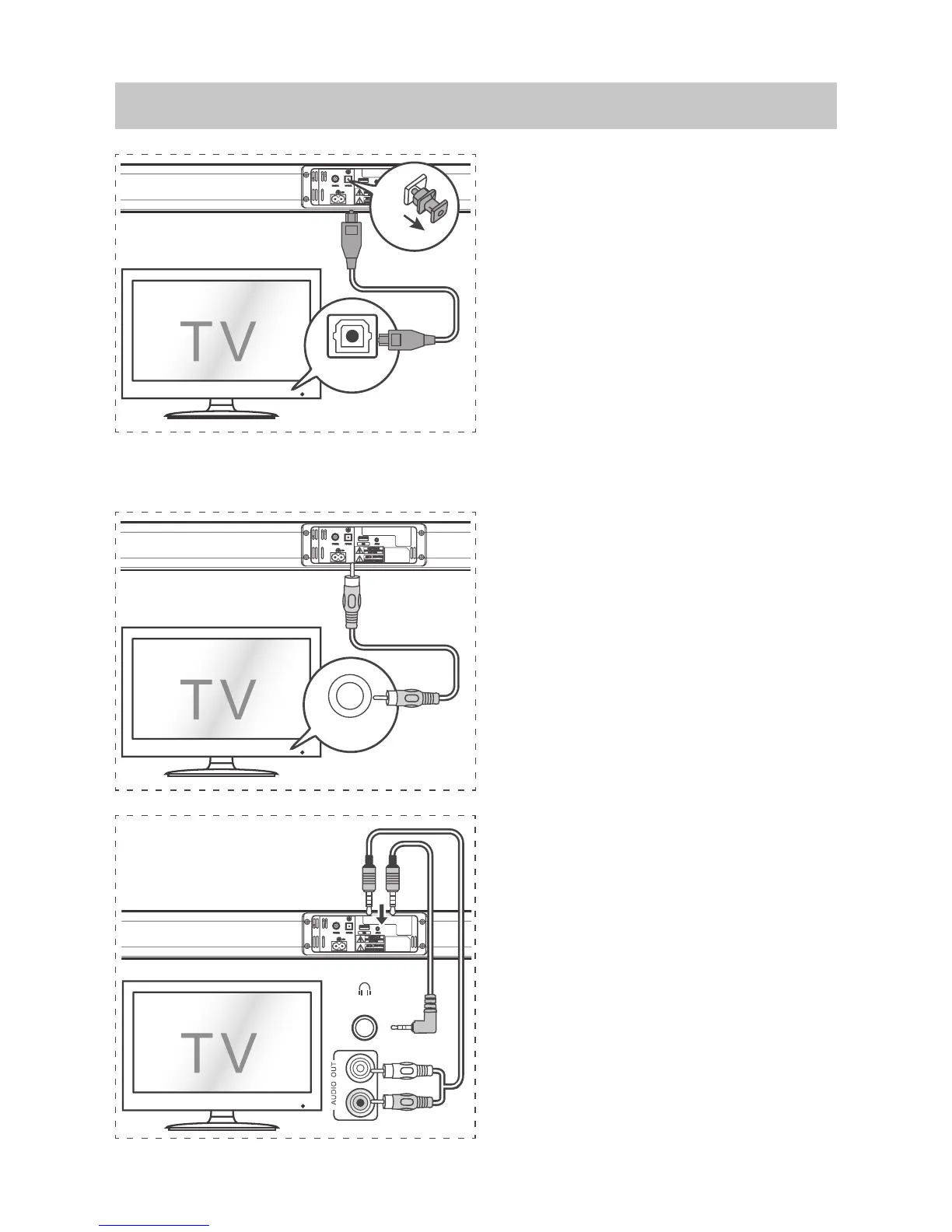

Use the OPTICAL Socket
• Remove the protective cap of the OPTICAL
socket, then connect an OPTICAL cable (not
included) to the TV’s OPTICAL OUT socket
and the OPTICAL socket on the unit.
Use the COAXIAL Socket
• You also can use the COAXIAL cable (not
included) to connect the TV's COAXIAL OUT
socket and COAXIAL socket on the unit.
• Tip: While in OPTICAL/COAXIAL mode,
if there’s no sound output from the unit
and the OPTICAL/COAXIAL lights flashes
quickly, you may need to activate PCM
or
Dolby Digital
Signal output on your source
device (eg. TV, DVD or Blu-ray player).
Use the AUX Socket
A. Use a RCA to 3.5mm audio cable (included)
to connect the TV’s audio output sockets to
the AUX 1 socket on the unit.
B. Use a 3.5mm to 3.5mm audio cable
(included) to connect the TV’s or external
audio device headphone socket to the AUX
1 socket on the unit.
.KGJVNUTK

JVC TH-M337B Specifications

Power

sound bar power supply	AC120V~ 60Hz
sound bar power consumption	30 W
subwoofer power requirements	AC120V~ 60Hz
subwoofer power consumption	30 W

Audio

sound bar output power	30 W x 2
sound bar audio input sensitivity	700 mV
sound bar frequency response	120Hz - 20KHz
subwoofer output power	60 W
subwoofer frequency response	40 Hz - 120 Hz

Electrical Characteristics

sound bar speaker impedance	8 Ω x 2
subwoofer impedance	4 Ω

Bluetooth

bluetooth version	V 4.2
bluetooth maximum power transmitted	<20 dbm
bluetooth frequency bands	2402 MHz ~ 2480 MHz

Wireless Subwoofer

2.4g hz wireless subwoofer maximum power transmitted	<10 dbm
2.4g hz wireless subwoofer frequency bands	2400 MHz ~ 2483 MHz

Remote Control

remote control distance	6 m
remote control angle	30°
remote control battery type	CR2025

Dimensions and Weight

sound bar unit dimension	952 x 63 x 65.7 mm
subwoofer dimension	465 x 255 x 95 mm
